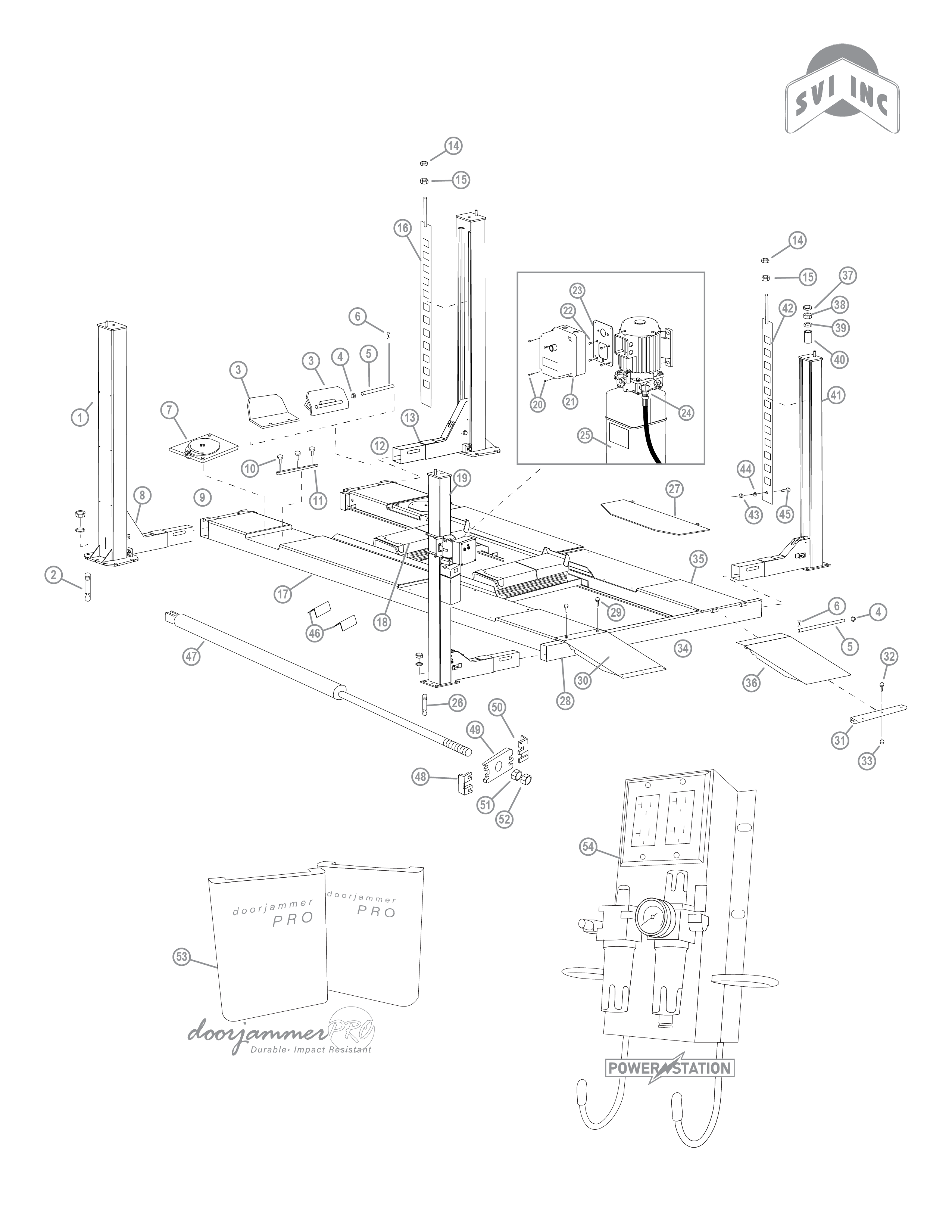

Main Lift
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 1- |  |
BH-7530-86 | FC5705 | Power Unit Column |
| 3- |  |
BH-7524-66 | FC342 | Wheel Stop |
| 4- |  |
BH-7525-70 | FC5179-4 | Push Nut Fastener (TRW #PW625019 5/8") |
| 5- |  |
BH-7517-78 | FC134-99 | Hinge Pin |
| 7a- |  |
BH-7505-59 | FA5157-1 | Carbon Steel Rebuild Kit(Front) |
| 11- |  |
BH-7517-70 | FC134-57 | Turntable Guide Bar (Standard) |
| 14- |  |
BH-7520-53 | 40760 | Hex Nut (3/4"-10NC) |
| 15- |  |
BH-7520-54 | 40759 | Hex Jam Nut (3/4"-10NC) |
| 31- |  |
BH-7508-78 | FC134-33 | Ramp Chock Slide |
| 32- |  |
BH-7232-71 | 40050 | Socket Low Torx Recess Undercut Sholder Machine Screw (#10-24NC x 3/4") |
| 36- |  |
BH-7508-68 | FC134-12 | Ramp Chock Assembly |
| 37- |  |
BH-7520-57 | 40766 | Hex Jam Nut (7/8"-9NC) |
| 38- |  |
BH-7520-56 | 40765 | Hex Nut (7/8"-9NC) |
| 42- |  |
BH-7530-74 | FC5704-3 | Rear Latch Bar |
| 46- |  |
BH-7508-89 | FC320 | Triangular Wheel Chock |
| 50- |  |
BH-7501-89 | FC543-2 | Cable Retaining Bar (Right) |
| 53- |  |
BH-7077-02-2S | SVI Exclusive | SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair) |
| 53- |  |
BH-7077-02-2 | SVI Exclusive | SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair) |
| 54- |  |
BH-7069-K | SVI Exclusive | Power Station (for 4-Post Lift) |
| 6- | Call For Details | — | Cotter Pin (5/32" x 1" Length) | |
| 7- | Call For Details | — | Turning Radius Gauge Assembly (Standard) | |
| 7- | Call For Details | — | Turning Radius Gauge Assembly (Stainless Steel) | |
| 7b- |
BA-1590-55 (Call For Details) |
FA5153-2 | Stainless Steel Rebuild Kit(Front) | |
| 8- | Call For Details | — | Yoke Weldment (Left Front) | |
| 9- | Call For Details | — | Left Front Yoke Assembly (Including Latches) | |
| 10- | Call For Details | — | Whiz Lock (1/4"-20NC x 5/8") | |
| 11- | Call For Details | — | Turntable Guide Bar (Stainless Steel) | |
| 12- | Call For Details | — | Yoke Assembly-Latches (Right Front) | |
| 13- | Call For Details | — | Yoke Weldment (Right Front) | |
| 16- | Call For Details | — | Front Latch Bar | |
| 17- | Call For Details | — | Runway Assembly (Left) | |
| 18- | Call For Details | — | Rolling Jack | |
| 19- | Call For Details | — | Column (Front) | |
| 19- | Call For Details | — | Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20 | |
| 20- | Call For Details | — | Pan Head Self Tapping Screw (#8-32NC x 1/2" length) | |
| 21- | Call For Details | — | Control Box (208 V) | |
| 21- | Call For Details | — | Control Box (230 V) | |
| 21- | Call For Details | — | Control Box (440-480 V) | |
| 22- | Call For Details | — | Flat Head Machine Screw (M5x.8x8MM) | |
| 23- |
BH-7543-69 (Call For Details) |
FA7132-2 | Adapter Plate | |
| 24- | Call For Details | — | Elbow | |
| 25- | Call For Details | — | Power Unit (Single Phase) | |
| 25- | Call For Details | — | Power Unit (3-Phase) | |
| 26- | Call For Details | — | Anchor - Zinc Plated Steel Wedge 5/8" x 4-1/2" - Box of 25 | |
| 28- | Call For Details | — | Yoke (Rear) | |
| 29- | Call For Details | — | Hex Head Cap Screw-Flanged Whiz Lock (High Strength 1/2" -13NC x 1 1/4") | |
| 30- | Call For Details | — | Ramp Chock | |
| 33- | Call For Details | — | Whiz-Lock Nut-Flanged (#10-24NC) | |
| 34- | Call For Details | — | Rear Yoke Ass'y (Including Latches) | |
| 35- | Call For Details | — | Runway Assembly (Right) | |
| 39- | Call For Details | — | Flat Washer (7/8") | |
| 40- | Call For Details | — | Spacer | |
| 41- |
BH-7530-80 (Call For Details) |
FC5704 | Column (Rear) | |
| 43- | Call For Details | — | Nut | |
| 44- | Call For Details | — | Washer | |
| 45- | Call For Details | — | Bolt | |
| 47- | Call For Details | — | Hydraulic Cylinder | |
| 48- | Call For Details | — | Cable Retaining Bar (Left) | |
| 49- | Call For Details | — | Cable Pull Bar | |
| 51- | Call For Details | — | Hex Nut (1 3/8"-6NC) | |
| 52- | Call For Details | — | Hex Jam Nut (1 3/8"-6NC) |

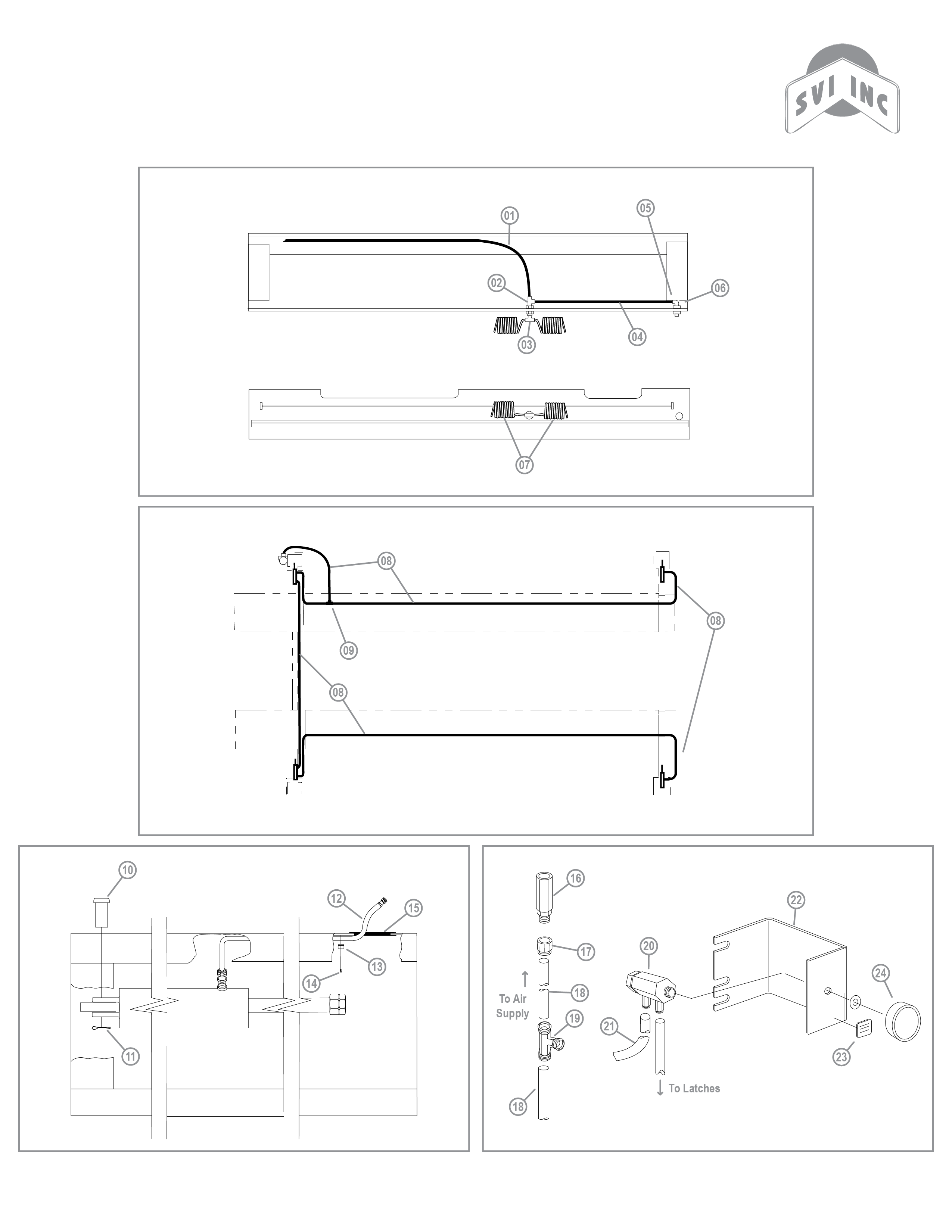

Air Latch Airline Detail
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 9- |  |
BH-7526-88 | FC5225-46 | Union Tee |
| 8- | Call For Details | — | Airline Tubing (50' roll 1/4") |
Air Lock Release Valve Detail
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 16- |  |
BH-7514-09 | FA3134-12 | Filter |
| 17- |  |
BH-7514-10 | FA3134-13 | Female Connector |
| 18- |  |
BH-7507-02 | FA2230-15 | Tubing (40' roll 3/8") |
| 19- |  |
BH-7507-04 | FA2242-1 | Union Tee |
| 20- |  |
BH-7504-19K | FA3216 | Lock Release Air Valve and Mounting Bracket |
| 24- | |
BH-7504-19K | FA3216 | Control Assembly |
| 20- | Call For Details | — | Air Valve | |
| 21- | Call For Details | — | Tubing (1/4") | |
| 22- | Call For Details | — | Control Bracket | |
| 23- | Call For Details | — | Nameplate |
Cables
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 39- |  |
BH-7544-60 | FC5898-4 | Cable (Left Front) |
| 40- |  |
BH-7544-59 | FC5898-3 | Cable (Right Front) |
| 42- | |
BH-7501-89 | FC543-2 | Retaining Bar (Right Cable) |
| 43- |  |
BH-7233-69 | 40061 | Hex Head Cap Screw (1/4"-20NC x 1 1/2") |
| 44- |  |
BH-7501-05 | FC544 | Cable (Left Rear) |
| 45- |  |
BH-7501-06 | FC545 | Cable (Right Rear) |
| 29- | Call For Details | — | Hex Nut-locking nylon insert (1/4"-20NC) | |
| 41- | Call For Details | — | Retaining Bar (Left Cable) |
Hydraulic Hose Detail
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 10- |  |
BH-7513-43 | FC5346-1 | Clevis Pin |
| 12- |  |
BH-7531-44 | FC5798 | Hose |
| 13- |  |
BH-7507-14 | FA2239-1 | Clamp |
| 15- |  |
BH-7513-13 | FC5317-12 | Strip Grommet |
| 11- | Call For Details | — | Cotter Pin (3/16" x 1 1/4" Length) | |
| 14- | Call For Details | — | Hex Head Tapping Screw (x 5/8" Length #10 - 24NC Slotted) |
Internal Airline Parts
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 1- |  |
BH-7513-07 | FC5313-2 | Tubing |
| 2- |  |
BH-7524-30 | FC147-3 | Run Tee (Male) |
| 4- |  |
BH-7524-34 | FC147-6 | Runway Tubing |
| 5- |  |
BH-7524-29 | FC147-7 | Male Elbow |
| 6- |  |
BH-7518-97 | FC147-1 | Female Bulkhead |
| 7- |  |
BH-7508-83 | FC147-14 | Recoil Hose |
| 3- | Call For Details | — | Branch Tee (Male) |
