Product description

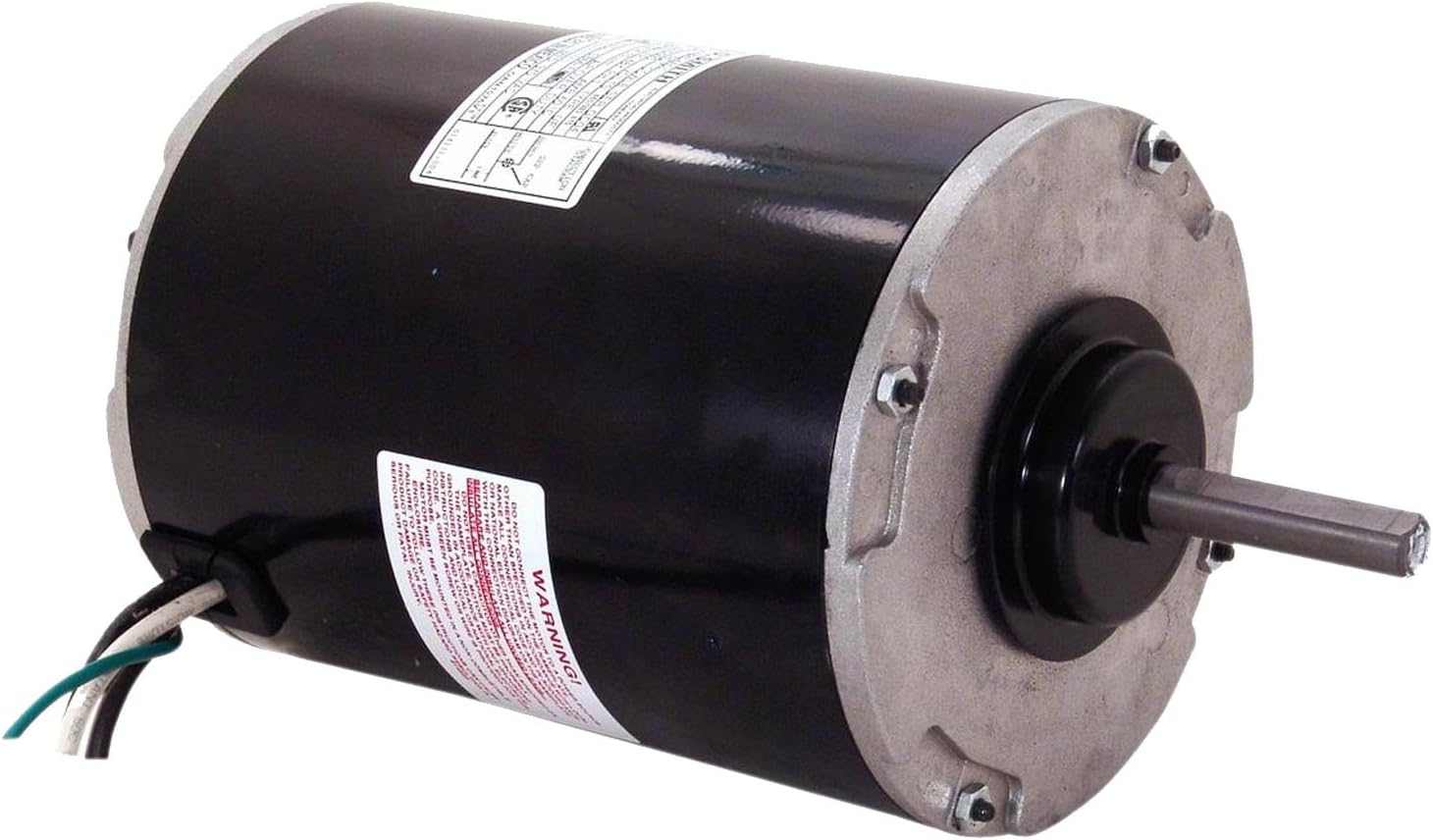

The Regal Rexnord OAN1076V1 is a specialized 3/4 HP OEM replacement motor designed for high-performance outdoor condensing units. This motor is uniquely engineered for high-voltage and international applications, supporting 460V or 380-415V single-phase power supplies. It features a dual-speed capability, operating at either 1075 or 920 RPM, which allows for precise airflow management based on the specific cooling demands of the HVAC system. Built in a NEMA 48 frame, the OAN1076V1 utilizes a semi-enclosed housing that balances the need for internal cooling with protection against the elements. Its rugged construction includes high-quality ball bearings and a 1/2-inch diameter shaft with a flat for secure fan blade mounting. The motor's counter-clockwise (CCW) lead end rotation is a standard requirement for many large condenser fan assemblies. With its wide operating current of 1.8 to 2.8 Amps and high horsepower rating, this motor provides the reliable torque and airflow necessary to maintain system efficiency during the most intense seasonal heat waves.

Product highlights

• Dual Speed Versatility: Operates at 1075 or 920 RPM for optimized airflow and noise control.
• High-Voltage Rated: Engineered for 460V and 380-415V single-phase commercial power systems.
• Robust Shaft Design: 1/2-inch diameter shaft with flat ensures a secure, non-slip fan blade connection.
• Semi-Enclosed Protection: Balanced housing design provides essential cooling while resisting debris.
• Reliable Bearings: Features high-quality ball bearings for smooth operation and a long service life.

Specs

• Manufacturer: Regal Rexnord - Century Motors
• Manufacturer Part Number: OAN1076V1
• Horsepower: 3/4 HP
• Voltage: 380-415 / 460V AC
• Speed: 1075 / 920 RPM
• Frame Size: 48 Frame
• Rotation: CCW Lead End

Direct replacement models

OAN1076V1

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Manufactured with rigorous industry standards and certified in the USA with superior quality to the OEM.
