Product description

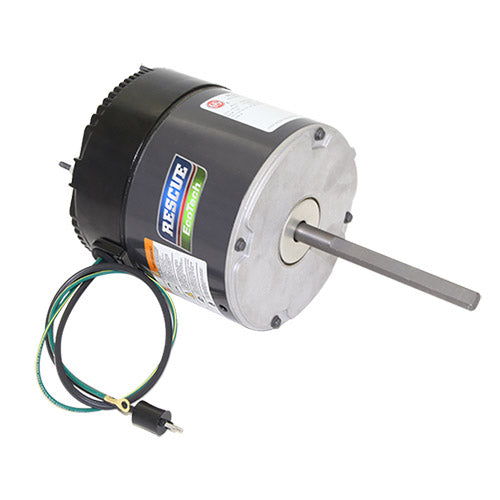

The Nidec 5563EOR is an advanced Electronically Commutated Motor (ECM) designed for high-efficiency condenser fan applications. This motor offers a flexible horsepower range of 1/3 to 1/5 HP and operates at 1145 RPM, making it an ideal choice for upgrading existing systems to modern efficiency standards. Featuring a Totally Enclosed Air Over (TEAO) enclosure, the 5563EOR is protected from the ingress of moisture and dust while utilizing the airflow from the fan to manage its own operating temperature. This design, combined with a Counter-Clockwise Lead End (CCWLE) rotation, ensures compatibility with a broad range of outdoor condensing units. The ECM technology allows for more precise control and significantly lower energy consumption compared to traditional permanent split capacitor (PSC) motors. Built on a 48Y frame and cross-referenced with part number S83-505, this motor is a direct-fit solution that can lower utility bills and improve the reliability of commercial cooling infrastructure.

Product highlights

• High-efficiency ECM technology reduces energy consumption
• Versatile 1/3 to 1/5 HP range for broad system compatibility
• TEAO enclosure for superior protection in outdoor environments
• 1145 RPM operation optimized for condenser coil airflow
• Direct replacement cross-referenced to part number S83-505

Specs

• Manufacturer: Nidec
• Manufacturer Part Number: 5563EOR
• Horsepower: 1/3-1/5 HP
• RPM: 1145
• Voltage: 208-230V
• Rotation: CCWLE
• Enclosure: TEAO
• Amperage: 2.5A
• Frame Size: 48Y

Direct replacement models

S83-505, Nidec 5563EOR

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Manufactured with rigorous industry standards and certified in the USA with superior quality to the OEM.
