Product description

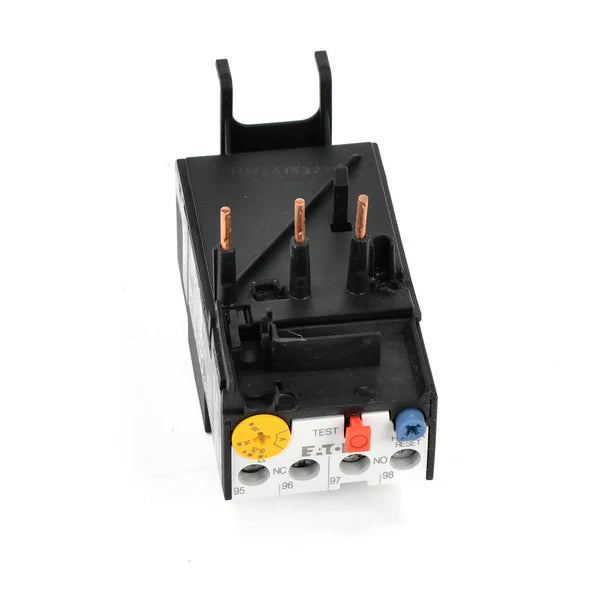

The Eaton TEN005496 XTOB Overload Relay is a critical protection component for 10 HP motors, offering a precise 10-16 Amp adjustable range. Designed to mount directly to Eaton contactors, this thermal overload relay monitors current flow and trips to disconnect the motor if it detects an overcurrent condition that could lead to winding failure or overheating. It is an essential safeguard for pumps, compressors, and conveyors, preventing costly motor burnouts caused by mechanical jams or phase imbalances. The XTOB series is known for its durability and ease of installation, featuring accessible adjustment dials and clear trip indicators. By implementing this relay into your motor control center, you extend the operational lifespan of your expensive industrial motors and reduce unexpected downtime in your facility.

Product highlights

• Adjustable overload range from 10 to 16 Amps for precise motor matching.
• Engineered for use with 10 HP motors in industrial motor control circuits.
• Thermal trip mechanism provides reliable protection against overheating.
• Easy integration with Eaton contactors for a compact control solution.
• Built-in test/stop button and clear status indication for simplified maintenance.

Specs

• Manufacturer: Eaton
• Manufacturer Part Number: TEN005496
• Model: XTOB
• Current Range: 10-16 Amp
• Power Rating: 10 Hp

Direct replacement models

Eaton TEN005496, Eaton XTOB016DC1

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Manufactured with rigorous industry standards and certified in the USA with superior quality to the OEM.
