Product description

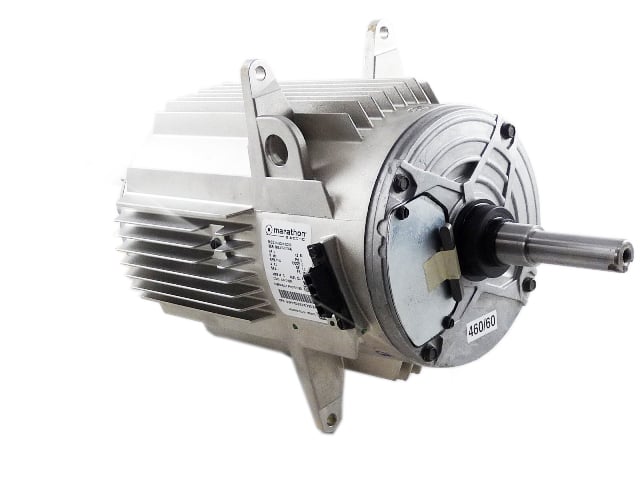

The Carrier 00PPG000007202A is a heavy-duty condenser fan motor designed for high-capacity commercial HVAC and refrigeration systems. This 3 HP, 3-phase motor is engineered to drive large-diameter fan blades in outdoor condenser units, providing the massive airflow required for efficient heat rejection. Operating at 1140 RPM on a 460V supply, it delivers the necessary torque to handle high static pressure and heavy load conditions. Built to a NEMA 56Y frame specification, this motor features a Totally Enclosed Air Over (TEAO) design, protecting the internal windings from dust and moisture while utilizing the fan's own airflow for cooling. Its robust ball-bearing construction ensures reliable performance in continuous-duty applications, even in extreme ambient temperatures.

Product highlights

• High Torque Performance: 3 HP output provides reliable startup and operation for large condenser fan applications.
• Industrial Grade Efficiency: 3-phase, 460V configuration ensures energy-efficient operation for commercial infrastructure.
• Weather-Resistant Build: TEAO enclosure protects internal components from rain, debris, and humidity.
• Smooth Heat Rejection: 1140 RPM speed is optimized for maximum airflow with minimal aerodynamic noise.
• Long-Life Bearings: Heavy-duty ball bearings support extended maintenance intervals in outdoor environments.

Specs

• Manufacturer: Carrier
• Manufacturer Part Number: 00PPG000007202A
• Horsepower: 3 HP
• Voltage: 460V AC
• Phase: 3 Phase
• Speed: 1140 RPM
• Frame Size: 56Y
• Enclosure: TEAO
• Amperage: 6.0 Amps

Direct replacement models

Carrier 00PPG000007202A, HD58CH460, HD52AZ466.

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Manufactured with rigorous industry standards and certified in the USA with superior quality to the OEM.
