Click on the part number for more information

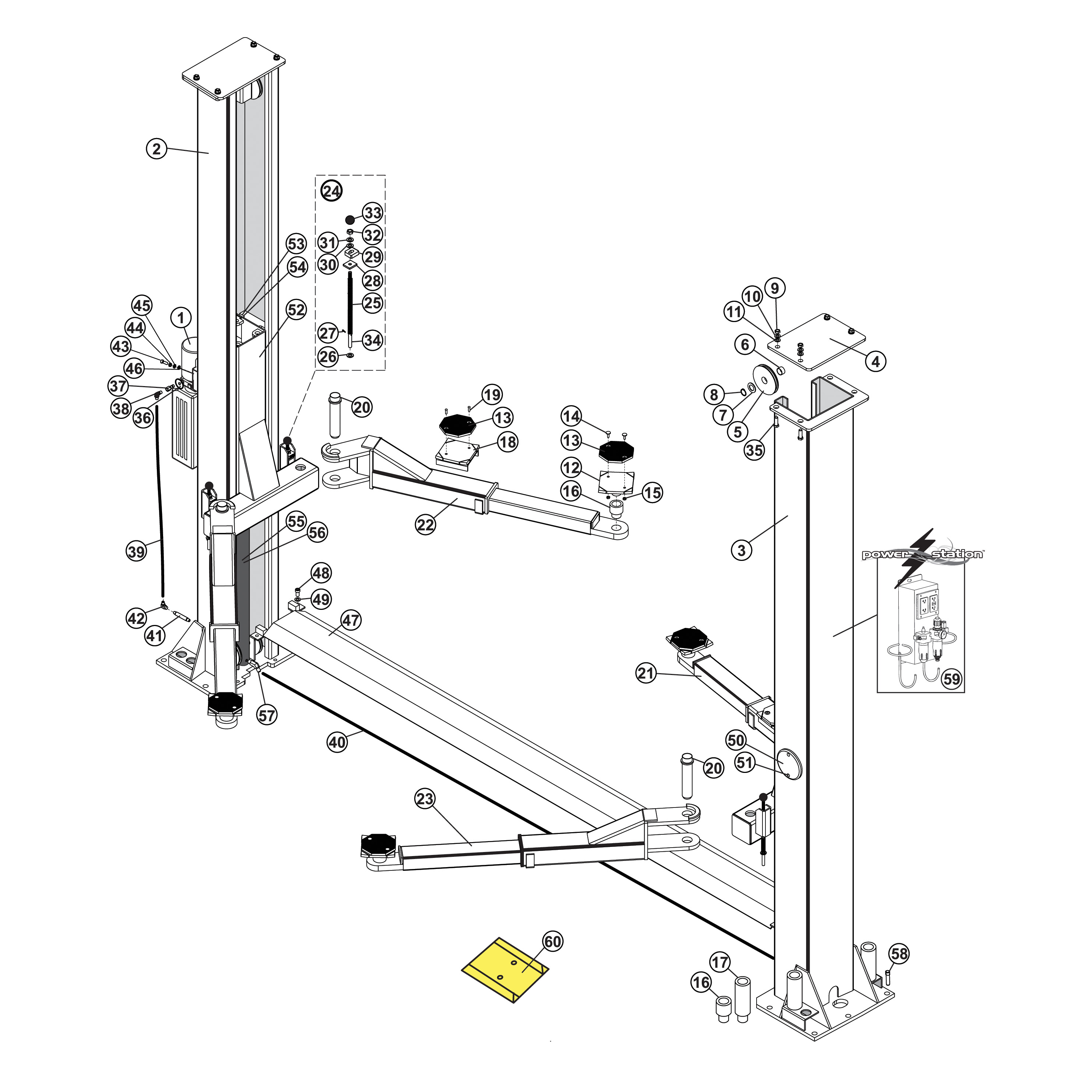

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
5- BH-7485-0099 BH-7485-0099 TP9-1025 Cable Sheave
6- BH-7486-54 BH-7486-54 TP9-1075 Bushing
12- BH-7485-0078 BH-7485-0078 TP9-1001 Adapter Base
13- BH-7270-048 BH-7270-048 TP9-1002 Rubber Arm Pad
14- BH-7485-0127 BH-7485-0127 TP9-1065 Elevator Bolt
16- BH-7485-0108A BH-7485-0108A TP9-1038.1 Nesting Height Extension - 1-1/4"
16- BH-7485-0108 BH-7485-0108 TP9-1038 Nesting Height Extension - 3"
17- BH-7485-0109 BH-7485-0109 TP9-1039 Nesting Height Extension - 5"
18- BH-7485-0126 BH-7485-0126 TP9-1064 Arm Adapter Base
20- BH-7485-0082 BH-7485-0082 TP9-1005 Arm Pin
24- BH-7485-0102 BH-7485-0102 TP9-1029 Arm Restraint Pin Assembly
25- BH-7485-0090 BH-7485-0090 TP9-1013 Arm Restraint Spring
33- BH-7485-0118 BH-7485-0118 TP9-1053 Arm Lock Knob
39- BH-7485-0105 BH-7485-0105 TP9-1033 Hydraulic Hose (cylinder to power unit)
40- BH-7485-0121 BH-7485-0121 TP9-1034 Hydraulic Hose (Cylinder to Cylinder)
41- BH-7485-0100 BH-7485-0100 TP9-1026 Straight Fitting
42- BH-7485-0101 BH-7485-0101 TP9-1027 90 Degree Elbow Fitting
54- BH-7485-0123 BH-7485-0123 TP9-1059 Shim for Carriage Slider
56- BH-7486-53 BH-7486-53 TP9-1057 Seal Kit for TP9KAC
56- BH-7486-53F BH-7486-53F TP9-1057F Seal Kit for TP9KAC
57- BH-7485-0246 BH-7485-0246 TP9-1060 45 Degree Fitting
59- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
60- BH-9702 BH-9702 — Dual Wheel Spotter Dish 20-1/8" x 15" Wide
--- BH-7485-0119
(Call For Details) 		TP9-1054 Ferrule (large / USA)
--- BH-7485-0120
(Call For Details) 		TP9-1063 Ferrule (large / Import)
1- Call For Details — Power Unit
2- BH-7485-0104
(Call For Details) 		TP9-1032 Column (power unit side)
3- BH-7485-0244
(Call For Details) 		TP9-1030 Column (offside)
4- BH-7485-0245
(Call For Details) 		TP9-1031 Top Plate for Column
7- Call For Details — Flat Washer
8- Call For Details — Lockwasher
9- BH-7485-0132
(Call For Details) 		TP9-1072 Nut, M12
10- BH-7485-0133
(Call For Details) 		TP9-1073 Flat Washer
11- BH-7485-0134
(Call For Details) 		TP9-1074 Spring Washer
15- Call For Details — Nut, M8
16- BH-7485-0109A
(Call For Details) 		TP9-1039.1 Nesting Height Extension - 2"
19- BH-7485-0143
(Call For Details) 		TP9-1089 Bolt, M8 x 16
21- BH-7485-0084
(Call For Details) 		TP9-1007 Arm Assembly - Front Right
22- BH-7485-0083
(Call For Details) 		TP9-1006 Arm Assembly - Front Left
23- BH-7485-0080
(Call For Details) 		TP9-1003 Arm Assembly - Rear
26- BH-7485-0091
(Call For Details) 		TP9-1014 Washer
27- BH-7485-0092
(Call For Details) 		TP9-1015 Cotter Pin
28- BH-7485-0136
(Call For Details) 		TP9-1081 Square Washer
29- BH-7485-0089
(Call For Details) 		TP9-1012 Arm Restraint Gear (small)
30- BH-7485-0139
(Call For Details) 		TP9-1084 Spring Washer
31- BH-7485-0138
(Call For Details) 		TP9-1083 Flat Washer
32- BH-7485-0137
(Call For Details) 		TP9-1082 Nut, M10
34- BH-7485-0088
(Call For Details) 		TP9-1011 Arm Restraint Pin
35- BH-7485-0131
(Call For Details) 		TP9-1071 Bolt, M12 x 40
36- BH-7485-0253
(Call For Details) 		TP9-1094 Washer
37- BH-7485-0144
(Call For Details) 		TP9-1095 Hydraulic Fitting
38- BH-7485-0254
(Call For Details) 		TP9-1096 Elbow Fitting
43- BH-7485-0249
(Call For Details) 		TP9-1090 Bolt, M8 x 15
44- BH-7485-0252
(Call For Details) 		TP9-1093 Spring Washer
45- BH-7485-0251
(Call For Details) 		TP9-1092 Flat Washer
46- BH-7485-0250
(Call For Details) 		TP9-1091 Nut, M8
47- BH-7485-0122
(Call For Details) 		TP9-1037 Drive Over Plate
48- BH-7485-0247
(Call For Details) 		TP9-1079 Bolt M12 x 20
49- BH-7485-0248
(Call For Details) 		TP9-1080 Flat Washer
50- BH-7485-0085
(Call For Details) 		TP9-1008 Carriage Lock Access Cover
51- Call For Details — Bolt, M6 x 10
52- BH-7485-0086
(Call For Details) 		TP9-1009 Carriage
53- Call For Details — Slider Block
55- Call For Details — Hydraulic Cylinder
58- Call For Details — 3/4" x 5-1/2" All Thread Wedge Anchor (Box of 20)
60- BH-9701
(Call For Details) 		— Single Wheel Spotter Dish 10-3/4" x 15" Wide
