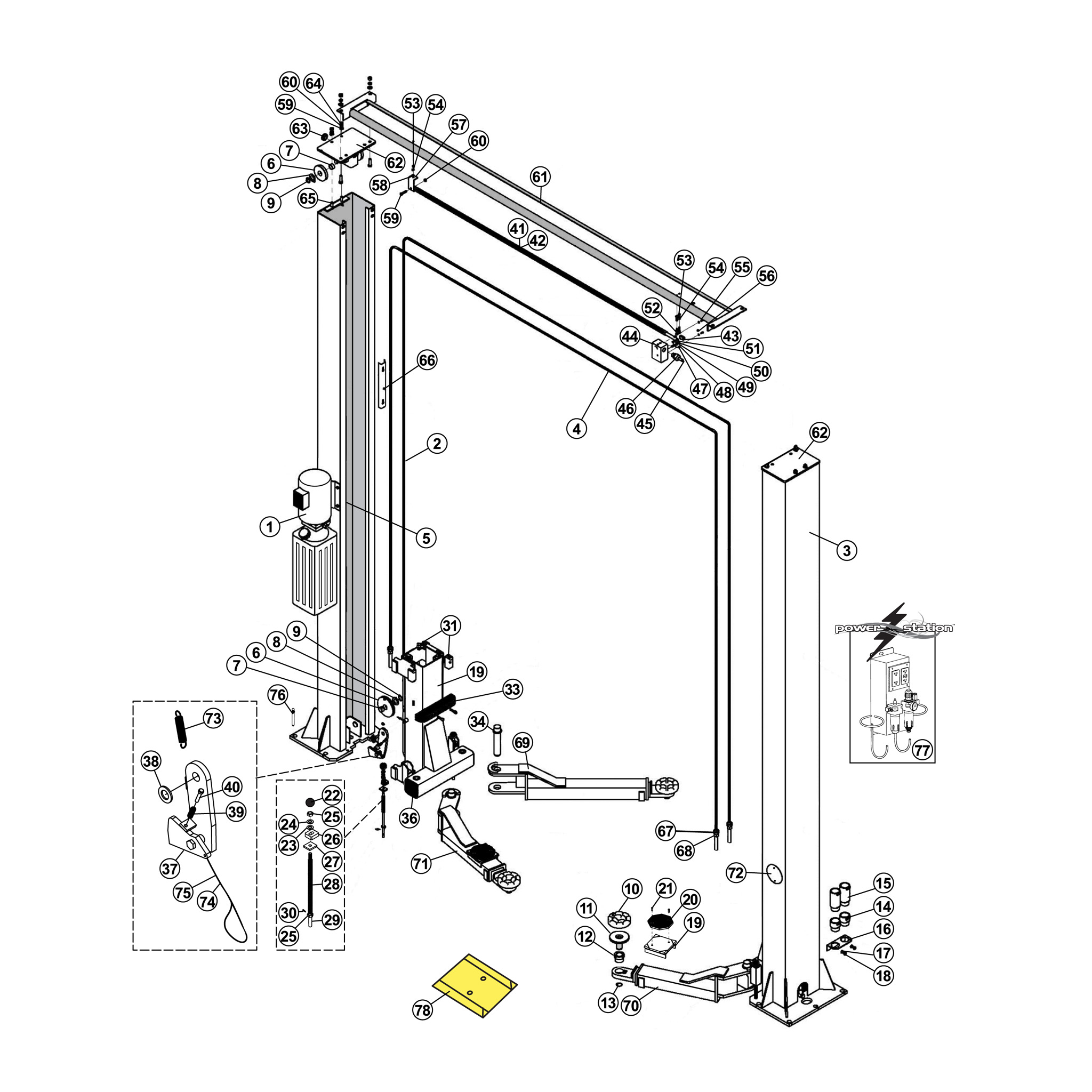

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
4- BH-7485-0219 BH-7485-0219 TP9KACX-064 Cable, Eq. 407.5”
6- BH-7485-0190 BH-7485-0190 TP9KACX-041 Cable Sheave
7- BH-7485-0189 BH-7485-0189 TP9KACX-040 Combined Bushing
10- BH-7485-0162 BH-7485-0162 TP9KACX-014 Rubber Arm Pad
14- BH-7485-0152 BH-7485-0152 TP9KACX-004 Nesting Height Extension 1-3/8”
15- BH-7485-0151 BH-7485-0151 TP9KACX-003 Nesting Height Extension 4"
26- BH-7485-0179 BH-7485-0179 TP9KACX-030 Arm Restraint Gear Bar
27- BH-7485-0180 BH-7485-0180 TP9KACX-031 Arm Restraint Plate
28- BH-7485-0181 BH-7485-0181 TP9KACX-032 Spring
29- BH-7485-0183 BH-7485-0183 TP9KACX-034 Arm Restraint Rod
30- BH-7485-0182 BH-7485-0182 TP9KACX-033 Cotter Pin
31- BH-7488-70 BH-7488-70 TP9KACX-023 Slider Block
34- BH-7485-0169 BH-7485-0169 TP9KACX-020 Swing Arm Pin
43- BH-7485-0215 BH-7485-0215 TP9KACX-060 Overhead Cutoff Limit Switch
44- BH-7485-0207 BH-7485-0207 TP9KACX-054 Switch Box, OH Shut-Off
45- BH-7485-0209 BH-7485-0209 TP9KACX-056 Cable, Overhead Shutoff
46- BH-7485-0208 BH-7485-0208 TP9KACX-055 Cable Connector
47- BH-7485-0214 BH-7485-0214 TP9KACX-059 Plate
48- BH-7485-0210 BH-7485-0210 TP9KACX-057 Screw
49- BH-7485-0211 BH-7485-0211 TP9KACX-058 Nut
50- BH-7485-0212 BH-7485-0212 TP9KACX-058.1 Screw
51- BH-7485-0213 BH-7485-0213 TP9KACX-058.2 Nut
52- BH-7485-0216 BH-7485-0216 TP9KACX-061 Screw
53- BH-7485-0200 BH-7485-0200 TP9KACX-049 Nut
55- BH-7485-0218 BH-7485-0218 TP9KACX-063 Screw
56- BH-7485-0217 BH-7485-0217 TP9KACX-062 Cover
57- BH-7485-0203 BH-7485-0203 TP9KACX-050.2 Bracket for Overhead Shutoff Bar
58- BH-7485-0202 BH-7485-0202 TP9KACX-050.1 Screw
59- BH-7485-0196 BH-7485-0196 TP9KACX-046 Lock Washer
60- BH-7485-0197 BH-7485-0197 TP9KACX-047 Washer
62- BH-7485-0198 BH-7485-0198 TP9KACX-048 Top Plate
63- BH-7485-0199 BH-7485-0199 TP9KACX-048.1 Cable Hex Nut
66- BH-7485-0193 BH-7485-0193 TP9KACX-044 Hose Cover
69- BH-7485-0167 BH-7485-0167 TP9KACX-019 Arm Assembly, Asym Rear Long TP9KACX
77- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
78- BH-9702 BH-9702 — Dual Wheel Spotter Dish 20-1/8" x 15" Wide
1- BH-7485-0222
(Call For Details) 		TP9KACX-067 220V Power Unit
2- BH-7485-0149
(Call For Details) 		TP9KACX-001 Main Column (power unit side)
3- BH-7485-0150
(Call For Details) 		TP9KACX-002 Column (offside)
5- BH-7485-0153
(Call For Details) 		TP9KACX-005 Cable Nut
8- BH-7485-0191
(Call For Details) 		TP9KACX-042 Sheave Spacer
9- Call For Details — Retaining Ring
11- BH-7485-0163
(Call For Details) 		TP9KACX-015 Adapter Base
12- BH-7485-0164
(Call For Details) 		TP9KACX-016 Swivel Pad, Screw Collar
13- BH-7485-0165
(Call For Details) 		TP9KACX-017 Retaining Ring
16- BH-7485-0154
(Call For Details) 		TP9KACX-006 Extension Hanger Bracket
17- BH-7485-0156
(Call For Details) 		TP9KACX-008 Flat Washer D8
18- BH-7485-0155
(Call For Details) 		TP9KACX-007
19- BH-7485-0159
(Call For Details) 		TP9KACX-011 Saddle Adapter Base
20- BH-7485-0160
(Call For Details) 		TP9KACX-012 Rubber Arm Pad for Saddle Adapter
21- BH-7485-0161
(Call For Details) 		TP9KACX-013 Screw M8x12
22- BH-7485-0175
(Call For Details) 		TP9KACX-026 Arm Restraint Pull Knob
23- Call For Details — Washer
24- Call For Details — Washer
25- Call For Details — Nut
32- BH-7485-0171
(Call For Details) 		TP9KACX-022 Rubber Door Guard
33- BH-7485-0170
(Call For Details) 		TP9KACX-021 Screw
35- BH-7485-0173
(Call For Details) 		TP9KACX-024 Carriage, TP9KX
36- BH-7485-0174
(Call For Details) 		TP9KACX-025 Plastic Cover, Carriage
37- BH-7485-0184
(Call For Details) 		TP9KACX-035 Lock Latch
38- BH-7485-0185
(Call For Details) 		TP9KACX-036 Flat Washer
39- BH-7485-0187
(Call For Details) 		TP9KACX-038 Spring
40- BH-7485-0186
(Call For Details) 		TP9KACX-037 Screw
41- BH-7485-0205
(Call For Details) 		TP9KACX-052 Overhead Shutoff Bar
42- BH-7485-0206
(Call For Details) 		TP9KACX-053 Foam Rubber
54- Call For Details — Lock Washer
61- BH-7485-0204
(Call For Details) 		TP9KACX-051 Overhead Cross Beam
64- BH-7485-0195
(Call For Details) 		TP9KACX-045.1 Nut M10
65- BH-7485-0194
(Call For Details) 		TP9KACX-045 Bolt M10x35
67- BH-7485-0220
(Call For Details) 		TP9KACX-065 Flat Washer
68- BH-7485-0221
(Call For Details) 		TP9KACX-066 Nut
69- BH-7485-0168
(Call For Details) 		TP9KACX-019A Arm Assembly, Symmetric - TP9KSCX
70- BH-7485-0166
(Call For Details) 		TP9KACX-018 Arm Assembly, Asym Front Short (driver) TP9KACX
71- BH-7485-0158
(Call For Details) 		TP9KACX-010 Arm Assembly, Asym Front Short (passenger) TP9KACX
72- BH-7485-0188
(Call For Details) 		TP9KACX-039 Plastic Cover, Column
73- BH-7485-0256
(Call For Details) 		— Lock Release Spring
74- BH-7485-0257
(Call For Details) 		— Lock Release Cable
75- BH-7485-0258
(Call For Details) 		— Lock Release Cable Cover
76- BH-7485-0157
(Call For Details) 		TP9KACX-009 Anchor Bolt
78- BH-9701
(Call For Details) 		— Single Wheel Spotter Dish 10-3/4" x 15" Wide
