Click on the part number for more information

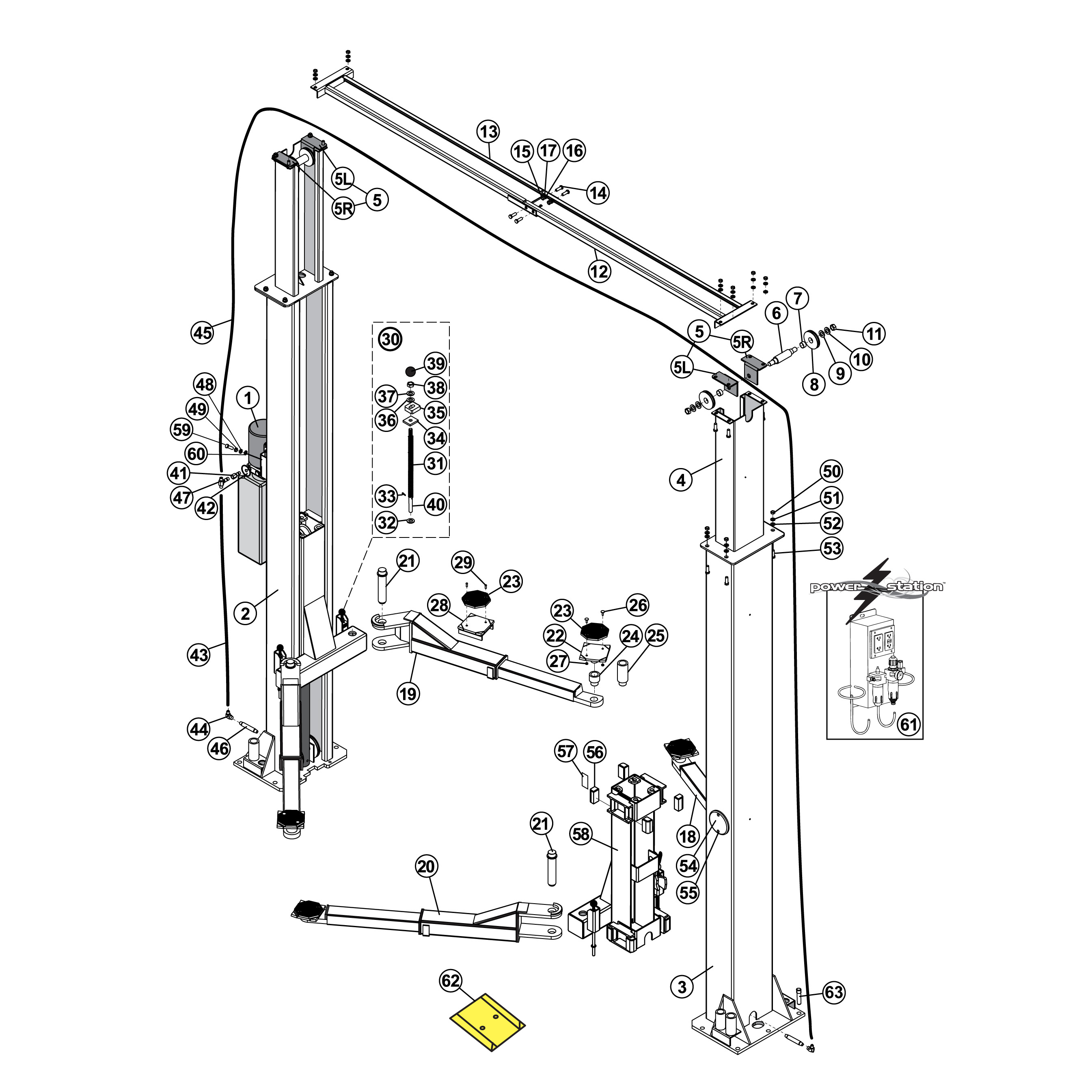

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
8a- BH-7486-27 BH-7486-27 TP9-1100 Cable Sheave
21- BH-7485-0082 BH-7485-0082 TP9-1005 Arm Pin
22- BH-7485-0078 BH-7485-0078 TP9-1001 Adapter Base
23- BH-7270-048 BH-7270-048 TP9-1002 Rubber Arm Pad
24- BH-7485-0108A BH-7485-0108A TP9-1038.1 Nesting Height Extension - 1-1/4"
24- BH-7485-0108 BH-7485-0108 TP9-1038 Nesting Height Extension - 3"
25- BH-7485-0109 BH-7485-0109 TP9-1039 Nesting Height Extension - 5"
26- BH-7485-0127 BH-7485-0127 TP9-1065 Elevator Bolt
28- BH-7485-0126 BH-7485-0126 TP9-1064 Arm Adapter Base
30- BH-7485-0102 BH-7485-0102 TP9-1029 Arm Restraint Pin Assembly
31- BH-7485-0090 BH-7485-0090 TP9-1013 Arm Restraint Spring
39- BH-7485-0118 BH-7485-0118 TP9-1053 Arm Lock Knob
43- BH-7485-0105 BH-7485-0105 TP9-1033 Hydraulic Hose (cylinder to power unit)
44- BH-7485-0101 BH-7485-0101 TP9-1027 90 Degree Elbow Fitting
45- BH-7485-0111 BH-7485-0111 TP9-1042 Hydraulic Hose (overhead)
46- BH-7485-0100 BH-7485-0100 TP9-1026 Straight Fitting
57- BH-7485-0123 BH-7485-0123 TP9-1059 Shim for Carriage Slider
61- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
62- BH-9702 BH-9702 — Dual Wheel Spotter Dish 20-1/8" x 15" Wide
--- BH-7485-0119
(Call For Details) 		TP9-1054 Ferrule (large / USA)
--- BH-7485-0120
(Call For Details) 		TP9-1063 Ferrule (large / Import)
1- Call For Details — Power Unit
2- BH-7485-0104
(Call For Details) 		TP9-1032 Column (power unit side)
3- BH-7485-0103
(Call For Details) 		TP9-1030 Column (offside)
4- BH-7485-0117
(Call For Details) 		TP9-1051 Column Extension
5- BH-7486-40
(Call For Details) 		TP9-1047 Upper Sheave Bracket Set
5L- Call For Details — Upper Sheave Bracket - Left
5R- Call For Details — Upper Sheave Bracket - Right
6- Call For Details — Upper Sheave Shaft
6- BH-7486-41K
(Call For Details) 		TP9-1048x Upper Sheave & Sheave Shaft Kit 1 Column
7- Call For Details — Upper Sheave Spacer
9- Call For Details — Lock Washer
10- Call For Details — Flat Washer
11- Call For Details — Hex Nut
12- BH-7485-0112
(Call For Details) 		TP9-1043 Overhead Cross Beam - Inner
13- BH-7485-0113
(Call For Details) 		TP9-1044 Overhead Cross Beam - Outer
14- BH-7485-0145
(Call For Details) 		TP9-1098 Bolt, M12 x 30
15- BH-7485-0146
(Call For Details) 		TP9-1099 Nut, M12
16- BH-7485-0114
(Call For Details) 		TP9-1045 Lock Washer
17- BH-7485-0115
(Call For Details) 		TP9-1046 Flat Washer
18- BH-7485-0083
(Call For Details) 		TP9-1006 Arm Assembly - Front Left
19- BH-7485-0084
(Call For Details) 		TP9-1007 Arm Assembly - Front Right
20- BH-7485-0080
(Call For Details) 		TP9-1003 Arm Assembly - Rear
24- BH-7485-0109A
(Call For Details) 		TP9-1039.1 Nesting Height Extension - 2"
27- Call For Details — Nut, M8
29- BH-7485-0143
(Call For Details) 		TP9-1089 Bolt, M8 x 16
30*- BH-7486-09
(Call For Details) 		— Arm Restraint Assembly (with 7 Teeth)
32- BH-7485-0091
(Call For Details) 		TP9-1014 Washer
33- BH-7485-0092
(Call For Details) 		TP9-1015 Cotter Pin
34- BH-7485-0137
(Call For Details) 		TP9-1082 Nut, M10
35- BH-7485-0089
(Call For Details) 		TP9-1012 Arm Restraint Gear (small)
36- BH-7485-0139
(Call For Details) 		TP9-1084 Lock Washer
37- BH-7485-0138
(Call For Details) 		TP9-1083 Flat Washer
38- BH-7485-0136
(Call For Details) 		TP9-1081 Square Washer
40- BH-7485-0088
(Call For Details) 		TP9-1011 Arm Restraint Pin
41- BH-7485-0144
(Call For Details) 		TP9-1095 Hydraulic Fitting
42- BH-7485-0095
(Call For Details) 		TP9-1018 Washer
47- BH-7485-0135
(Call For Details) 		TP9-1078 Fitting, Tee
48- BH-7485-0107
(Call For Details) 		TP9-1036 Flat Washer
49- BH-7485-0106
(Call For Details) 		TP9-1035 Lock Washer
50- BH-7485-0132
(Call For Details) 		TP9-1072 Nut, M12
51- BH-7485-0133
(Call For Details) 		TP9-1073 Flat Washer
52- BH-7485-0134
(Call For Details) 		TP9-1074 Lock Washer
53- BH-7485-0131
(Call For Details) 		TP9-1071 Bolt, M12 x 40
54- BH-7485-0085
(Call For Details) 		TP9-1008 Carriage Lock Access Cover
55- Call For Details — Bolt, M6 x 10
56- Call For Details — Slider Block
58- BH-7485-0086
(Call For Details) 		TP9-1009 Carriage
59- Call For Details — Bolt, M8 x 15
60- BH-7485-0110
(Call For Details) 		TP9-1040 M8 Nut
62- BH-9701
(Call For Details) 		— Single Wheel Spotter Dish 10-3/4" x 15" Wide
63- Call For Details — 3/4" x 5-1/2" All Thread Wedge Anchor (Box of 20)
