Click on the part number for more information

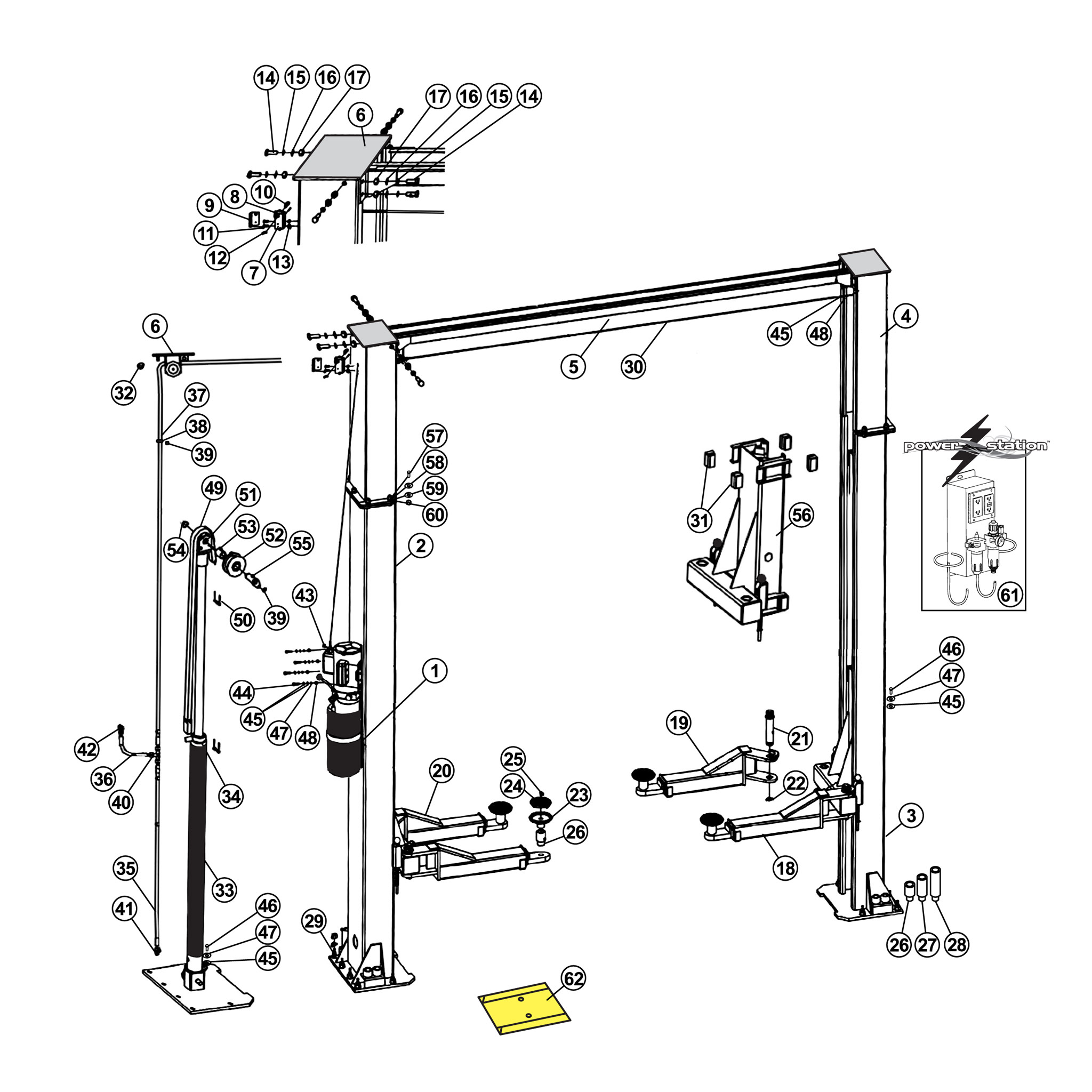

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
24- BH-7485-0001 BH-7485-0001 TP7KAC-26 Rubber Arm Pad
27- BH-7485-0004 BH-7485-0004 TP7KAC-39 Height Extension - Medium
61- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
62- BH-9702 BH-9702 — Dual Wheel Spotter Dish 20-1/8" x 15" Wide
1- Call For Details — Power Unit
2- BH-7485-0007
(Call For Details) 		TP7KAC-01 Main Column (power unit side)
3- BH-7485-0008
(Call For Details) 		TP7KAC-02 Column (opposite)
4- BH-7485-0009
(Call For Details) 		TP7KAC-03 Column Extension
5- BH-7485-0010
(Call For Details) 		TP7KAC-09 Overhead Cross Beam
6- BH-7485-0011
(Call For Details) 		TP7KAC-04 Top Cover for Column
7- BH-7485-0012
(Call For Details) 		TP7KAC-16 Bracket
8- BH-7485-0017
(Call For Details) 		TP7KAC-12 Cable Sheave
9- BH-7485-0018
(Call For Details) 		TP7KAC-13 Shield Plate
10- BH-7485-0019
(Call For Details) 		TP7KAC-11 Sheave Shaft
11- BH-7485-0020
(Call For Details) 		TP7KAC-14 Cross Screw
12- BH-7485-0021
(Call For Details) 		TP7KAC-15 Retaining Ring
13- BH-7485-0022
(Call For Details) 		TP7KAC-17 Nut
14- BH-7485-0023
(Call For Details) 		TP7KAC-05 Hex Bolt
15- BH-7485-0024
(Call For Details) 		TP7KAC-06 Spring Washer
16- BH-7485-0025
(Call For Details) 		TP7KAC-07 Flat Washer
17- BH-7485-0026
(Call For Details) 		TP7KAC-08 Nut
18- BH-7485-0013
(Call For Details) 		TP7KAC-29 Long Swing Arm
19- BH-7485-0014L
(Call For Details) 		TP7KAC-23L Short Arm - Left
20- BH-7485-0014R
(Call For Details) 		TP7KAC-23R Short Arm - Right
21- BH-7485-0015
(Call For Details) 		TP7KAC-22 Swing Arm Pin
22- BH-7485-0016
(Call For Details) 		TP7KAC-24 Spindle Spring Washer
23- BH-7485-0002
(Call For Details) 		TP7KAC-27 Lifting Pad Adapter
25- BH-7485-0061
(Call For Details) 		TP7KAC-25 Hexagon Socket Screw
26- BH-7485-0003
(Call For Details) 		TP7KAC-28 Height Extension - Short
28- BH-7485-0005
(Call For Details) 		TP7KAC-40 Height Extension - Tall
29- BH-7075-03
(Call For Details) 		— 3/4” x 5-1/2” Zinc Plated Steel Wedge Anchor
29A- BH-7485-0027
(Call For Details) 		TP7KAC-38 Anchor Bolt
29B- BH-7485-0028
(Call For Details) 		TP7KAC-37 Anchor Washer
29C- BH-7485-0029
(Call For Details) 		TP7KAC-36 Anchor Nut
30- BH-7485-0044
(Call For Details) 		TP7KAC-10 Overhead Limit Cable
31- BH-7485-0043
(Call For Details) 		TP7KAC-55 Slider Block
32- BH-7485-0045
(Call For Details) 		TP7KAC-70 Hydraulic Hose Sleeve
33- BH-7485-0046
(Call For Details) 		TP7KAC-62 Hydraulic Cylinder
34- BH-7485-0047
(Call For Details) 		TP7KAC-63 Cylinder Holding Bracket
35- BH-7485-0048
(Call For Details) 		TP7KAC-72 Short Hose
36- BH-7485-0050
(Call For Details) 		TP7KAC-73 Connecting Hose
37- BH-7485-0049
(Call For Details) 		TP7KAC-76 Long Hose
38- BH-7485-0051
(Call For Details) 		TP7KAC-77 Hose Clip
39- BH-7485-0052
(Call For Details) 		TP7KAC-44 Hex Socket Screw
40- BH-7485-0053
(Call For Details) 		TP7KAC-74 T-Fitting
41- BH-7485-0054
(Call For Details) 		TP7KAC-71 Elbow Fitting
42- BH-7485-0042
(Call For Details) 		TP7KAC-75 Power Unit Fitting
43- BH-7485-0055
(Call For Details) 		TP7KAC-41 Cotter Pin
44- BH-7485-0056
(Call For Details) 		TP7KAC-33 Hex Socket Screw
45- BH-7485-0057
(Call For Details) 		TP7KAC-32 Flat Washer
46- BH-7485-0058
(Call For Details) 		TP7KAC-30 Hex Socket Screw
47- BH-7485-0059
(Call For Details) 		TP7KAC-31 Spring Washer
48- BH-7485-0060
(Call For Details) 		TP7KAC-34 Nut
49- BH-7485-0030
(Call For Details) 		TP7KAC-42 Chain (See SVI Chain Book)
50- BH-7485-0033
(Call For Details) 		TP7KAC-43 Cotter Pin
51- BH-7485-0031
(Call For Details) 		TP7KAC-49 Chain Roller Bracket
52- BH-7485-0032
(Call For Details) 		TP7KAC-46 Chain Roller
53- BH-7485-0034
(Call For Details) 		TP7KAC-47 Bearing
54- BH-7485-0035
(Call For Details) 		TP7KAC-48 Retaining Ring
55- BH-7485-0036
(Call For Details) 		TP7KAC-45 Chain Roller Shaft
56- BH-7485-0037
(Call For Details) 		TP7KAC-54 Carriage
57- BH-7485-0038
(Call For Details) 		TP7KAC-18 Hex Bolt
58- BH-7485-0039
(Call For Details) 		TP7KAC-19 Spring Washer
59- BH-7485-0040
(Call For Details) 		TP7KAC-20 Flat Washer
60- BH-7485-0041
(Call For Details) 		TP7KAC-21 Nut
62- BH-9701
(Call For Details) 		— Single Wheel Spotter Dish 10-3/4" x 15" Wide
