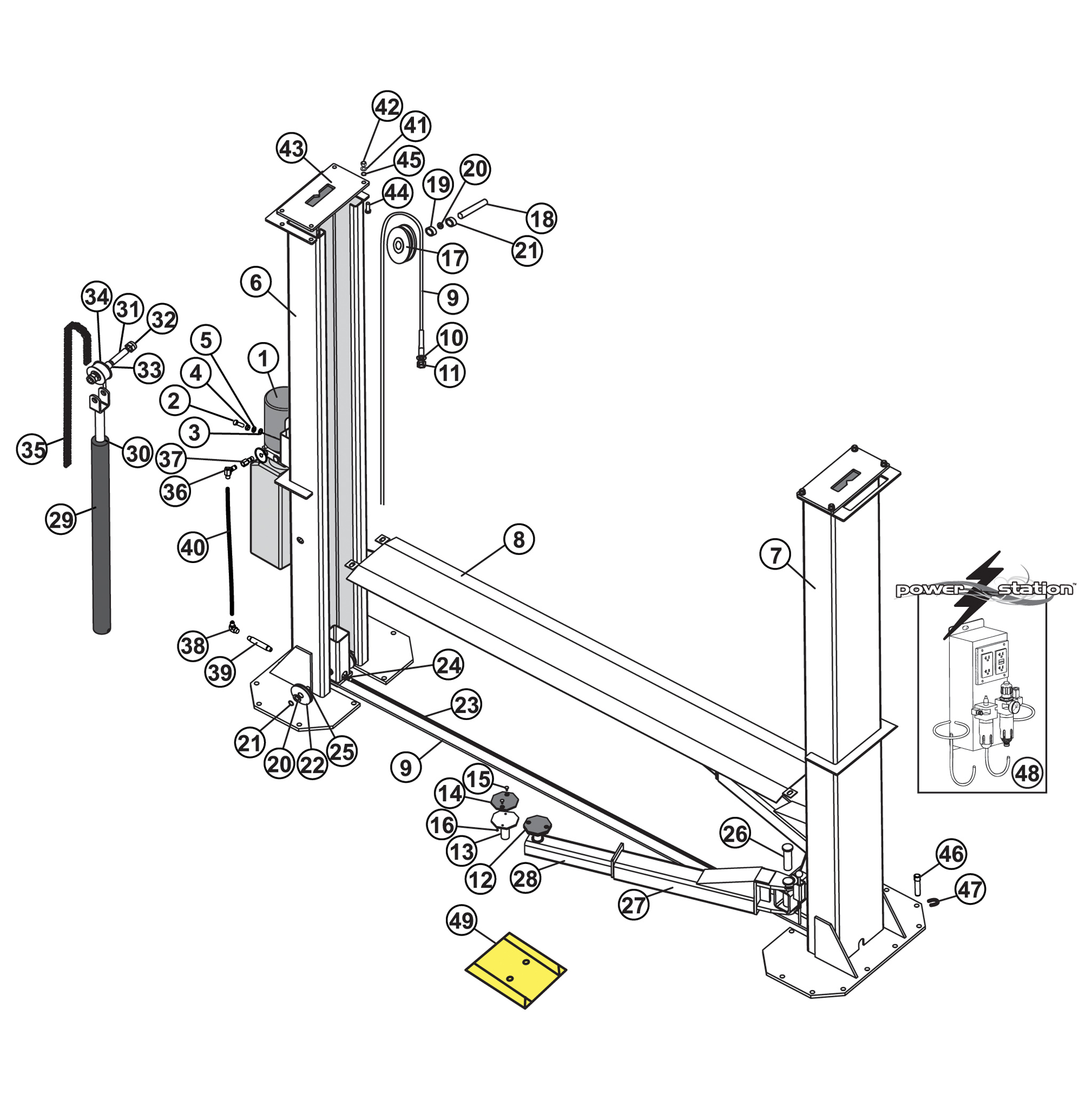

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
14- BH-7270-048 BH-7270-048 TP15KF-021 Rubber Arm Pad
29- BH-7485-0720 BH-7485-0720 TP12/15KX-8016 Hydraulic Cylinder
47- BH-7512-92 BH-7512-92 — Shim Assortment 150 Pieces (3 Sizes)
48- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
49- BH-9702 BH-9702 — Dual Wheel Spotter Dish 20-1/8” x 15” Wide
--- BH-7485-0801
(Call For Details) 		TP15KF-017 Cover Board
--- BH-7485-0802
(Call For Details) 		TP15KF-025 Board for Isolation
--- BH-7485-0803
(Call For Details) 		TP15KF-026 Ring
--- BH-7485-0804
(Call For Details) 		TP15KF-027 Shaft Bushing
--- BH-7485-0805
(Call For Details) 		TP15KF-057 Throttle
--- BH-7485-0806
(Call For Details) 		TP15KF-058 Spring
1- Call For Details — Power Unit
2- BH-7485-0758
(Call For Details) 		TP15KF-046 Bolt
3- BH-7485-0759
(Call For Details) 		TP15KF-049 Nut
4- BH-7485-0760
(Call For Details) 		TP15KF-048 Elastic Washer
5- BH-7485-0761
(Call For Details) 		TP15KF-047 Bushing
6- BH-7485-0762
(Call For Details) 		TP15KF-002 Main Side Column
7- BH-7485-0763
(Call For Details) 		TP15KF-001 Offside Column
8- BH-7485-0764
(Call For Details) 		TP15KF-066 Protective Floor Plate
9- BH-7485-0765
(Call For Details) 		TP15KF-050 Cable Assembly
10- BH-7485-0766
(Call For Details) 		TP15KF-042 Bushing
11- BH-7485-0767
(Call For Details) 		TP15KF-067 Nylock Hex Nut
12- BH-7485-0768
(Call For Details) 		TP15KF-020x Lift Adapter and Pad Assembly
13- BH-7485-0769
(Call For Details) 		TP15KF-020 Adapter Base Only
15- BH-7485-0770
(Call For Details) 		TP15KF-022 Elevator Bolt
16- BH-7485-0771
(Call For Details) 		TP15KF-023 Hex Nut
17- BH-7485-0772
(Call For Details) 		TP15KF-007 Sheave
18- BH-7485-0773
(Call For Details) 		TP15KF-003 Sheave Pin
19- BH-7485-0774
(Call For Details) 		TP15KF-008 Oilless Bushing
20- BH-7485-0775
(Call For Details) 		TP15KF-010 Shaft Washer
21- BH-7485-0776
(Call For Details) 		TP15KF-009 Bushing
22- BH-7485-0777
(Call For Details) 		TP15KF-004 Sheave
23- BH-7485-0778
(Call For Details) 		TP15KF-054 Hydraulic Hose
24- BH-7485-0779
(Call For Details) 		TP15KF-053 Hydraulic Fitting
25- BH-7485-0780
(Call For Details) 		TP15KF-005 Oilless Bushing
26- BH-7485-0781
(Call For Details) 		TP15KF-019 Swing Arm Pin
27- BH-7485-0782
(Call For Details) 		TP15KF-015 Outer Swing Arm
28- BH-7485-0783
(Call For Details) 		TP15KF-016 Inner Arm
30- BH-7485-0721
(Call For Details) 		TP12KF-X-051x Hydraulic Cylinder Seal Kit
31- BH-7485-0786
(Call For Details) 		TP15KF-064 Chain Roller Pin
32- BH-7485-0787
(Call For Details) 		TP15KF-065 Nylock Hex Nut
33- BH-7485-0788
(Call For Details) 		TP15KF-063 Oilless Bushing
34- BH-7485-0789
(Call For Details) 		TP15KF-062 Chain Roller
35- BH-7485-0790
(Call For Details) 		TP15KF-055 Chain (See SVI Chain Book)
36- BH-7485-0791
(Call For Details) 		TP15KF-051 Hydraulic Fitting
37- BH-7485-0792
(Call For Details) 		TP15KF-052 Hydraulic Pump Fitting
38- BH-7485-0793
(Call For Details) 		TP15KF-060 Elbow Fitting
39- BH-7485-0794
(Call For Details) 		TP15KF-059 Pipe Fitting
40- BH-7485-0795
(Call For Details) 		TP15KF-061 Hydraulic Hose
41- BH-7485-0796
(Call For Details) 		TP15KF-013 Elastic Washer
42- BH-7485-0797
(Call For Details) 		TP15KF-014 Nut
43- BH-7485-0798
(Call For Details) 		TP15KF-006 Top Column Cover
44- BH-7485-0799
(Call For Details) 		TP15KF-011 Bolt
45- BH-7485-0800
(Call For Details) 		TP15KF-012 Flat Washer
46- BH-7075-03
(Call For Details) 		TP15KF-068 Wedge Anchor Bolt (3/4" x 5-1/2")
49- BH-9701
(Call For Details) 		— Single Wheel Spotter Dish 10-3/4” x 15” Wide
