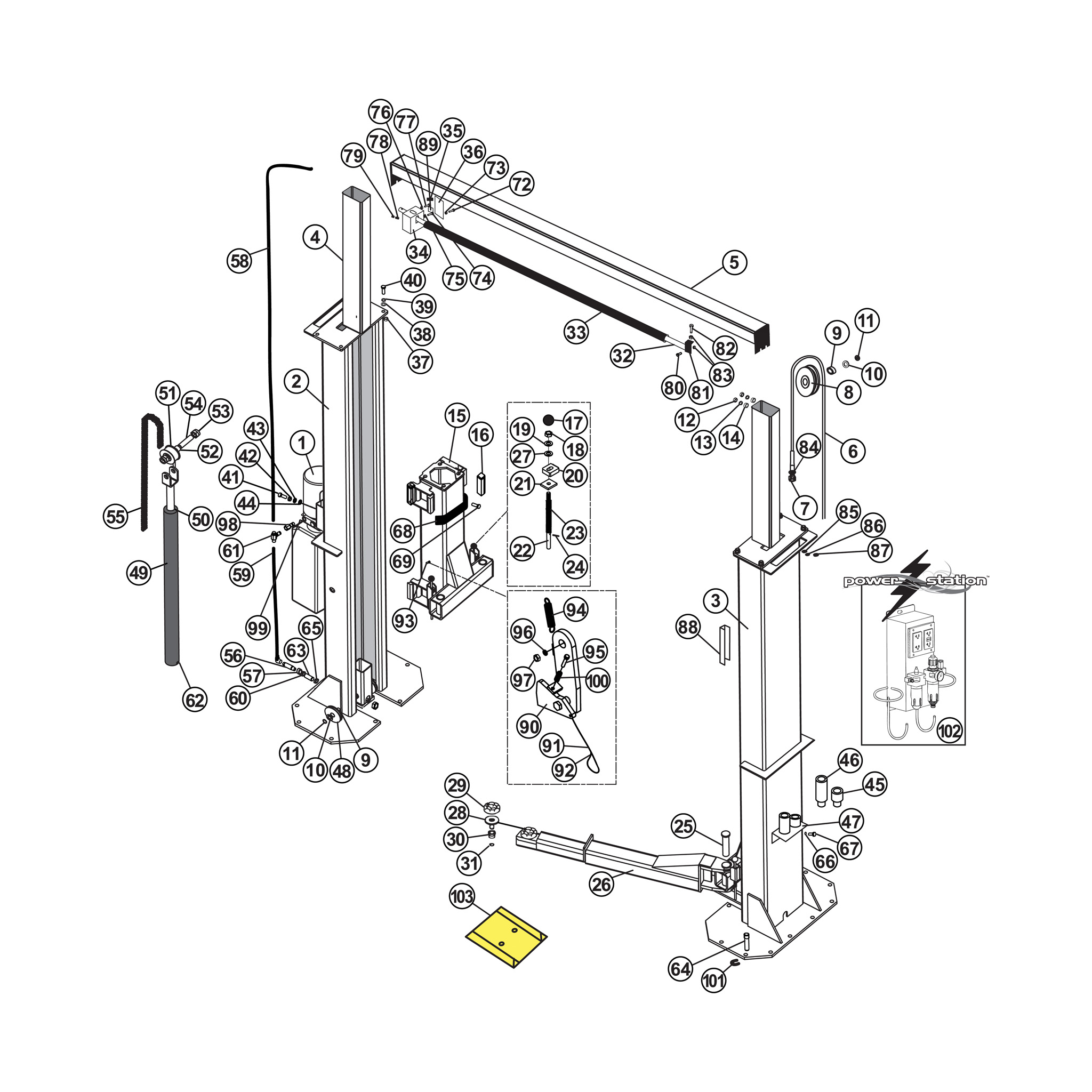

Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 29- |  |
BH-7485-0741 | TP15KC-KX-041 | Rubber Arm Pad |
| 49- |  |
BH-7485-0720 | TP15KC-KX-092 | Cylinder |
| 59- |  |
BH-7485-0710 | TP15KC-KX-078 | MS, Low Hyd. Hose - 63.2” |
| 60- |  |
BH-7485-0235 | TP15KC-KX-088 | Throttle Valve |
| 65- |  |
BH-7485-0233 | TP15KC-KX-090 | Valve Insert |
| 72- |  |
BH-7485-0218 | TP15KC-KX-012 | Screw M4x14 |
| 74- |  |
BH-7485-0212 | TP15KC-KX-016 | Screw M3x20 |
| 75- |  |
BH-7485-0213 | TP15KC-KX-017 | Nut M3 |
| 76- |  |
BH-7485-0210 | TP15KC-KX-020 | Screw M4x25 |
| 77- |  |
BH-7485-0211 | TP15KC-KX-021 | Nut M4 |
| 78- |  |
BH-7485-0208 | TP15KC-KX-022 | Cable Connector |
| 81- |  |
BH-7485-0203 | TP15KC-KX-028 | Bracket, OH Shut-Off Bar |
| 88- |  |
BH-7485-0193 | TP15KC-KX-066 | Hose Cover |
| 98- |  |
BH-7485-0226 | TP15KC-KX-079 | Pump Hyd. Fitting |
| 101- |  |
BH-7512-92 | — | Shims 150 Pieces (3 Sizes) |
| 102- |  |
BH-7070-K | SVI Exclusive | Power Station (for 2-Post Lift) |
| 103- |  |
BH-9702 | — | Dual Wheel Spotter Dish 20-1/8” x 15” Wide |
| 1- | Call For Details | — | Power Unit 220V | |
| 2- |
BH-7485-0872 (Call For Details) |
TP15KC-KX-001 | Column - Main Side | |
| 3- |
BH-7485-0873 (Call For Details) |
TP15KC-KX-002 | Column - Offside | |
| 4- |
BH-7485-0874 (Call For Details) |
TP15KC-KX-003 | Column Extension | |
| 5- |
BH-7485-0876 (Call For Details) |
TP15KC-KX-032 | Overhead Beam | |
| 6- |
BH-7485-0893 (Call For Details) |
TP15KC-KX-036 | Equalizer Cable 487.4” Long | |
| 7- |
BH-7485-0857 (Call For Details) |
TP15KC-KX-038 | Self-Lock Nut M20 | |
| 8- |
BH-7485-0871 (Call For Details) |
TP15KC-KX-074 | Cable Pulley – Upper | |
| 9- |
BH-7485-0717 (Call For Details) |
TP15KC-KX-063 | Bushing | |
| 10- |
BH-7485-0865 (Call For Details) |
TP15KC-KX-064 | Flat Washer D24 | |
| 11- |
BH-7485-0858 (Call For Details) |
TP15KC-KX-065 | Retaining Ring | |
| 12- |
BH-7485-0851 (Call For Details) |
TP15KC-KX-033 | Nut M12 | |
| 13- |
BH-7485-0859 (Call For Details) |
TP15KC-KX-034 | Lock Washer | |
| 14- |
BH-7485-0863 (Call For Details) |
TP15KC-KX-035 | Flat Washer D12 | |
| 15- |
BH-7485-0744 (Call For Details) |
TP15KC-KX-045 | Carriage (12/15KX) | |
| 16- |
BH-7485-0745 (Call For Details) |
TP15KC-KX-046 | Sliding Rub Block | |
| 17- |
BH-7485-0886 (Call For Details) |
TP15KC-KX-049 | Pull Knob, Arm Restraint | |
| 18- | Call For Details | — | Nut M10 | |
| 19- |
BH-7485-0748 (Call For Details) |
TP15KC-KX-051 | Lock Washer D10 | |
| 20- |
BH-7485-0750 (Call For Details) |
TP15KC-KX-052.1 | Arm Restraint Gear Bar | |
| 21- |
BH-7485-0751 (Call For Details) |
TP15KC-KX-052.2 | Arm Restraint Plate | |
| 22- |
BH-7485-0753 (Call For Details) |
TP15KC-KX-053 | Arm Restraint Rod | |
| 23- |
BH-7485-0752 (Call For Details) |
TP15KC-KX-054 | Arm Restraint Spring | |
| 24- |
BH-7485-0754 (Call For Details) |
TP15KC-KX-055 | Cotter Pin | |
| 25- |
BH-7485-0718 (Call For Details) |
TP15KC-KX-039 | Swing Arm Pin (12/15KX) | |
| 26- |
BH-7485-0719 (Call For Details) |
TP15KC-KX-011 | Symmetric Swing Arm | |
| 27- |
BH-7485-0862 (Call For Details) |
TP15KC-KX-052 | Flat Washer D10 | |
| 28- |
BH-7485-0739 (Call For Details) |
TP15KC-KX-042 | Adapter Base Only | |
| 30- |
BH-7485-0740 (Call For Details) |
TP15KC-KX-043 | Adapter Nut / Collar | |
| 31- |
BH-7485-0742 (Call For Details) |
TP15KC-KX-044 | Retaining Ring | |
| 32- |
BH-7485-0205 (Call For Details) |
TP15KC-KX-030 | OH Shut-Off Bar | |
| 33- |
BH-7485-0885 (Call For Details) |
TP15KC-KX-031 | Cushion, Shut-Off Bar | |
| 34- |
BH-7485-0884 (Call For Details) |
TP15KC-KX-024 | Switch Box, OH Shut-Off | |
| 35- |
BH-7485-0881 (Call For Details) |
TP15KC-KX-018 | OH Shut-Off Kill Switch | |
| 36- |
BH-7485-0880 (Call For Details) |
TP15KC-KX-015 | Cover | |
| 37- |
BH-7485-0852 (Call For Details) |
TP15KC-KX-070 | Nut M16 | |
| 38- |
BH-7485-0860 (Call For Details) |
TP15KC-KX-069 | Lock Washer D16 | |
| 39- |
BH-7485-0864 (Call For Details) |
TP15KC-KX-068 | Flat Washer D16 | |
| 40- |
BH-7485-0850 (Call For Details) |
TP15KC-KX-067 | Bolt M16x55 | |
| 41- |
BH-7485-0734 (Call For Details) |
TP15KC-KX-082 | Bolt M8x25 | |
| 42- |
BH-7485-0156 (Call For Details) |
TP15KC-KX-083 | Flat Washer D8 | |
| 43- |
BH-7485-0861 (Call For Details) |
TP15KC-KX-084 | Lock Washer D8 | |
| 44- |
BH-7485-0854 (Call For Details) |
TP15KC-KX-085 | Nut M8 | |
| 45- |
BH-7485-0879 (Call For Details) |
TP15KC-KX-004 | 3” Nesting Height Extension | |
| 46- |
BH-7485-0878 (Call For Details) |
TP15KC-KX-005 | 5” Nesting Height Extension | |
| 47- |
BH-7485-0877 (Call For Details) |
TP15KC-KX-006 | Adapter Bracket | |
| 48- |
BH-7485-0714 (Call For Details) |
TP15KC-KX-062 | Cable Pulley - Lower | |
| 50- |
BH-7485-0721 (Call For Details) |
— | Hydraulic Cylinder Seal Kit | |
| 51- |
BH-7485-0725 (Call For Details) |
TP15KC-KX-096 | Chain Roller | |
| 52- |
BH-7485-0891 (Call For Details) |
TP15KC-KX-095 | Bushing | |
| 53- |
BH-7485-0723 (Call For Details) |
TP15KC-KX-093 | Self-Lock Nut M30 | |
| 54- |
BH-7485-0722 (Call For Details) |
TP15KC-KX-094 | Pin | |
| 55- |
BH-7485-0892 (Call For Details) |
TP15KC-KX-097 | Chain (See SVI Chain Book) | |
| 56- |
BH-7485-0728 (Call For Details) |
TP15KC-KX-086 | Hex Pipe Fitting | |
| 57- |
BH-7485-0890 (Call For Details) |
TP15KC-KX-087 | Combined Bushing | |
| 58- |
BH-7485-0875 (Call For Details) |
TP15KC-KX-075 | Overhead Hyd. Hose 429.1” | |
| 61- | Call For Details | — | Hyd. T-Fitting | |
| 62- |
BH-7485-0237 (Call For Details) |
TP15KC-KX-091 | Cap Nut M14 | |
| 63- |
BH-7485-0727 (Call For Details) |
TP15KC-KX-089 | Valve Spring | |
| 64- |
BH-7075-03 (Call For Details) |
TP15KC-KX-010 | Wedge Anchor Bolt | |
| 66- |
BH-7485-0230 (Call For Details) |
TP15KC-KX-007 | Flat Washer D8 | |
| 67- |
BH-7485-0155 (Call For Details) |
TP15KC-KX-008 | Screw M8x10 | |
| 68- |
BH-7485-0171 (Call For Details) |
TP15KC-KX-047 | Rubber Door Guard | |
| 69- |
BH-7485-0170 (Call For Details) |
TP15KC-KX-027 | Screw M8x35 | |
| 70- |
BH-7485-0698 (Call For Details) |
TP15KC-KX-077 | MS, Short, Hyd. Hose - 13.4” | |
| 71- |
BH-7485-0732 (Call For Details) |
TP15KC-KX-009 | Rubber Grommet | |
| 73- |
BH-7485-0866 (Call For Details) |
TP15KC-KX-013 | Flat Washer D4 | |
| 79- |
BH-7485-0883 (Call For Details) |
TP15KC-KX-023 | Cable, OH Shut-Off | |
| 80- |
BH-7485-0170 (Call For Details) |
TP15KC-KX-027 | Screw M8x35 | |
| 82- |
BH-7485-0855 (Call For Details) |
TP15KC-KX-025 | Screw M6x25 | |
| 83- |
BH-7485-0853 (Call For Details) |
TP15KC-KX-026 | Nut M6 | |
| 84- |
BH-7485-0185 (Call For Details) |
TP15KC-KX-059 | Flat Washer D20 | |
| 85- |
BH-7485-0856 (Call For Details) |
TP15KC-KX-071 | Screw M6x10 | |
| 86- |
BH-7485-0867 (Call For Details) |
TP15KC-KX-072 | Flat Washer | |
| 87- |
BH-7485-0868 (Call For Details) |
TP15KC-KX-073 | Hose Clamp | |
| 89- |
BH-7485-0882 (Call For Details) |
TP15KC-KX-019 | Plate | |
| 90- |
BH-7485-0184 (Call For Details) |
TP15KC-KX-056 | Lock Latch | |
| 91- |
BH-7485-0870 (Call For Details) |
TP15KC-KX-056.1 | Lock Release Cable | |
| 92- |
BH-7485-0869 (Call For Details) |
TP15KC-KX-056.2 | Sleeve | |
| 93- |
BH-7485-0888 (Call For Details) |
TP15KC-KX-060.1 | Bolt 3/4-16 | |
| 94- |
BH-7485-0755 (Call For Details) |
TP15KC-KX-061 | Spring | |
| 95- |
BH-7485-0186 (Call For Details) |
TP15KC-KX-058 | Screw M6x30 | |
| 96- |
BH-7485-0185 (Call For Details) |
TP15KC-KX-059 | Flat Washer | |
| 97- |
BH-7485-0887 (Call For Details) |
TP15KC-KX-060 | Self-Lock Nut 3/4-16 | |
| 99- |
BH-7485-0889 (Call For Details) |
TP15KC-KX-080 | O-Ring | |
| 100- |
BH-7485-0187 (Call For Details) |
TP15KC-KX-057 | Spring | |
| 103- |
BH-9701 (Call For Details) |
— | Single Wheel Spotter Dish 10-3/4” x 15” Wide |
