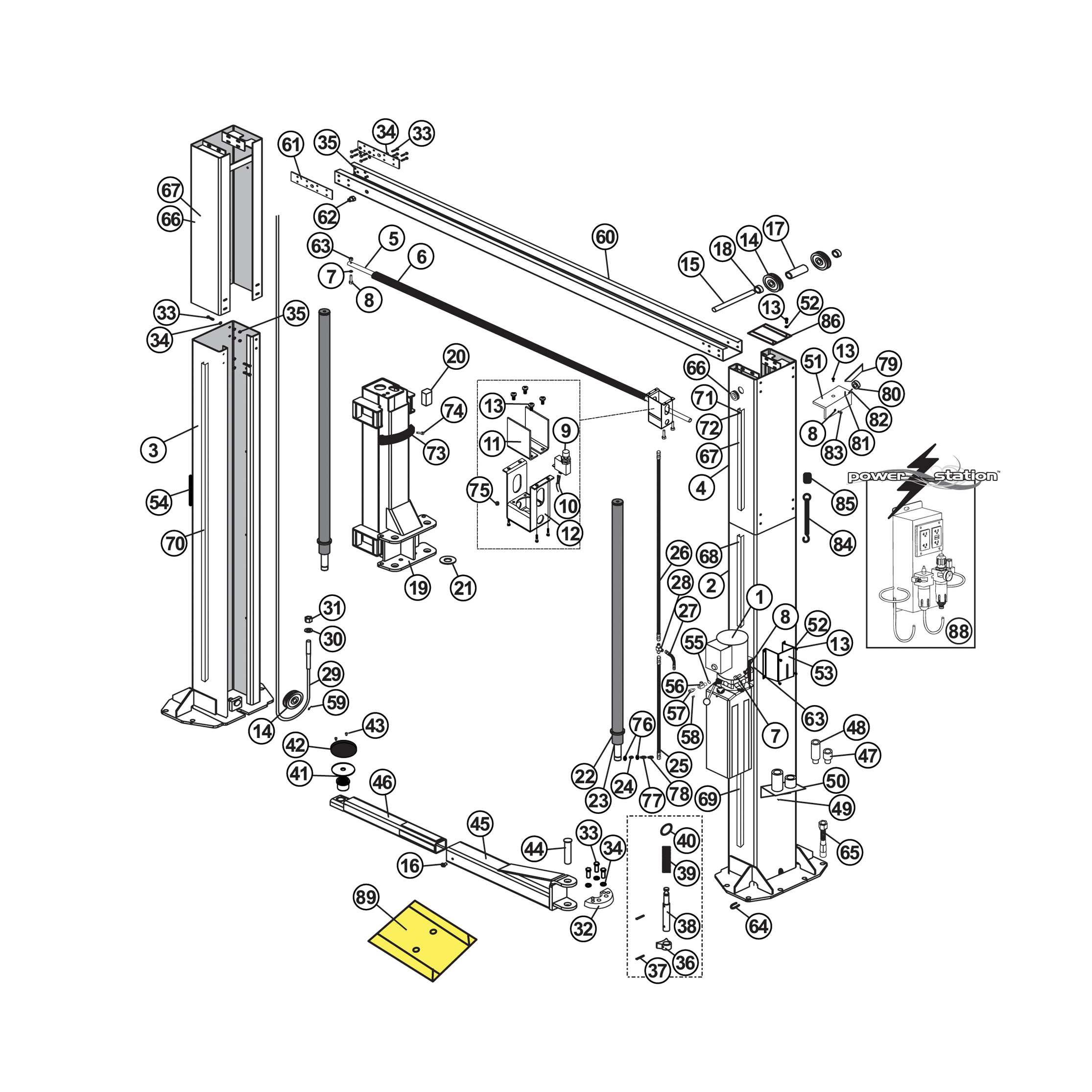

Tuxedo TP12KSC-DX

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
9-		BH-7485-0349	TP12KSC-DX-042	Limit Switch
22-		BH-7485-0554	TP12KSC-DX-026A	Hydraulic Cylinder
23-		BH-7485-0555	TP12KSC-DX-026Ax	Seal Kit for Hydraulic Cylinder
25-		BH-7485-0582	TP12KSC-DX-047	Hydraulic Hose, 71"
28-		BH-7485-0306	TP12KSC-DX-046	Tee Fitting
29-		BH-7485-0585	TP12KSC-DX-073	Equalizer Cable, 38' 1-1/2"
32-		BH-7485-0321	TP12KSC-DX-064	Arm Restraint Main Gear
36-		BH-7485-0322	TP12KSC-DX-066	Arm Restraint Engage Gear
37-		BH-7485-0319	TP12KSC-DX-065	Cotter Pin, D6 x 38mm
42-		BH-7485-0340	TP12KSC-DX-059.1	Rubber Pad
64-		BH-7512-92	TP12KSC-DX-002	Shim Assortment 150 Pieces (3 Sizes)
79-		BH-7485-0372	TP12KSC-DX-111	Latch Release Bracket
80-		BH-7485-0373	TP12KSC-DX-103	Lock Release Cable Pulley
81-		BH-7485-0550	TP12KSC-DX-014	Split Pin
82-		BH-7485-0374	TP12KSC-DX-104	Pin
88-		BH-7070-K	SVI Exclusive	Power Station (for 2-Post Lift)
89-		BH-9702	—	Dual Wheel Spotter Dish 20-1/8” x 15” Wide
1-		Call For Details	—	Power Unit
2-		BH-7485-0843 (Call For Details)	TP12KSC-DX-053.1	Mainside Column
3-		BH-7485-0849 (Call For Details)	TP12KSC-DX-001.1	Offside Column
4-		BH-7485-0848 (Call For Details)	TP12KSC-DX-036.1	Column Extension
5-		BH-7485-0293 (Call For Details)	TP12KSC-DX-021	Overhead Shut-Off Bar
6-		BH-7485-0292 (Call For Details)	TP12KSC-DX-023	Cushion, Shutoff Bar
7-		BH-7485-0352 (Call For Details)	TP12KSC-DX-019	Bolt, M8 x 40mm
8-		BH-7485-0571 (Call For Details)	TP12KSC-DX-020	Washer, D8
10-		BH-7485-0572 (Call For Details)	TP12KSC-DX-043	Limit Switch Wiring
11-		BH-7485-0384 (Call For Details)	TP12KSC-DX-040	Cover Plate, Limit Switch
12-		BH-7485-0833 (Call For Details)	TP12KSC-DX-041	Housing, Limit Switch
13-		BH-7485-0350 (Call For Details)	TP12KSC-DX-039	Screw, M6 x 12mm
14-		BH-7485-0574 (Call For Details)	TP12KSC-DX-034	Cable Sheave / Pulley
15-		BH-7485-0575 (Call For Details)	TP12KSC-DX-035	Pulley Shaft
16-		BH-7485-0594 (Call For Details)	TP12KSC-DX-058	Elevator Bolt, M10 x 16mm
17-		BH-7485-0576 (Call For Details)	TP12KSC-DX-033	Spacer 2#
18-		BH-7485-0577 (Call For Details)	TP12KSC-DX-032	Spacer 1#
19-		BH-7485-0578 (Call For Details)	TP12KSC-DX-025	Carriage
20-		BH-7485-0579 (Call For Details)	TP12KSC-DX-024	Slider Block
21-		BH-7485-0580 (Call For Details)	TP12KSC-DX-078	Flat Washer
24-		BH-7485-0838 (Call For Details)	TP12KSC-DX-070.1	Cylinder Fitting
26-		BH-7485-0583 (Call For Details)	TP12KSC-DX-045	Hydraulic Hose, 33' 1"
27-		BH-7485-0584 (Call For Details)	TP12KSC-DX-044	Hydraulic Hose, 8-1/4"
30-		Call For Details	—	Washer, D16
31-		BH-7485-0407 (Call For Details)	TP12KSC-DX-071	Nut, M16
33-		BH-7485-0586 (Call For Details)	TP12KSC-DX-027	Bolt, M10 x 40mm
34-		BH-7485-0587 (Call For Details)	TP12KSC-DX-028	Flat Washer, D10
35-		BH-7485-0588 (Call For Details)	TP12KSC-DX-029	Nut, M10
38-		BH-7485-0589 (Call For Details)	TP12KSC-DX-067	Arm Restraint Shaft
39-		BH-7485-0590 (Call For Details)	TP12KSC-DX-068	Arm Restraint Spring
40-		BH-7485-0591 (Call For Details)	TP12KSC-DX-069	Pull Ring
41-		BH-7485-0844 (Call For Details)	TP12KSC-DX-060.1	Lift Pad Adapter Base
43-		BH-7485-0828 (Call For Details)	TP12KSC-DX-112	Screw, M8 x 16mm
44-		BH-7485-0627 (Call For Details)	TP12KSC-DX-063	Swing Arm Pin
45-		BH-7485-0596 (Call For Details)	TP12KSC-DX-062	Swing Arm
46-		BH-7485-0847 (Call For Details)	TP12KSC-DX-061.1	Inner Swing Arm
47-		BH-7485-0835 (Call For Details)	TP12KSC-DX-004.1	2.6" Nesting Height Extension
48-		BH-7485-0834 (Call For Details)	TP12KSC-DX-005.1	5" Nesting Height Extension
49-		BH-7485-0566 (Call For Details)	TP12KSC-DX-026.12	Screw, M8 x 10mm
50-		BH-7485-0839 (Call For Details)	TP12KSC-DX-096	Height Extension Adapter Bracket
51-		BH-7485-0840 (Call For Details)	TP12KSC-DX-110	Mount Bracket
52-		BH-7485-0274 (Call For Details)	TP12KSC-DX-048	Flat Washer, D6
53-		BH-7485-0836 (Call For Details)	TP12KSC-DX-049.1	Latch Cover
54-		BH-7485-0837 (Call For Details)	TP12KSC-DX-049.2	Latch Cover
55-		BH-7485-0367 (Call For Details)	TP12KSC-DX-074	O-Ring, D11.8 x D1.8
56-		BH-7485-0606 (Call For Details)	TP12KSC-DX-075	Tee Fitting
57-		BH-7485-0607 (Call For Details)	TP12KSC-DX-076	Quick Fitting
58-		BH-7485-0608 (Call For Details)	TP12KSC-DX-077	Close Nut
59-		BH-7485-0370 (Call For Details)	TP12KSC-DX-084	Pin
60-		BH-7485-0609 (Call For Details)	TP12KSC-DX-018	Overhead Crossbeam
61-		BH-7485-0610 (Call For Details)	TP12KSC-DX-030	Connecting Plate
62-		BH-7485-0611 (Call For Details)	TP12KSC-DX-031	Cable Nut, M16
63-		BH-7485-0334 (Call For Details)	TP12KSC-DX-022	Lock Nut, M8
65-		Call For Details	—	Wedge Anchor Bolt, 3/4" x 7"
66-		BH-7485-0302 (Call For Details)	TP12KSC-DX-095	Rubber Grommet
67-		BH-7485-0626 (Call For Details)	TP12KSC-DX-094	Hose Cover, Upper MS
68-		BH-7485-0621 (Call For Details)	TP12KSC-DX-089	Hose Cover, Middle MS
69-		BH-7485-0622 (Call For Details)	TP12KSC-DX-090	Hose Cover, Lower MS
70-		BH-7485-0623 (Call For Details)	TP12KSC-DX-091	Hose Cover, OS
71-		BH-7485-0620 (Call For Details)	TP12KSC-DX-088	Flat Washer, D10
72-		BH-7485-0619 (Call For Details)	TP12KSC-DX-087	Screw, M4 x 40mm
73-		BH-7485-0625 (Call For Details)	TP12KSC-DX-093	Rubber Door Guard
74-		BH-7485-0624 (Call For Details)	TP12KSC-DX-092	Screw, M8 x 40mm
75-		BH-7485-0618 (Call For Details)	TP12KSC-DX-085	Cable Nut
76-		BH-7485-0831 (Call For Details)	TP12KSC-DX-081	Combined Washer
77-		BH-7485-0616 (Call For Details)	TP12KSC-DX-082	Throttle Valve
78-		BH-7485-0581 (Call For Details)	TP12KSC-DX-083	Connector Fitting
83-		BH-7485-0368 (Call For Details)	TP12KSC-DX-086	Bolt, M8 x 30mm
84-		BH-7485-0377 (Call For Details)	TP12KSC-DX-108	Turnbuckle
85-		BH-7485-0376 (Call For Details)	TP12KSC-DX-109	Cable Lock
86-		BH-7485-0615 (Call For Details)	TP12KSC-DX-080	Cover
87-		BH-7485-0827 (Call For Details)	TP12KSC-DX-113	Screw, M6 x 18mm
89-		BH-9701 (Call For Details)	—	Single Wheel Spotter Dish 10-3/4” x 15” Wide
