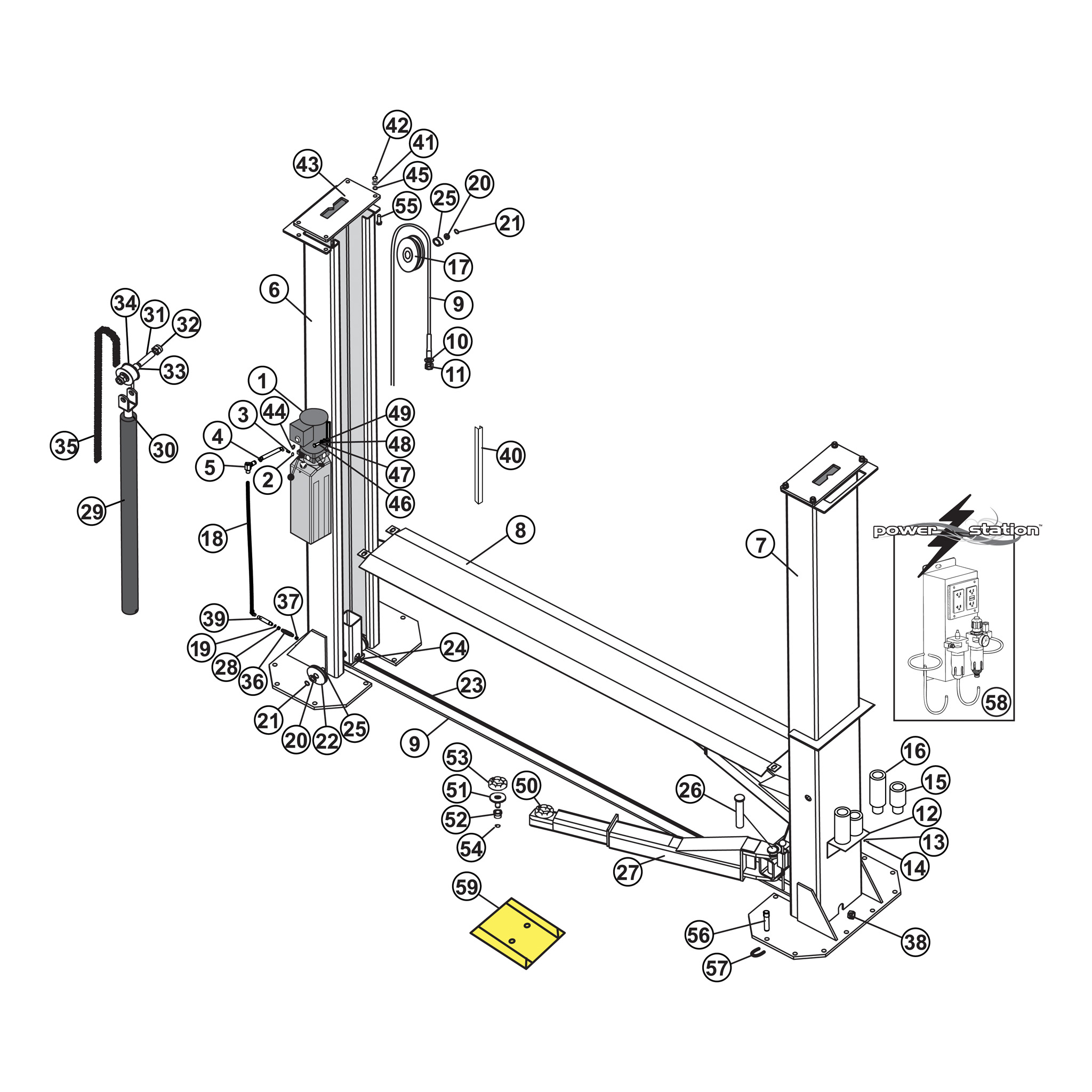

Click on the part number for more information

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
3- BH-7485-0226 BH-7485-0226 TP12KF-X-058 Hydraulic Fitting
9- BH-7485-0703 BH-7485-0703 TP12KF-X-046 Cable Assembly 371.2”
18- BH-7485-0710 BH-7485-0710 TP12KF-X-061 MS, Low Hydraulic Hose 63.2”
23- BH-7485-0715 BH-7485-0715 TP12KF-X-068 Lower, Hydraulic Hose 120.9”
28- BH-7485-0235 BH-7485-0235 TP12KF-X-064 Throttle Valve
29- BH-7485-0720 BH-7485-0720 TP12KF-X-051 Cylinder
37- BH-7485-0233 BH-7485-0233 TP12KF-X-066 Valve Insert
40- BH-7485-0193 BH-7485-0193 TP15KC-KX-066 Hose Cover
53- BH-7485-0741 BH-7485-0741 TP12KF-X-009 Rubber Arm Pad
57- BH-7512-92 BH-7512-92 — Shim Assortment 150 Pieces (3 Sizes)
58- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
59- BH-9702 BH-9702 — Dual Wheel Spotter Dish 20-1/8” x 15” Wide
1- Call For Details — Power Unit 220V
2- BH-7485-0697
(Call For Details) 		TP12KF-X-057 O-Ring
4- BH-7485-0698
(Call For Details) 		TP12KF-X-059 MS, Short, Hydraulic Hose 13.4”
5- BH-7485-0699
(Call For Details) 		TP12KF-X-060 90° Elbow Hydraulic Fitting
6- BH-7485-0700
(Call For Details) 		TP12KF-X-001 Main Side Column
7- BH-7485-0701
(Call For Details) 		TP12KF-X-002 Offside Column
8- BH-7485-0702
(Call For Details) 		TP12KF-X-003 Floor Plate
10- BH-7485-0704
(Call For Details) 		TP12KF-X-047 Washer
11- BH-7485-0705
(Call For Details) 		TP12KF-X-048 Nylock Hex Nut
12- BH-7485-0706
(Call For Details) 		TP12KF-X-041 Adapter Bracket for 12/15KX
13- BH-7485-0230
(Call For Details) 		TP12KF-X-039 Flat Washer D8
14- BH-7485-0155
(Call For Details) 		TP12KF-X-040 Screw
15- BH-7485-0707
(Call For Details) 		TP12KF-X-043 3" Height Extension for 12/15KX
16- BH-7485-0708
(Call For Details) 		TP12KF-X-042 5" Height Extension for 12/15KX
17- BH-7485-0709
(Call For Details) 		TP12KF-X-038 Cable Pulley - Upper
19- BH-7485-0711
(Call For Details) 		TP12KF-X-063 Combined Bushing
20- BH-7485-0712
(Call For Details) 		TP12KF-X-030 Flat Washer
21- BH-7485-0713
(Call For Details) 		TP12KF-X-029 Retaining Ring
22- BH-7485-0714
(Call For Details) 		TP12KF-X-031 Cable Pulley - Lower
24- BH-7485-0716
(Call For Details) 		TP12KF-X-067 Hyd. Fitting
25- BH-7485-0717
(Call For Details) 		TP12KF-X-032 Bushing
26- BH-7485-0718
(Call For Details) 		TP12KF-X-010 Swing Arm Pin 12/15KX
27- BH-7485-0719
(Call For Details) 		TP12KF-X-004 Symmetric Swing Arm 12/15KX
30- BH-7485-0721
(Call For Details) 		TP12KF-X-051x Hydraulic Cylinder Seal Kit
31- BH-7485-0722
(Call For Details) 		TP12KF-X-070 Pin
32- BH-7485-0723
(Call For Details) 		TP12KF-X-069 Lock Nut M30
33- BH-7485-0724
(Call For Details) 		TP12KF-X-071 Bushing
34- BH-7485-0725
(Call For Details) 		TP12KF-X-072 Chain Roller
35- BH-7485-0726
(Call For Details) 		TP12KF-X-052 Chain
36- BH-7485-0727
(Call For Details) 		TP12KF-X-065 Valve Spring
38- BH-7485-0237
(Call For Details) 		TP12KF-X-073 Cap Plug
39- BH-7485-0728
(Call For Details) 		TP12KF-X-062 Hex Pipe Fitting
41- BH-7485-0729
(Call For Details) 		TP12KF-X-035 Lock Washer
42- BH-7485-0730
(Call For Details) 		TP12KF-X-036 Nut
43- BH-7485-0731
(Call For Details) 		TP12KF-X-037 Top Plate 12KX
44- BH-7485-0732
(Call For Details) 		TP12KF-X-049 Rubber Grommet
45- BH-7485-0733
(Call For Details) 		TP12KF-X-034 Flat Washer
46- BH-7485-0734
(Call For Details) 		TP12KF-X-053 Bolt
47- BH-7485-0735
(Call For Details) 		TP12KF-X-054 Flat Washer
48- BH-7485-0736
(Call For Details) 		TP12KF-X-055 Lock Washer
49- BH-7485-0737
(Call For Details) 		TP12KF-X-056 Nut
50- BH-7485-0738
(Call For Details) 		— Lift Adapter with Pad
51- BH-7485-0739
(Call For Details) 		TP12KF-X-008 Adapter Base Only
52- BH-7485-0740
(Call For Details) 		TP12KF-X-007 Adapter Nut / Collar
54- BH-7485-0742
(Call For Details) 		TP12KF-X-006 Retaining Ring
55- BH-7485-0743
(Call For Details) 		TP12KF-X-033 Bolt
56- BH-7075-03
(Call For Details) 		TP12KF-X-044 Wedge Anchor Bolt (3/4" x 5-1/2")
59- BH-9701
(Call For Details) 		— Single Wheel Spotter Dish 10-3/4” x 15” Wide
