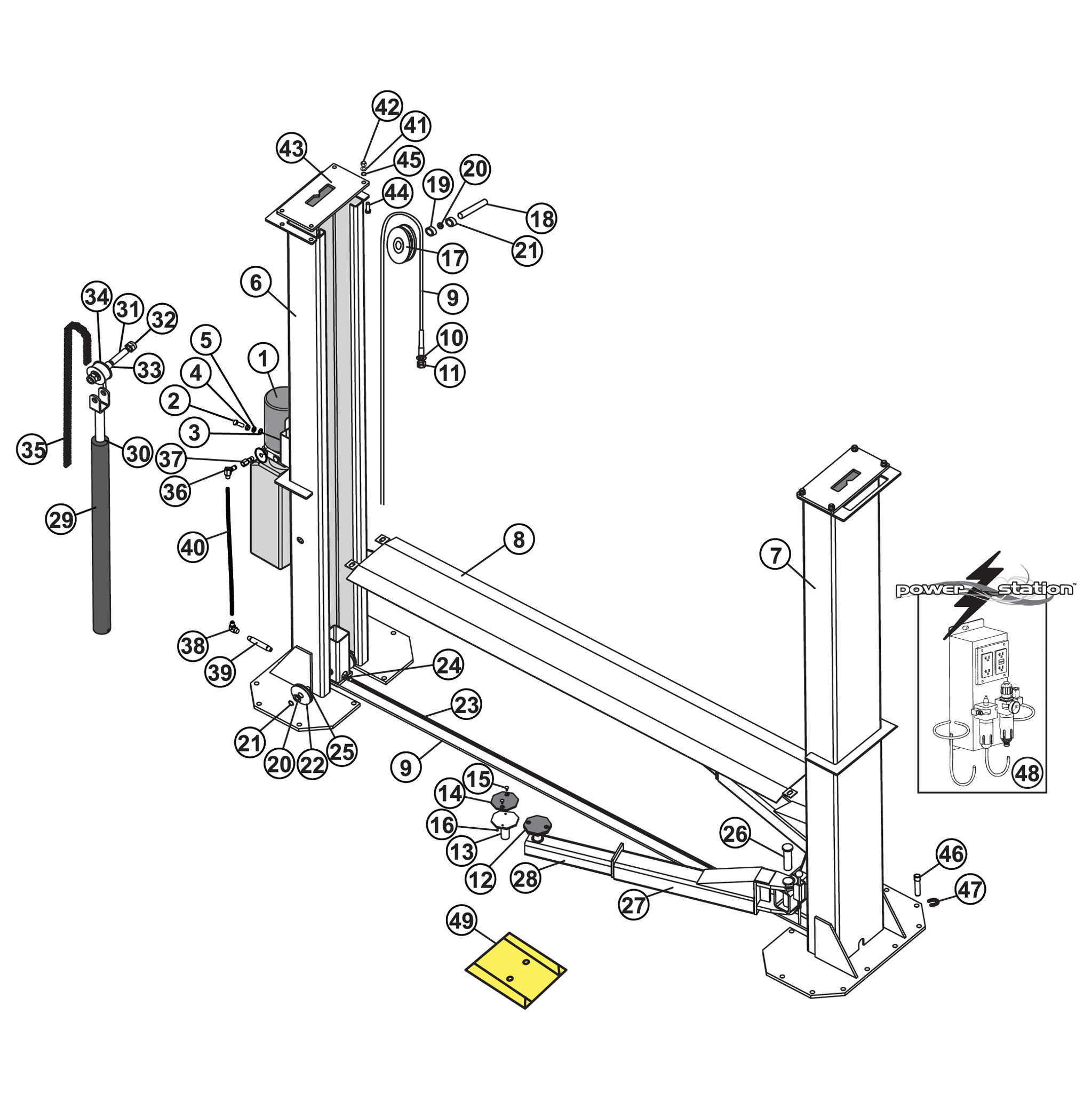

Click on the part number for more information

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
9- BH-7485-0635 BH-7485-0635 TP12KF-050 Cable Assembly
14- BH-7270-048 BH-7270-048 TP12KF-021 Rubber Arm Pad
47- BH-7512-92 BH-7512-92 — Shim Assortment 150 Pieces (3 Sizes)
48- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
49- BH-9702 BH-9702 — Dual Wheel Spotter Dish 20-1/8” x 15” Wide
--- BH-7485-0671
(Call For Details) 		TP12KF-017 Cover Board
--- BH-7485-0674
(Call For Details) 		TP12KF-025 Board for Isolation
--- BH-7485-0675
(Call For Details) 		TP12KF-026 Ring
--- BH-7485-0676
(Call For Details) 		TP12KF-027 Shaft Bushing
--- BH-7485-0693
(Call For Details) 		TP12KF-057 Throttle
--- BH-7485-0694
(Call For Details) 		TP12KF-058 Spring
1- Call For Details — Power Unit
2- BH-7485-0628
(Call For Details) 		TP12KF-046 Bolt
3- BH-7485-0629
(Call For Details) 		TP12KF-049 Nut
4- BH-7485-0630
(Call For Details) 		TP12KF-048 Elastic Washer
5- BH-7485-0631
(Call For Details) 		TP12KF-047 Bushing
6- BH-7485-0632
(Call For Details) 		TP12KF-002 Main Side Column
7- BH-7485-0633
(Call For Details) 		TP12KF-001 Offside Column
8- BH-7485-0634
(Call For Details) 		TP12KF-066 Protective Floor Plate
10- BH-7485-0636
(Call For Details) 		TP12KF-042 Bushing
11- BH-7485-0637
(Call For Details) 		TP12KF-067 Nylock Hex Nut
12- BH-7485-0638
(Call For Details) 		TP12KF-020x Lift Adapter and Pad Assembly
13- BH-7485-0639
(Call For Details) 		TP12KF-020 Adapter Base Only
15- BH-7485-0640
(Call For Details) 		TP12KF-022 Elevator Bolt
16- BH-7485-0641
(Call For Details) 		TP12KF-023 Hex Nut
17- BH-7485-0642
(Call For Details) 		TP12KF-007 Sheave
18- BH-7485-0643
(Call For Details) 		TP12KF-003 Sheave Pin
19- BH-7485-0644
(Call For Details) 		TP12KF-008 Oilless Bushing
20- BH-7485-0645
(Call For Details) 		TP12KF-010 Shaft Washer
21- BH-7485-0646
(Call For Details) 		TP12KF-009 Bushing
22- BH-7485-0647
(Call For Details) 		TP12KF-004 Sheave
23- BH-7485-0648
(Call For Details) 		TP12KF-054 Hydraulic Hose
24- BH-7485-0649
(Call For Details) 		TP12KF-053 Hydraulic Fitting
25- BH-7485-0650
(Call For Details) 		TP12KF-005 Oilless Bushing
26- BH-7485-0651
(Call For Details) 		TP12KF-019 Swing Arm Pin
27- BH-7485-0652
(Call For Details) 		TP12KF-015 Outer Swing Arm
28- BH-7485-0653
(Call For Details) 		TP12KF-016 Inner Arm
29- BH-7485-0654
(Call For Details) 		TP12KF-056 Hydraulic Cylinder
30- Call For Details — Hydraulic Cylinder Seal Kit
31- BH-7485-0656
(Call For Details) 		TP12KF-064 Chain Roller Pin
32- BH-7485-0657
(Call For Details) 		TP12KF-065 Nylock Hex Nut
33- BH-7485-0658
(Call For Details) 		TP12KF-063 Oilless Bushing
34- BH-7485-0659
(Call For Details) 		TP12KF-062 Chain Roller
35- BH-7485-0660
(Call For Details) 		TP12KF-055 Chain (See SVI Chain Book)
36- BH-7485-0661
(Call For Details) 		TP12KF-051 Hydraulic Fitting
37- BH-7485-0662
(Call For Details) 		TP12KF-052 Hydraulic Pump Fitting
38- BH-7485-0663
(Call For Details) 		TP12KF-060 Elbow Fitting
39- BH-7485-0664
(Call For Details) 		TP12KF-059 Pipe Fitting
40- BH-7485-0665
(Call For Details) 		TP12KF-061 Hydraulic Hose
41- BH-7485-0666
(Call For Details) 		TP12KF-013 Elastic Washer
42- BH-7485-0667
(Call For Details) 		TP12KF-014 Nut
43- BH-7485-0668
(Call For Details) 		TP12KF-006 Top Column Cover
44- BH-7485-0669
(Call For Details) 		TP12KF-011 Bolt
45- BH-7485-0670
(Call For Details) 		TP12KF-012 Flat Washer
46- BH-7075-03
(Call For Details) 		TP12KF-068 Wedge Anchor Bolt (3/4" x 5-1/2")
49- BH-9701
(Call For Details) 		— Single Wheel Spotter Dish 10-3/4” x 15” Wide
