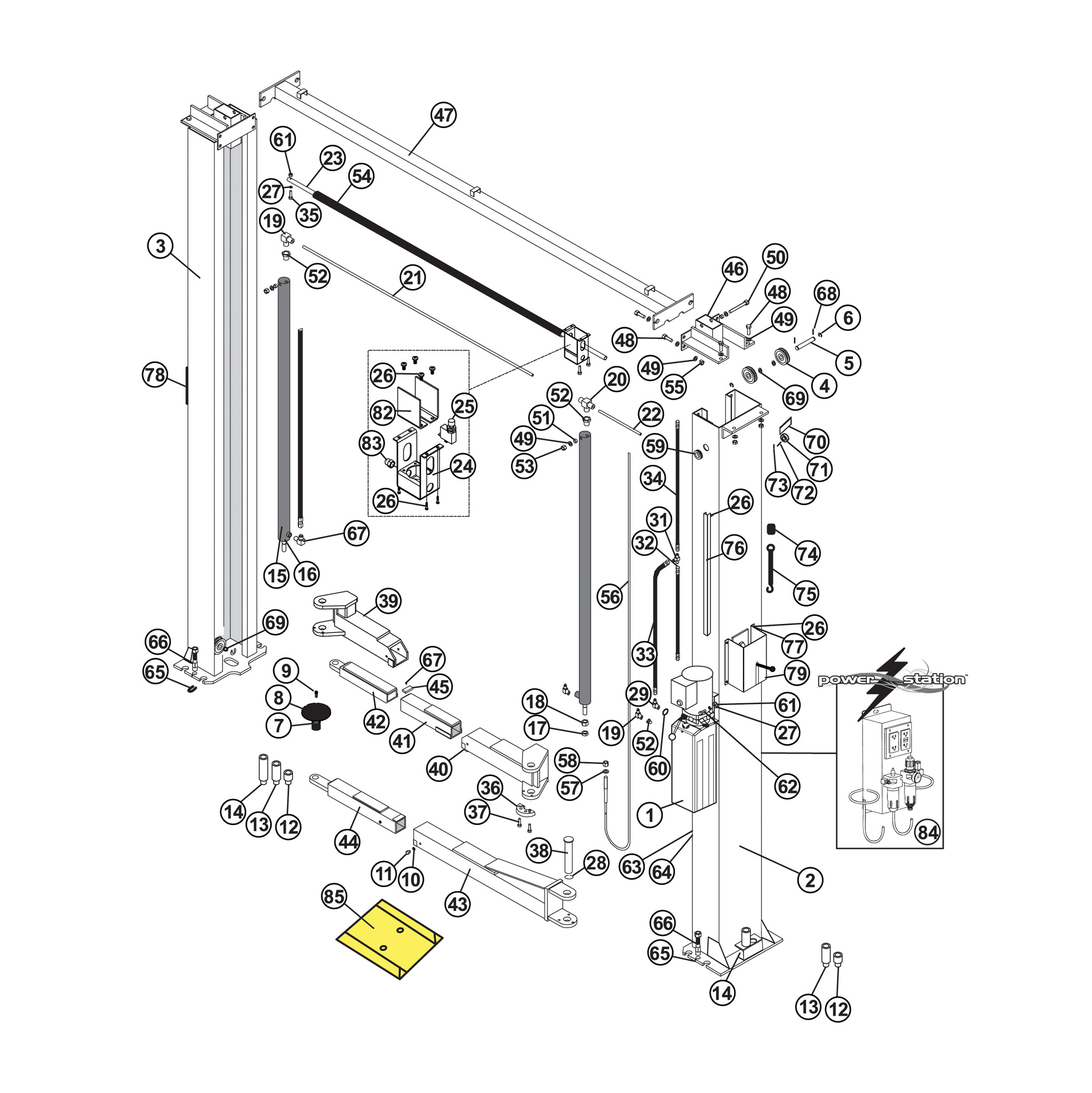

Click on the part number for more information

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
4- BH-7485-0285 BH-7485-0285 TP11KC-DX-028 Cable Sheave/Pulley
5- BH-7485-0284 BH-7485-0284 TP11KC-DX-026 Sheave / Pulley Pin
7- BH-7485-0339 BH-7485-0339 TP11KC-DX-084.1 Swivel Pad
8- BH-7485-0340 BH-7485-0340 TP11KC-DX-083.1 Rubber Pad
12- BH-7485-0344 BH-7485-0344 TP11KC-DX-003 Nesting Height Extension 2"
13- BH-7485-0345 BH-7485-0345 TP11KC-DX-004 Nesting Height Extension 4"
15- BH-7485-0347 BH-7485-0347 TP11KC-DX-077 Hydraulic Cylinder
19- BH-7485-0280 BH-7485-0280 TP11KC-DX-065 Elbow Fitting
24- BH-7485-0298 BH-7485-0298 TP11KC-DX-070 Housing, Limit Switch
25- BH-7485-0349 BH-7485-0349 TP11KC-DX-071.1 Limit Switch
31- BH-7485-0306 BH-7485-0306 TP11KC-DX-046 Hydraulic Tee Fitting
32- BH-7485-0304 BH-7485-0304 TP11KC-DX-048 Hydraulic Hose, 54.3”
33- BH-7485-0305 BH-7485-0305 TP11KC-DX-045 Hydraulic Hose, 71”
34- BH-7485-0303 BH-7485-0303 TP11KC-DX-047 Hydraulic Hose, 207”
36- BH-7485-0353 BH-7485-0353 TP11KC-DX-081 Arm Restraint Main Gear
37- BH-7485-0320 BH-7485-0320 TP11KC-DX-080 Hex Head Capscrew
45- BH-7485-0361 BH-7485-0361 TP11KC-DX-104 Limit Block
51- BH-7485-0279 BH-7485-0279 TP11KC-DX-096 Sleeve
63- BH-7485-0308 BH-7485-0308 TP11KC-DX-050 Slider Block
67- BH-7485-0369 BH-7485-0369 TP11KC-DX-103 Screw
70- BH-7485-0372 BH-7485-0372 TP11KC-DX-036 Large Bracket
71- BH-7485-0373 BH-7485-0373 TP11KC-DX-006 Roller
72- BH-7485-0374 BH-7485-0374 TP11KC-DX-007 Pin
73- BH-7485-0375 BH-7485-0375 TP11KC-DX-008 Cotter Pin
78- BH-7485-0380 BH-7485-0380 TP11KC-DX-009 Lock Release Cover (offside)
79- BH-7485-0381 BH-7485-0381 TP11KC-DX-040 Lock Release Cover (main side)
84- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
85- BH-9702 BH-9702 — Dual Wheel Spotter Dish 20-1/8” x 15” Wide
1- Call For Details — Power Unit
2- BH-7485-0336
(Call For Details) 		TP10KAC-DX-038.1 Mainside Column
3- BH-7485-0337
(Call For Details) 		TP10KAC-DX-001.1 Offside Column
6- BH-7485-0338
(Call For Details) 		TP11KC-DX-024 Flat Washer
9- Call For Details — Screw
10- BH-7485-0342
(Call For Details) 		TP11KC-DX-087 Nut
11- BH-7485-0343
(Call For Details) 		TP11KC-DX-072 Hex Head Capscrew
14- BH-7485-0346
(Call For Details) 		TP11KC-DX-067 Height Adapter Hanger Bracket
16- Call For Details — Seal Kit for Hyd. Cylinder
17- BH-7485-0264
(Call For Details) 		TP11KC-DX-075 Jam Nut, Cylinder
18- BH-7485-0265
(Call For Details) 		TP11KC-DX-076 Hex Nut, Cylinder
20- BH-7485-0296
(Call For Details) 		TP11KC-DX-034 T-Fitting
21- BH-7485-0291
(Call For Details) 		TP11KC-DX-097 Return Line #1
22- BH-7485-0301
(Call For Details) 		TP11KC-DX-037 Return Line #2
23- BH-7485-0293
(Call For Details) 		TP11KC-DX-033 Overhead Shut-Off Bar
26- BH-7485-0350
(Call For Details) 		TP11KC-DX-005 Screw
27- BH-7485-0290
(Call For Details) 		TP11KC-DX-063 Flat Washer
28- BH-7485-0351
(Call For Details) 		TP10KAC-DX-109 Retaining Ring
29- BH-7485-0331
(Call For Details) 		TP11KC-DX-057 Elbow Fitting
35- BH-7485-0352
(Call For Details) 		TP11KC-DX-101 Hex Head Capscrew
38- BH-7485-0277
(Call For Details) 		TP10KAC-DX-094 Swing Arm Pin
39- BH-7485-0355
(Call For Details) 		TP11KC-DX-082 Outside Front Arm Left (LH)
40- BH-7485-0356
(Call For Details) 		TP11KC-DX-092 Outside Front Arm Right (RH)
41- BH-7485-0357
(Call For Details) 		TP11KC-DX-093 Middle Front Arm
42- BH-7485-0358
(Call For Details) 		TP11KC-DX-091 Inner Front Arm
43- BH-7485-0359
(Call For Details) 		TP11KC-DX-074 Outside Rear Arm
44- BH-7485-0360
(Call For Details) 		TP11KC-DX-086 Inner Rear Arm
46- BH-7485-0362
(Call For Details) 		TP11KC-DX-035 Cylinder Mount Bracket
47- BH-7485-0287
(Call For Details) 		TP11KC-DX-030 Overhead Crossbeam
48- BH-7485-0288
(Call For Details) 		TP11KC-DX-031 Hex Head Capscrew
49- BH-7485-0282
(Call For Details) 		TP11KC-DX-023 Flat Washer
50- BH-7485-0363
(Call For Details) 		TP11KC-DX-029 Pin
52- BH-7485-0364
(Call For Details) 		TP11KC-DX-077.18 Fitting Adapter B
53- BH-7485-0365
(Call For Details) 		TP11KC-DX-095 Retaining Ring
54- BH-7485-0292
(Call For Details) 		TP11KC-DX-098 Foam Rubber Tube
55- BH-7485-0281
(Call For Details) 		TP11KC-DX-022 Nut
56- Call For Details — Equalizer Cable Assembly, 33’-8”
57- Call For Details — Washer, D16
58- BH-7485-0366
(Call For Details) 		TP11KC-DX-090 Nut
59- BH-7485-0302
(Call For Details) 		TP11KC-DX-039 Rubber Grommet
60- BH-7485-0367
(Call For Details) 		TP11KC-DX-058 O-Ring
61- BH-7485-0334
(Call For Details) 		TP11KC-DX-032 Nylon Lock Nut
62- BH-7485-0368
(Call For Details) 		TP11KC-DX-059 Hex Head Capscrew
65- Call For Details — Shim
66- BH-7075-03
(Call For Details) 		TP10KAC-DX-056.1 Anchor Bolt
68- BH-7485-0370
(Call For Details) 		TP11KC-DX-027 Pin
69- BH-7485-0371
(Call For Details) 		TP11KC-DX-025 Bearing
74- BH-7485-0376
(Call For Details) 		TP11KC-DX-106 Cable Lock
75- BH-7485-0377
(Call For Details) 		TP11KC-DX-107 Turnbuckle
76- BH-7485-0378
(Call For Details) 		TP11KC-DX-108 Hose Cover
77- BH-7485-0379
(Call For Details) 		TP11KC-DX-010 Flat Washer
80- BH-7485-0382
(Call For Details) 		TP10KAC-DX-049.2 Mainside Carriage
81- BH-7485-0383
(Call For Details) 		TP10KAC-DX-049.3 Offside Carriage
82- BH-7485-0384
(Call For Details) 		TP11KC-DX-068 Cover Plate, Limit Switch
83- BH-7485-0385
(Call For Details) 		TP11KC-DX-069 Cable Nut
85- BH-9701
(Call For Details) 		— Single Wheel Spotter Dish 10-3/4” x 15” Wide
