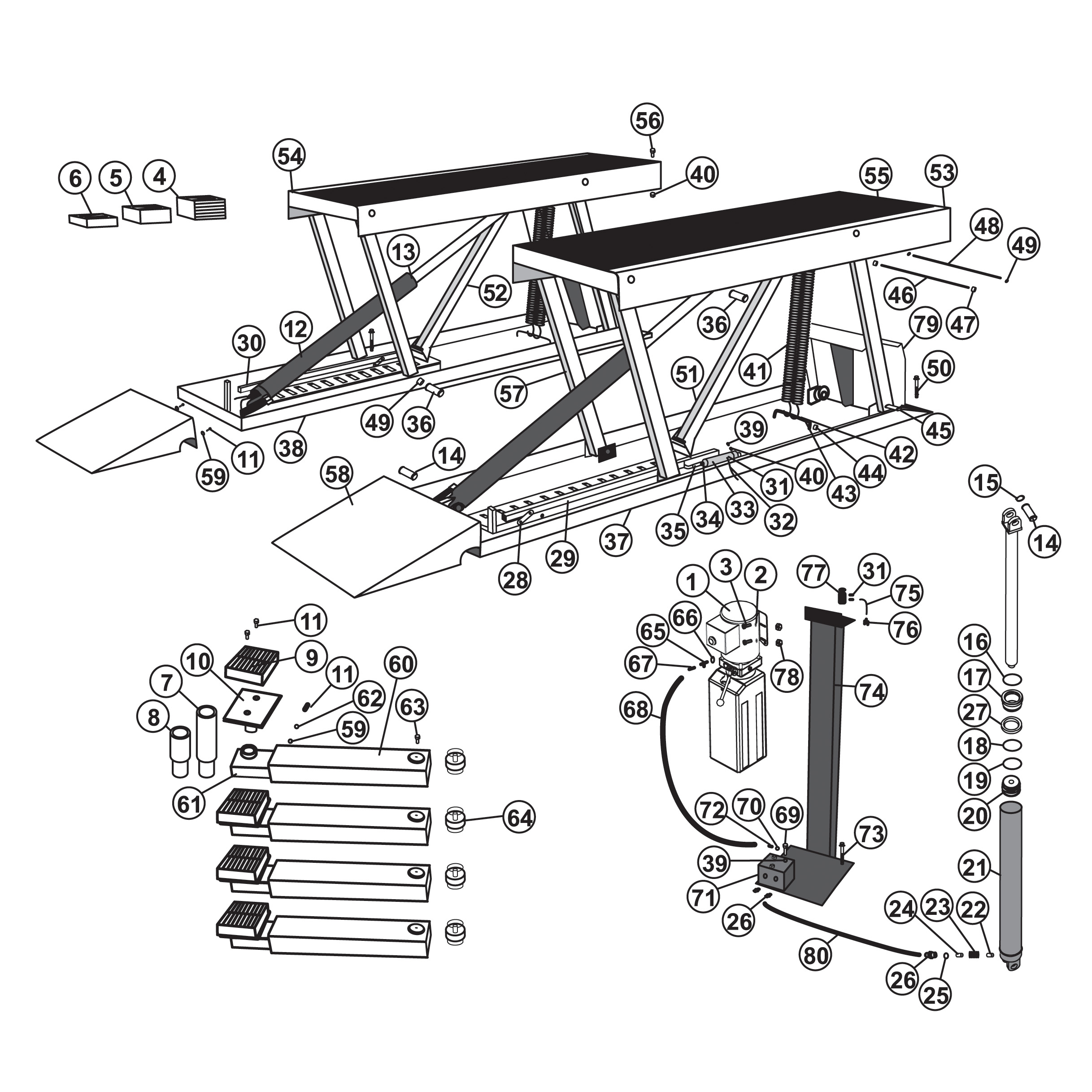

Tuxedo PL6K

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
4-		BH-9756-87	—	3" Rubber Adapter Pad
4a-		BH-9756-87-4	—	3" Rubber Adapter Pad (4 Pack)
5-		BH-9756-86	161109E*01-071	1-1/2" Rubber Adapter Pad
5a-		BH-9756-86-4	—	1-1/2" Rubber Adapter Pad (Set of 4)
6-		BH-9756-86T	161109E*01-072	Rubber Adapter Block 1-1/2" Thick
9-		BH-7101-00	161109E*01-064	Rubber Pad
71-		BH-7488S-0265	161109E*01-054	Flow Divider
81-		BH-7070-K	SVI Exclusive	Power Station (for 2-Post Lift)
1-		Call For Details	—	Motor Pump 220V 60 Hz
2-		BH-7488S-0200 (Call For Details)	161109E*01-052	Flat Washer Ø8
3-		BH-7488S-0201 (Call For Details)	161109E*01-053	Bolt M8 x 20
7-		BH-7488S-0202 (Call For Details)	161109E*01-073	Nesting Style Height Extension - Tall
8-		BH-7488S-0203 (Call For Details)	161109E*01-074	Nesting Style Height Extension - Short
10-		BH-7488S-0204 (Call For Details)	161109E*01-065	Lift Adapter Base Only
11-		BH-7488S-0205 (Call For Details)	161109E*01-035	Bolt M10 x 20
12-		BH-7488S-0206 (Call For Details)	161109E*01-018	Hydraulic Cylinder
13-		BH-7488S-0207 (Call For Details)	161109E*01-018x	Seal Kit for Hydraulic Cylinder
14-		BH-7488S-0208 (Call For Details)	161109E*01-016	Cylinder Pin
15-		BH-7488S-0209 (Call For Details)	161109E*01-017	Retaining Ring Ø20
16-		BH-7488S-0210 (Call For Details)	161109E*01-019	Dust Ring
17-		BH-7488S-0211 (Call For Details)	161109E*01-020	Guide Ring
18-		BH-7488S-0212 (Call For Details)	161109E*01-022	O-Ring
19-		BH-7488S-0213 (Call For Details)	161109E*01-023	Seal Ring
20-		BH-7488S-0214 (Call For Details)	161109E*01-024	Piston
21-		BH-7488S-0215 (Call For Details)	161109E*01-025	Cylinder Body
22-		BH-7488S-0216 (Call For Details)	161109E*01-027	Board
23-		BH-7488S-0217 (Call For Details)	161109E*01-029	Spring
24-		BH-7488S-0218 (Call For Details)	161109E*01-028	Flow-Limit Valve
25-		BH-7488S-0219 (Call For Details)	161109E*01-037	Copper Washer Ø14
26-		BH-7488S-0220 (Call For Details)	161109E*01-030	Extension Pipe M14 x 1.5; 9/16-18
27-		BH-7488S-0221 (Call For Details)	161109E*01-021	Guide Circle
28-		BH-7488S-0222 (Call For Details)	161109E*01-026	Chain Part
29-		BH-7488S-0223 (Call For Details)	161109E*01-032	Safety Lock - Left
30-		BH-7488S-0224 (Call For Details)	161109E*01-032-1	Safety Lock - Right
31-		BH-7488S-0225 (Call For Details)	161109E*01-010	Air Fitting 1/8 Ø6
32-		BH-7488S-0226 (Call For Details)	161109E*01-011	Air Pipe Ø6, 4m
33-		BH-7488S-0227 (Call For Details)	161109E*01-012	Air Cylinder
34-		BH-7488S-0228 (Call For Details)	161109E*01-013	Nut M8
35-		BH-7488S-0229 (Call For Details)	161109E*01-014	Clevis
36-		BH-7488S-0230 (Call For Details)	161109E*01-015	Short Shaft
37-		BH-7488S-0231 (Call For Details)	161109E*01-001	Left Base
38-		BH-7488S-0232 (Call For Details)	161109E*01-001-1	Right Base
39-		BH-7488S-0233 (Call For Details)	161109E*01-009	Bolt M6 x 25
40-		BH-7488S-0234 (Call For Details)	161109E*01-008	Self-Lock Nut M6
41-		BH-7488S-0235 (Call For Details)	161109E*01-006	Spring
42-		BH-7488S-0236 (Call For Details)	161109E*01-005	Bolt M10 x 90
43-		BH-7488S-0237 (Call For Details)	161109E*01-004	Sleeve
44-		BH-7488S-0238 (Call For Details)	161109E*01-003	Self-Lock Nut M10
45-		BH-7488S-0239 (Call For Details)	161109E*01-002	Long Shaft
46-		BH-7488S-0240 (Call For Details)	161109E*01-007	Long Threaded Rod
47-		BH-7488S-0241 (Call For Details)	161109E*01-059	Self-Lock Nut M16
48-		BH-7488S-0242 (Call For Details)	161109E*01-057	Axle
49-		BH-7488S-0243 (Call For Details)	161109E*01-056	Bearing Ø20 x Ø23 x 20
50-		Call For Details	—	Anchor M16 x 110
51-		BH-7488S-0245 (Call For Details)	161109E*01-058	Left Locking Bar
52-		BH-7488S-0246 (Call For Details)	161109E*01-058-1	Right Locking Bar
53-		BH-7488S-0247 (Call For Details)	161109E*01-060	Platform - Left
54-		BH-7488S-0248 (Call For Details)	161109E*01-060-1	Platform - Right
55-		BH-7488S-0249 (Call For Details)	161109E*01-061	Rubber Pad
56-		BH-7488S-0250 (Call For Details)	161109E*01-062	Screw
57-		BH-7488S-0251 (Call For Details)	161109E*01-055	Support Frame
58-		BH-7488S-0252 (Call For Details)	161109E*01-033	Ramp
59-		BH-7488S-0253 (Call For Details)	161109E*01-034	Flat Washer Ø10
60-		BH-7488S-0254 (Call For Details)	161109E*01-068	Lifting Arm
61-		BH-7488S-0255 (Call For Details)	161109E*01-066	Extension Arm
62-		BH-7488S-0256 (Call For Details)	161109E*01-067	Spring Washer Ø10
63-		BH-7488S-0257 (Call For Details)	161109E*01-069	Bolt M6 x 10
64-		BH-7488S-0258 (Call For Details)	161109E*01-070	Blocker
65-		BH-7488S-0259 (Call For Details)	161109E*01-045	T-Fitting
66-		BH-7488S-0260 (Call For Details)	161109E*01-046	O-Ring Ø10 x 2.4
67-		BH-7488S-0261 (Call For Details)	161109E*01-044	Blocked Nut
68-		BH-7488S-0262 (Call For Details)	161109E*01-040	Short Oil Hose
69-		BH-7488S-0263 (Call For Details)	161109E*01-041	Bolt M10 x 80
70-		BH-7488S-0264 (Call For Details)	161109E*01-038	Copper Washer Ø16
72-		BH-7488S-0266 (Call For Details)	161109E*01-039	Connector (2#) M16 x 1.5; 9/16-18
73-		BH-7488S-0267 (Call For Details)	161109E*01-042	Anchor M8 x 80
74-		BH-7488S-0268 (Call For Details)	161109E*01-043	Pump Stand
75-		BH-7488S-0269 (Call For Details)	161109E*01-049	Short Air Pipe Ø6, 1.5M
76-		BH-7488S-0270 (Call For Details)	161109E*01-050	Y-Fitting 1/8 Ø6
77-		BH-7488S-0271 (Call For Details)	161109E*01-048	Air Valve
78-		BH-7488S-0272 (Call For Details)	161109E*01-047	Self-Lock Nut M8
79-		BH-7488S-0273 (Call For Details)	161109E*01-063	Hinged Ramp
80-		BH-7488S-0274 (Call For Details)	161109E*01-031	Oil Hose
82-		BH-9701 (Call For Details)	—	Single Wheel Spotter Dish 10-3/4" x 15" Wide
