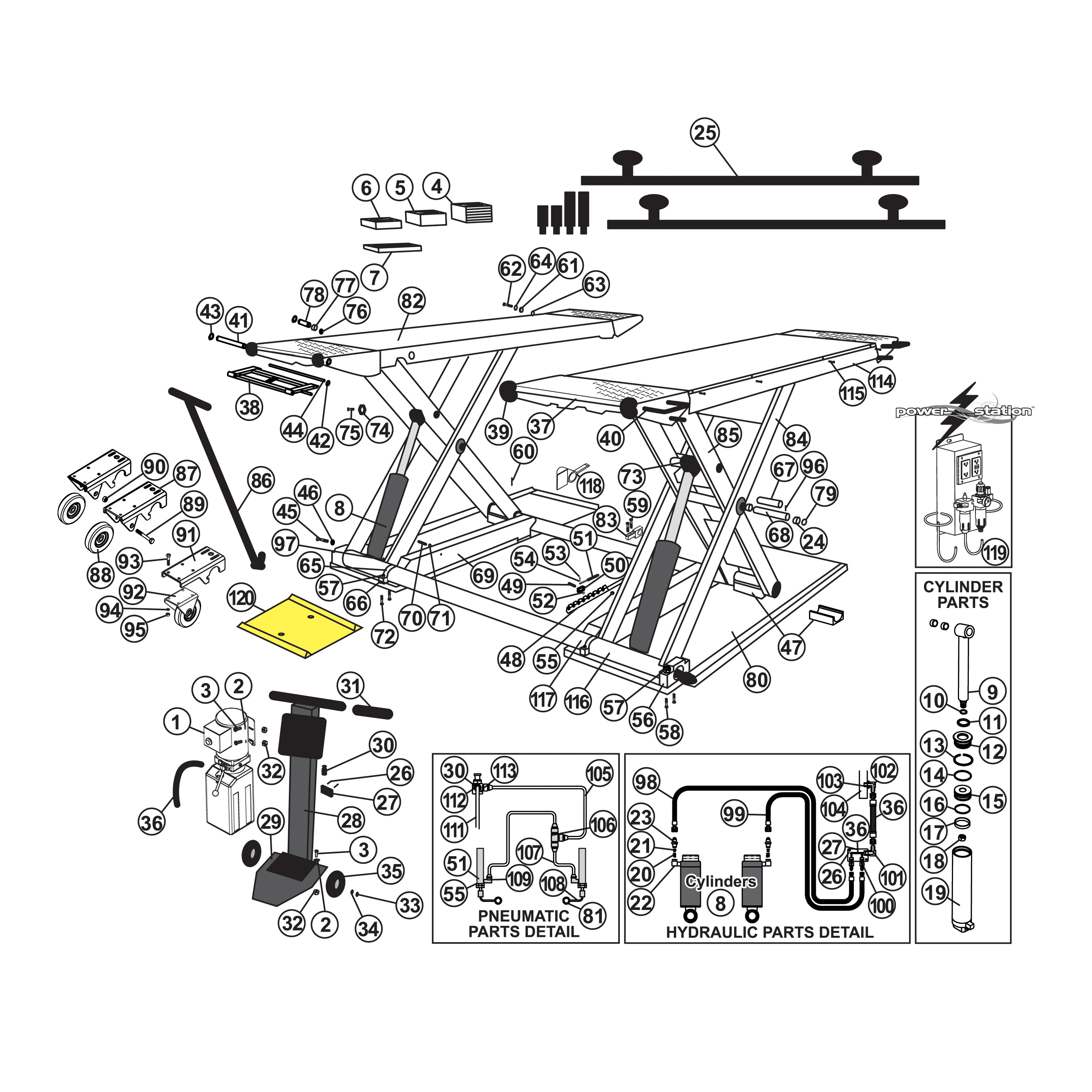

Tuxedo MR6K-38

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
4-		BH-9756-87	MR6K-38-075.1	3" Rubber Adapter Pad
4a-		BH-9756-87-4	—	3" Rubber Adapter Pad (4 Pack)
5-		BH-9756-86	—	1-1/2" Rubber Adapter Pad
5a-		BH-9756-86-4	—	1-1/2" Rubber Adapter Pad (Set of 4)
6-		BH-9756-86T	—	Rubber Adapter Block 1-1/2" Thick
51-		BH-7488S-0070	MR6K-38-020	Air Cylinder
81-		BH-7488S-0132	MR6K-38-085	Loop
119-		BH-7070-K	SVI Exclusive	Power Station (for 2-Post Lift)
1-		Call For Details	—	115VAC Power Unit (MR6K-38)
2-		BH-7485-0290 (Call For Details)	MR6K-38-067	Flat Washer
3-		BH-7488S-0033 (Call For Details)	MR6K-38-102	Nut
7-		BH-7488S-0034 (Call For Details)	MR6K-38-075	Rubber Pad - Long
8-		BH-7488S-0142 (Call For Details)	MR6K-38-032	Cylinder
9-		BH-7488S-0036 (Call For Details)	MR6K-38-032.6	Piston Rod
10-		BH-7485-0420 (Call For Details)	MR6K-38-032.7	O-Ring
11-		BH-7485-0565 (Call For Details)	MR6K-38-032.8	Dust Ring
12-		BH-7488S-0037 (Call For Details)	MR6K-38-032.9	Guide Ring
13-		BH-7488S-0038 (Call For Details)	MR6K-38-032.10	Steel Ring
14-		BH-7488S-0039 (Call For Details)	MR6K-38-032.11	O-Ring
15-		BH-7488S-0040 (Call For Details)	MR6K-38-032.12	Piston
16-		BH-7488S-0041 (Call For Details)	MR6K-38-032.13	Piston Seal
17-		BH-7488S-0042 (Call For Details)	MR6K-38-032.14	Guide Belt
18-		BH-7488S-0043 (Call For Details)	MR6K-38-032.15	Nut, M20
19-		BH-7488S-0044 (Call For Details)	MR6K-38-032.5A	Cylinder Body
20-		BH-7485-0409 (Call For Details)	MR6K-38-032.4	Spring
21-		BH-7488S-0045 (Call For Details)	MR6K-38-032.3	Throttle Washer
22-		BH-7488S-0046 (Call For Details)	MR6K-38-032.2	Copper Washer
23-		BH-7488S-0047 (Call For Details)	MR6K-38-052	Fitting Connector
24-		BH-7488S-0048 (Call For Details)	MR6K-38-138	Bearing, D30 x 2 x 30
25-		BH-7488S-0032 (Call For Details)	MR6K-38-SUV	SUV Adapter Set
26-		BH-7488S-0049 (Call For Details)	MR6K-38-092	Socket Screw, M5 x 35mm
27-		BH-7488S-0050 (Call For Details)	MR6K-38-091	Hyd. T-Block
28-		BH-7488S-0051 (Call For Details)	MR6K-38-103	Post Assembly for PU Dolly
29-		BH-7488S-0052 (Call For Details)	MR6K-38-100	Base Assembly for PU Dolly
30-		BH-7488S-0053 (Call For Details)	MR6K-38-079	Air Valve
31-		BH-7488S-0054 (Call For Details)	MR6K-38-104	Handle Sleeve
32-		BH-7485-0334 (Call For Details)	MR6K-38-031	Lock Nut M8
33-		BH-7488S-0055 (Call For Details)	MR6K-38-097	Wheel Axle Cover
34-		BH-7488S-0056 (Call For Details)	MR6K-38-098	Flat Washer, D16
35-		BH-7488S-0057 (Call For Details)	MR6K-38-099	Wheel for PU Dolly
36-		BH-7488S-0058 (Call For Details)	MR6K-38-089	Short Hydraulic Hose, PU
37-		BH-7488S-0123 (Call For Details)	MR6K-38-040	Ramp Assembly
38-		BH-7488S-0124 (Call For Details)	MR6K-38-033	Ramp Support
39-		BH-7488S-0125 (Call For Details)	MR6K-38-039	Roller
40-		BH-7488S-0062 (Call For Details)	MR6K-38-053	Ramp Handle
41-		BH-7488S-0126 (Call For Details)	MR6K-38-037	Ramp Shaft
42-		BH-7488S-0127 (Call For Details)	MR6K-38-034	Retaining Ring
43-		BH-7485-0365 (Call For Details)	MR6K-38-038	Retaining Ring, D14
44-		BH-7488S-0128 (Call For Details)	MR6K-38-042	Spindle
45-		BH-7488S-0129 (Call For Details)	MR6K-38-036	Hex Screw
46-		BH-7488S-0130 (Call For Details)	MR6K-38-035	Washer
47-		BH-7488S-0066 (Call For Details)	MR6K-38-007	Half-Moon Slider
48-		BH-7488S-0067 (Call For Details)	MR6K-38-004	Lock Bar
49-		BH-7488S-0068 (Call For Details)	MR6K-38-024	Latch Pin
50-		BH-7488S-0069 (Call For Details)	MR6K-38-025	Lock Latch
52-		BH-7485-0401 (Call For Details)	MR6K-38-021	Retaining Ring, D18
53-		BH-7488S-0071 (Call For Details)	MR6K-38-022	Bolt
54-		BH-7485-0274 (Call For Details)	MR6K-38-023	Flat Washer
55-		BH-7488S-0072 (Call For Details)	MR6K-38-001	Nut
56-		BH-7488S-0073 (Call For Details)	MR6K-38-048	Front Shaft Block
57-		BH-7488S-0074 (Call For Details)	MR6K-38-030	Nut, M12
58-		BH-7488S-0075 (Call For Details)	MR6K-38-049	Socket Screw, M12 x 85mm
59-		BH-7488S-0076 (Call For Details)	MR6K-38-019	Socket Screw
60-		BH-7488S-0077 (Call For Details)	MR6K-38-009	Cotter Pin
61-		BH-7488S-0078 (Call For Details)	MR6K-38-017	Roller
62-		BH-7488S-0079 (Call For Details)	MR6K-38-018	Roller Screw
63-		BH-7488S-0080 (Call For Details)	MR6K-38-016	Nut
64-		BH-7488S-0081 (Call For Details)	MR6K-38-140	Bearing, D20 x 1.5 x 15
65-		BH-7488S-0082 (Call For Details)	MR6K-38-029	Shaft Seat Cover
66-		BH-7488S-0083 (Call For Details)	MR6K-38-028	Shaft Seat
67-		BH-7488S-0084 (Call For Details)	MR6K-38-026	Center Shaft Sleeve
68-		BH-7488S-0085 (Call For Details)	MR6K-38-010	Center Shaft
69-		BH-7488S-0086 (Call For Details)	MR6K-38-027	Latch Cover
70-		BH-7488S-0087 (Call For Details)	MR6K-38-027.1	Screw, M5 x 10mm
71-		BH-7485-0312 (Call For Details)	MR6K-38-027.2	Flat Washer, D5
72-		BH-7488S-0088 (Call For Details)	MR6K-38-049.1	Socket Screw, M12 x 65mm
73-		BH-7488S-0089 (Call For Details)	MR6K-38-015	Cylinder Pin
74-		BH-7488S-0090 (Call For Details)	MR6K-38-013	Position Plate
75-		BH-7488S-0091 (Call For Details)	MR6K-38-014	Socket Screw, M5 x 10mm
76-		BH-7488S-0092 (Call For Details)	MR6K-38-045	Retaining Ring, D20
77-		BH-7488S-0093 (Call For Details)	MR6K-38-139	Bearing, D20 x 1.5 x 20
78-		BH-7488S-0094 (Call For Details)	MR6K-38-046	Upper Pin
79-		BH-7488S-0095 (Call For Details)	MR6K-38-011	Flat Washer
80-		BH-7488S-0131 (Call For Details)	MR6K-38-050	Underframe Assembly
82-		BH-7488S-0133 (Call For Details)	MR6K-38-041	Platform
83-		BH-7488S-0134 (Call For Details)	MR6K-38-005	Spindle Spacer
84-		BH-7488S-0135 (Call For Details)	MR6K-38-047	Outer Scissor Frame
85-		BH-7488S-0136 (Call For Details)	MR6K-38-008	Inner Scissor Frame
86-		BH-7488S-0102 (Call For Details)	MR6K-38-074	Pull Bar
87-		BH-7488S-0103 (Call For Details)	MR6K-38-068	Wheel Plate-1
88-		BH-7488S-0104 (Call For Details)	MR6K-38-072	Fixed Caster Wheel
89-		BH-7488S-0105 (Call For Details)	MR6K-38-066	Bolt, M8 x 65mm
90-		BH-7485-0588 (Call For Details)	MR6K-38-071	Nut, M8
91-		BH-7488S-0106 (Call For Details)	MR6K-38-068.1	Wheel Plate-2
92-		BH-7488S-0107 (Call For Details)	MR6K-38-070	Swivel Caster Wheel
93-		BH-7488S-0108 (Call For Details)	MR6K-38-069	Socket Screw, M8 x 20mm
94-		BH-7485-0290 (Call For Details)	MR6K-38-067	Flat Washer, D8
95-		BH-7485-0334 (Call For Details)	MR6K-38-031	Self-Lock Nut, M8
96-		BH-7488S-0109 (Call For Details)	MR6K-38-012	Roll Pin, D6 x 40mm
97-		BH-7485-0334 (Call For Details)	MR6K-38-031	Self-Lock Nut, M8
98-		BH-7488S-0110 (Call For Details)	MR6K-38-145	Long Hyd. Hose
99-		BH-7488S-0111 (Call For Details)	MR6K-38-144	Medium Hyd. Hose
100-		BH-7488S-0112 (Call For Details)	MR6K-38-143	Straight Hyd. Fitting (T-Block)
101-		BH-7485-0267 (Call For Details)	MR6K-38-090	90 Fitting Connector (T-Block)
102-		BH-7485-0331 (Call For Details)	MR6K-38-088	90 Fitting Connector (V- Block)
103-		BH-7485-0367 (Call For Details)	MR6K-38-087	O-Ring, D11.8 x D1.8
104-		BH-7488S-0113 (Call For Details)	MR6K-38-086	Hyd. Valve Block
105-		BH-7488S-0114 (Call For Details)	MR6K-38-080	Air Hose 3
106-		BH-7488S-0115 (Call For Details)	MR6K-38-081	Air T-Fitting
107-		BH-7488S-0116 (Call For Details)	MR6K-38-082	Air Hose 4
108-		BH-7488S-0117 (Call For Details)	MR6K-38-084	Steel Cable
109-		BH-7488S-0118 (Call For Details)	MR6K-38-076	90 Quick Air Fitting
110-		BH-7488S-0119 (Call For Details)	MR6K-38-077	Air Hose 1
111-		BH-7488S-0120 (Call For Details)	MR6K-38-078	Air Hose 2
112-		BH-7488S-0121 (Call For Details)	MR6K-38-078.1	Straight Quick Air Fitting-3
113-		BH-7488S-0122 (Call For Details)	MR6K-38-078.2	Straight Quick Air Fitting-2
114-		BH-7488S-0137 (Call For Details)	MR6K-38-043	Side Protection Plate
115-		BH-7488S-0138 (Call For Details)	MR6K-38-044	Bolt
116-		BH-7488S-0139 (Call For Details)	MR6K-38-002	Connection Pipe Jointing
117-		BH-7488S-0140 (Call For Details)	MR6K-38-003	Spindle
118-		BH-7488S-0141 (Call For Details)	MR6K-38-006	Safety Limit Assembly
120-		BH-9701 (Call For Details)	—	Single Wheel Spotter Dish 10-3/4" x 15" Wide
