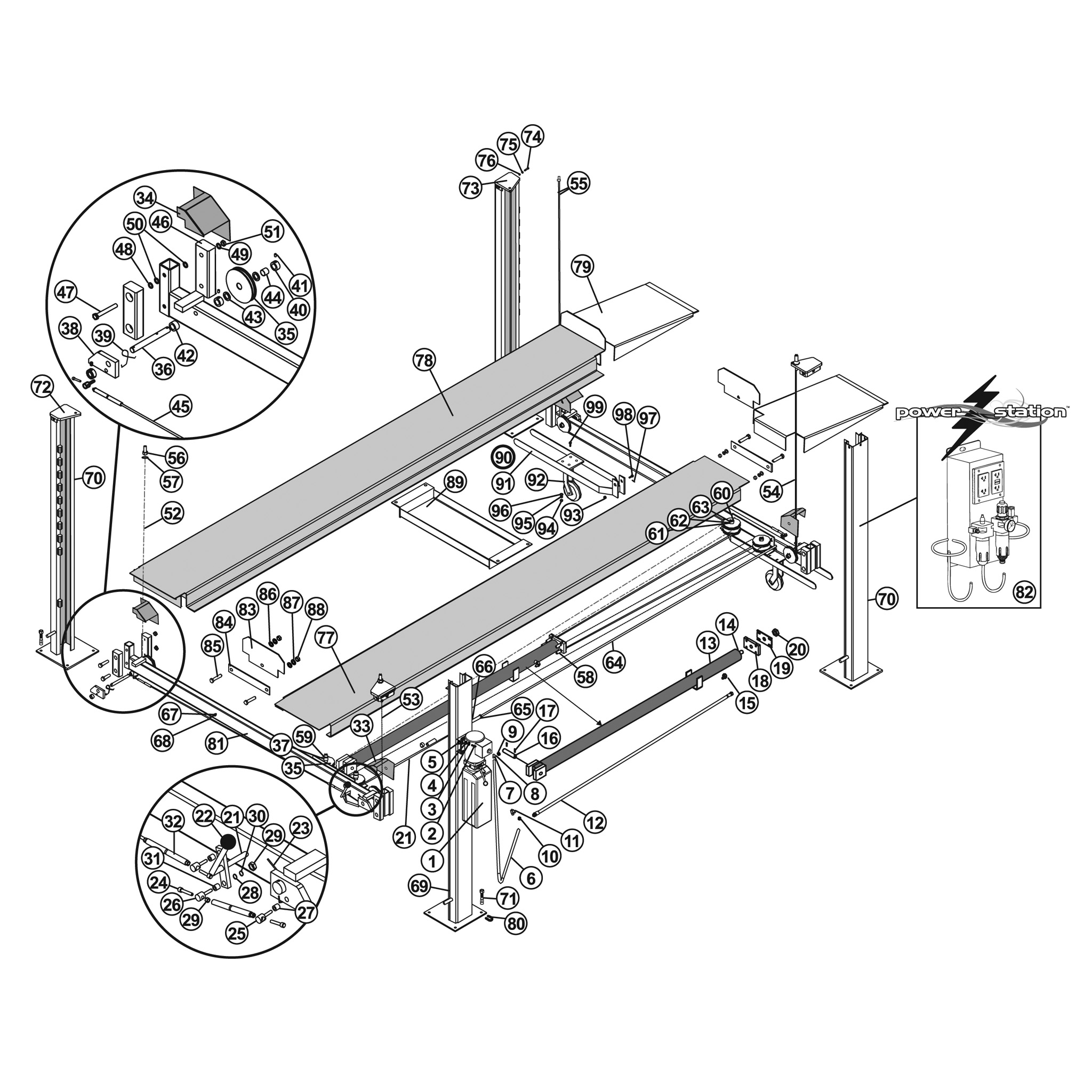

Tuxedo FP9K

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
80-		BH-7512-92	—	Plastic Shim Assortment 150 pk (3 sizes)
82-		BH-7069-K	SVI Exclusive	Power Station (for 4-Post Lift)
2-		BH-7488-1231 (Call For Details)	FP9K-63	Bolt, M8 x 15
3-		BH-7488-1232 (Call For Details)	FP9K-62	Spring Washer
4-		BH-7488-1233 (Call For Details)	FP9K-61	Washer
5-		BH-7488-1234 (Call For Details)	FP9K-74	Nut
6-		BH-7488-1235 (Call For Details)	FP9K-65	Hydraulic Hose (Long)
7-		BH-7488-1236 (Call For Details)	FP9K-64	90° Hyd. Elbow Fitting (PU to Hose)
8-		BH-7488-1237 (Call For Details)	FP9K-64.1	Hydraulic Fitting 2501-6-6
9-		BH-7488-1238 (Call For Details)	FP9K-64.2	Bushing
10-		BH-7488-1239 (Call For Details)	FP9K-73	Nut
11-		BH-7488-1240 (Call For Details)	FP9K-72	Bulkhead Fitting
12-		BH-7488-1241 (Call For Details)	FP9K-66	Hydraulic Hose (Short)
13-		BH-7488-1242 (Call For Details)	FP9K-67	Hydraulic Cylinder FP9K
14-		BH-7488-1243 (Call For Details)	FP9K-67x	Seal Kit FP9K
15-		BH-7488-1244 (Call For Details)	FP9K-71	90° Elbow Hyd. Fitting, Main
16-		BH-7488-1245 (Call For Details)	FP9K-58	Cylinder Pin
17-		BH-7488-1246 (Call For Details)	FP9K-59	Pin
18-		BH-7488-1247 (Call For Details)	FP9K-68	Cable Retainer Block
19-		BH-7488-1248 (Call For Details)	FP9K-69	Cable Lock Plate
20-		BH-7488-1249 (Call For Details)	FP9K-70	Cylinder Rod Nut
21-		BH-7488-1250 (Call For Details)	FP9K-43	Lock Release Handle
22-		BH-7488-1251 (Call For Details)	FP9K-42	Ball Knob, Lock Release
23-		BH-7488-1252 (Call For Details)	FP9K-44	Lock Spring, Left
24-		BH-7488-1253 (Call For Details)	FP9K-47	Bolt
25-		BH-7488-1254 (Call For Details)	FP9K-51	Small Shaft
26-		BH-7488-1255 (Call For Details)	FP9K-51.1	Small Shaft
27-		BH-7488-1256 (Call For Details)	FP9K-51.2	Cover
28-		BH-7488-1257 (Call For Details)	FP9K-51.3	Flat Washer
29-		BH-7488-1258 (Call For Details)	FP9K-49	Nut
30-		BH-7488-1259 (Call For Details)	FP9K-51.4	Spring Washer
31-		BH-7488-1260 (Call For Details)	FP9K-48	Cover
32-		BH-7488-1261 (Call For Details)	FP9K-50	Linkage Rod - Short
33-		BH-7488-1262 (Call For Details)	FP9K-45	Sheave Cover RH
34-		BH-7488-1263 (Call For Details)	FP9K-39	Sheave Cover LH
35-		BH-7488-1264 (Call For Details)	FP9K-23	Cable Sheave
36-		BH-7488-1265 (Call For Details)	FP9K-32	Shaft
37-		BH-7488-1266 (Call For Details)	FP9K-24	Sheave Shaft
38-		BH-7488-1267 (Call For Details)	FP9K-30	Lock Pawl
39-		BH-7488-1268 (Call For Details)	FP9K-31	Lock Spring (Right)
40-		BH-7488-1269 (Call For Details)	FP9K-28	Locking Collar
41-		BH-7488-1270 (Call For Details)	FP9K-29	Bolt
42-		BH-7488-1271 (Call For Details)	FP9K-33	Bushing
43-		BH-7488-1272 (Call For Details)	FP9K-40	Flat Washer
44-		BH-7488-1273 (Call For Details)	FP9K-41	Spacer
45-		BH-7488-1274 (Call For Details)	FP9K-27	Linkage Rod - Long
46-		BH-7488-1275 (Call For Details)	FP9K-34	Slider Block
47-		BH-7488-1276 (Call For Details)	FP9K-37	Bolt
48-		BH-7488-1277 (Call For Details)	FP9K-35	Washer
49-		BH-7488-1278 (Call For Details)	FP9K-35.2	Flat Washer
50-		BH-7488-1279 (Call For Details)	FP9K-35.1	Flat Washer
51-		BH-7488-1280 (Call For Details)	FP9K-38	Nut
52-		BH-7488-1281 (Call For Details)	FP9K-17	Lifting Cable, Top Offside
53-		BH-7488-1282 (Call For Details)	FP9K-18	Lifting Cable, Top Main Side
54-		BH-7488-1283 (Call For Details)	FP9K-19	Lifting Cable, Bottom Main Side
55-		BH-7488-1284 (Call For Details)	FP9K-20	Lifting Cable, Bottom Offside
56-		BH-7488-1285 (Call For Details)	FP9K-21	Lock Nut
57-		BH-7488-1286 (Call For Details)	FP9K-22	Flat Washer
58-		BH-7488-1287 (Call For Details)	FP9K-76	Locking Nut for Cable
59-		BH-7488-1288 (Call For Details)	FP9K-25	Cover
60-		BH-7488-1289 (Call For Details)	FP9K-26	Cover
61-		BH-7488-1290 (Call For Details)	FP9K-26.1	Flat Washer
62-		BH-7488-1291 (Call For Details)	FP9K-26.2	Bushing
63-		BH-7488-1292 (Call For Details)	FP9K-26.3	Bolt
64-		BH-7488-1293 (Call For Details)	FP9K-26.8	Lock Rod Linkage
65-		BH-7488-1294 (Call For Details)	FP9K-26.4	Shaft
66-		BH-7488-1295 (Call For Details)	FP9K-26.5	Nut
67-		BH-7488-1296 (Call For Details)	FP9K-26.7	Nut
68-		BH-7488-1297 (Call For Details)	FP9K-26.6	Bolt
69-		BH-7488-1298 (Call For Details)	FP9K-03	Column
70-		BH-7488-1299 (Call For Details)	FP9K-01	Column Front Offside & Rear Main
71-		BH-7075-03 (Call For Details)	FP9K-3.75X5.12	Wedge Anchor Bolt
72-		BH-7488-1300 (Call For Details)	FP9K-02	Top Plate, LH Column
73-		BH-7488-1301 (Call For Details)	FP9K-04	Top Plate, RH Column
74-		BH-7488-1302 (Call For Details)	FP9K-05	Bolt
75-		BH-7488-1303 (Call For Details)	FP9K-05.1	Flat Washer
76-		BH-7488-1304 (Call For Details)	FP9K-05.2	Nut
77-		BH-7488-1305 (Call For Details)	FP9K-08	Runway (Main Side)
78-		BH-7488-1306 (Call For Details)	FP9K-06	Runway (Offside)
79-		BH-7488-1307 (Call For Details)	FP9K-07	Approach Ramp (Steel)
81-		BH-7488-1308 (Call For Details)	FP9K-09	Crossbeam
83-		BH-7488-1309 (Call For Details)	FP9K-13	Wheel Stop
84-		BH-7488-1310 (Call For Details)	FP9K-4021	Rear Mount
85-		BH-7488-1311 (Call For Details)	FP9K-11	Bolt
86-		BH-7488-1312 (Call For Details)	FP9K-14	Flat Washer
87-		BH-7488-1313 (Call For Details)	FP9K-15	Spring Washer
88-		BH-7488-1314 (Call For Details)	FP9K-16	Nut
89-		BH-7488-1315 (Call For Details)	FP9K-JT12	Jack / Tool Tray
90-		BH-7488-1316 (Call For Details)	FP9K-CSTR	Caster Kit
91-		BH-7488-1317 (Call For Details)	FP9K-56	Caster Weldment Only (See Caster Kit)
92-		BH-7488-1318 (Call For Details)	FP9K-54	Caster Wheel only (See Caster Kit)
93-		BH-7488-1319 (Call For Details)	FP9K-57	Spring Block (See Caster Kit)
94-		BH-7488-1320 (Call For Details)	FP9K-53	Nut (See Caster Kit)
95-		BH-7488-1321 (Call For Details)	FP9K-53.1	Spring Washer (See Caster Kit)
96-		BH-7488-1322 (Call For Details)	FP9K-53.2	Flat Washer (See Caster Kit)
97-		BH-7488-1323 (Call For Details)	FP9K-53.3	Cotter Pin (See Caster Kit)
98-		BH-7488-1324 (Call For Details)	FP9K-55	Pin (See Caster Kit)
99-		BH-7488-1325 (Call For Details)	FP9K-52	Bolt (See Caster Kit)
