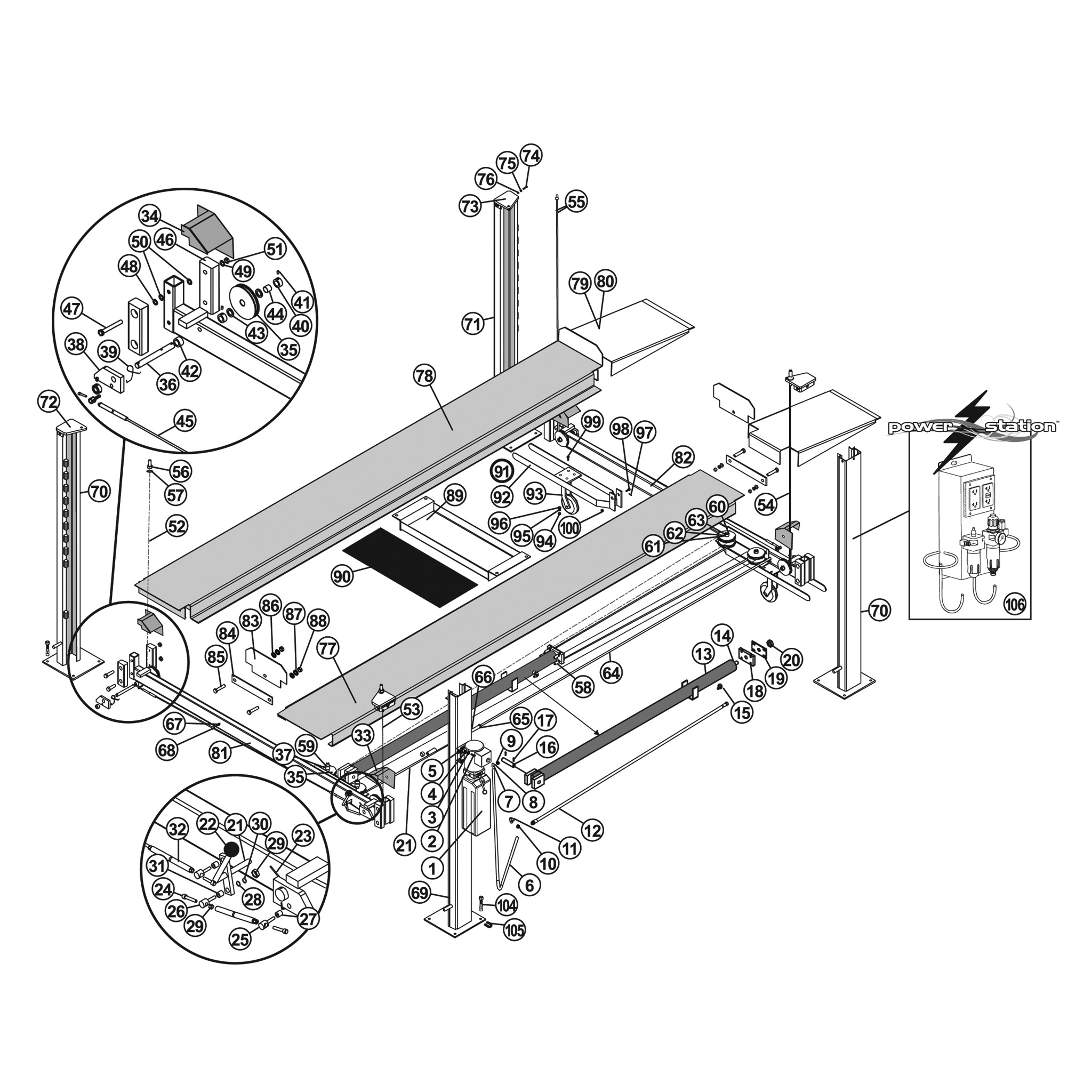

Tuxedo FP7K

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
13-		BH-7488-1117	FP7K-4039	Hydraulic Cylinder FP7K/8K
14-		BH-7488-1118	FP7K-4039x	Seal Kit FP7K/8K
37-		BH-7488-1035	FP7K-24	Sheave Shaft
44-		BH-7488-1042	FP7K-41	Spacer
105-		BH-7512-92	—	Plastic Shim Assortment 150 pk (3 sizes)
106-		BH-7069-K	SVI Exclusive	Power Station (for 4-Post Lift)
1-		Call For Details	—	Power Unit
2-		BH-7488-1000 (Call For Details)	FP7K-63	Bolt, M8 x 15
3-		BH-7488-1001 (Call For Details)	FP7K-62	Spring Washer
4-		BH-7488-1002 (Call For Details)	FP7K-61	Washer
5-		BH-7488-1003 (Call For Details)	FP7K-74	Nut
6-		Call For Details	—	Hydraulic Hose (Long)
7-		BH-7488-1005 (Call For Details)	FP7K-64	90° Hyd. Elbow Fitting (PU to Hose)
8-		BH-7488-1006 (Call For Details)	FP7K-64.1	Hydraulic Fitting 2501-6-6
9-		BH-7488-1007 (Call For Details)	FP7K-64.2	Bushing
10-		BH-7488-1008 (Call For Details)	FP7K-73	Nut
11-		BH-7488-1009 (Call For Details)	FP7K-72	Bulkhead Fitting
12-		BH-7488-1010 (Call For Details)	FP7K-66	Hydraulic Hose (Short)
15-		BH-7488-1013 (Call For Details)	FP7K-71	90° Elbow Hyd. Fitting, Main
16-		BH-7488-1014 (Call For Details)	FP7K-58	Cylinder Pin
17-		BH-7488-1015 (Call For Details)	FP7K-59	Pin
18-		BH-7488-1016 (Call For Details)	FP7K-68	Cable Retainer Block
19-		BH-7488-1017 (Call For Details)	FP7K-69	Cable Lock Plate
20-		BH-7488-1018 (Call For Details)	FP7K-70	Cylinder Rod Nut
21-		BH-7488-1019 (Call For Details)	FP7K-43	Lock Release Handle
22-		BH-7488-1020 (Call For Details)	FP7K-42	Ball Knob, Lock Release
23-		BH-7488-1021 (Call For Details)	FP7K-44	Lock Spring, Left
24-		BH-7488-1022 (Call For Details)	FP7K-47	Bolt
25-		BH-7488-1023 (Call For Details)	FP7K-51	Small Shaft
26-		BH-7488-1024 (Call For Details)	FP7K-51.1	Small Shaft
27-		BH-7488-1025 (Call For Details)	FP7K-51.2	Cover
28-		BH-7488-1026 (Call For Details)	FP7K-51.3	Flat Washer
29-		BH-7488-1027 (Call For Details)	FP7K-49	Nut
30-		BH-7488-1028 (Call For Details)	FP7K-51.4	Spring Washer
31-		BH-7488-1029 (Call For Details)	FP7K-48	Cover
32-		BH-7488-1030 (Call For Details)	FP7K-50	Linkage Rod - Short
33-		BH-7488-1031 (Call For Details)	FP7K-45	Sheave Cover RH
34-		BH-7488-1032 (Call For Details)	FP7K-39	Sheave Cover LH
35-		BH-7488-1033 (Call For Details)	FP7K-23	Cable Sheave
36-		BH-7488-1034 (Call For Details)	FP7K-32	Shaft
38-		BH-7488-1036 (Call For Details)	FP7K-30	Lock Pawl
39-		BH-7488-1037 (Call For Details)	FP7K-31	Lock Spring (Right)
40-		BH-7488-1038 (Call For Details)	FP7K-28	Locking Collar
41-		BH-7488-1039 (Call For Details)	FP7K-29	Bolt
42-		BH-7488-1040 (Call For Details)	FP7K-33	Bushing
43-		BH-7488-1041 (Call For Details)	FP7K-40	Flat Washer
45-		BH-7488-1043 (Call For Details)	FP7K-27	Linkage Rod - Long
46-		BH-7488-1044 (Call For Details)	FP7K-34	Slider Block
47-		BH-7488-1045 (Call For Details)	FP7K-37	Bolt
48-		BH-7488-1046 (Call For Details)	FP7K-35	Washer
49-		BH-7488-1047 (Call For Details)	FP7K-35.2	Flat Washer
50-		BH-7488-1048 (Call For Details)	FP7K-35.1	Flat Washer
51-		BH-7488-1049 (Call For Details)	FP7K-38	Nut
52-		BH-7488-1054 (Call For Details)	FP7K-17	Lifting Cable, Top Offside 26' 2-1/2"
53-		BH-7488-1055 (Call For Details)	FP7K-18	Lifting Cable, Top Main Side 21' 1-1/4"
54-		BH-7488-1056 (Call For Details)	FP7K-19	Lifting Cable, Bottom Main Side 8' 4-1/4"
55-		BH-7488-1057 (Call For Details)	FP7K-20	Lifting Cable, Bottom Offside 13' 5-1/2"
56-		BH-7488-1058 (Call For Details)	FP7K-21	Lock Nut
57-		BH-7488-1059 (Call For Details)	FP7K-22	Flat Washer
58-		BH-7488-1060 (Call For Details)	FP7K-76	Locking Nut for Cable
59-		BH-7488-1061 (Call For Details)	FP7K-25	Cover
60-		BH-7488-1062 (Call For Details)	FP7K-26	Cover
61-		BH-7488-1063 (Call For Details)	FP7K-26.1	Flat Washer
62-		Call For Details	—	Spacer
63-		BH-7488-1065 (Call For Details)	FP7K-26.3	Bolt
64-		BH-7488-1066 (Call For Details)	FP7K-26.8	Lock Rod Linkage
65-		BH-7488-1067 (Call For Details)	FP7K-26.4	Coupler Nut
66-		BH-7488-1068 (Call For Details)	FP7K-26.5	Nut
67-		BH-7488-1069 (Call For Details)	FP7K-26.7	Nut
68-		BH-7488-1070 (Call For Details)	FP7K-26.6	Eye Bolt
69-		BH-7488-1071 (Call For Details)	FP7K-03	Column with PU Bracket
70-		BH-7488-1072 (Call For Details)	FP7K-01	Column Front Offside & Rear Main
71-		BH-7488-1073 (Call For Details)	FP7K-01	Column Rear Offside
72-		BH-7488-1074 (Call For Details)	FP7K-02	Top Plate, LH Column
73-		BH-7488-1075 (Call For Details)	FP7K-04	Top Plate, RH Column
74-		BH-7488-1076 (Call For Details)	FP7K-05	Bolt
75-		BH-7488-1077 (Call For Details)	FP7K-05.1	Flat Washer
76-		BH-7488-1078 (Call For Details)	FP7K-05.2	Nut
77-		BH-7488-1079 (Call For Details)	FP7K-08	Runway (Main Side)
78-		BH-7488-1080 (Call For Details)	FP7K-06	Runway (Offside)
79-		BH-7488-1081 (Call For Details)	FP7K-07	Approach Ramp (Steel)
80-		BH-7488-1082 (Call For Details)	FP7K-07-ALUMINUM	Approach Ramp (Aluminum)
81-		BH-7488-1083 (Call For Details)	FP7K-09	Crossbar - Main Side
82-		BH-7488-1084 (Call For Details)	FP7K-09	Crossbar - Offside
83-		BH-7488-1085 (Call For Details)	FP7K-13	Rear Tire Stop
83-		BH-7488-1086 (Call For Details)	FP7K-13	Wheel Stop - Front
84-		BH-7488-1087 (Call For Details)	FP7K-4021	Rear Mount
85-		BH-7488-1088 (Call For Details)	FP7K-11	Bolt
86-		BH-7488-1089 (Call For Details)	FP7K-14	Flat Washer
87-		BH-7488-1090 (Call For Details)	FP7K-15	Spring Washer
88-		BH-7488-1091 (Call For Details)	FP7K-16	Nut
89-		BH-7488-1092 (Call For Details)	FP7K-JT12	12" Jack Tray
90-		BH-7488-1093 (Call For Details)	FP7K-75	Drip Tray
91-		BH-7488-1094 (Call For Details)	FP7K-CSTR	Caster Kit
92-		BH-7488-1095 (Call For Details)	FP7K-56	Caster Weldment Only (See Caster Kit)
93-		BH-7488-1096 (Call For Details)	FP7K-54	Caster Wheel only (See Caster Kit)
94-		BH-7488-1097 (Call For Details)	FP7K-53	Nut (See Caster Kit)
95-		BH-7488-1098 (Call For Details)	FP7K-53.1	Spring Washer (See Caster Kit)
96-		BH-7488-1099 (Call For Details)	FP7K-53.2	Flat Washer (See Caster Kit)
97-		BH-7488-1100 (Call For Details)	FP7K-53.3	Cotter Pin (See Caster Kit)
98-		BH-7488-1101 (Call For Details)	FP7K-55	Pin (See Caster Kit)
99-		BH-7488-1102 (Call For Details)	FP7K-52	Bolt (See Caster Kit)
100-		BH-7488-1103 (Call For Details)	FP7K-57	Spring Block (See Caster Kit)
101-		BH-7488-1104 (Call For Details)	—	Aluminum Deck for XLT (not pictured)
102-		BH-7488-1105 (Call For Details)	FP7K-4070	Bracket, Aluminum Deck (not pictured)
103-		BH-7488-1106 (Call For Details)	FP7K-4116	Poly Drip Tray (not pictured)
104-		BH-7075-03 (Call For Details)	FP7K-3.75X5.12	Wedge Anchor Bolt
