Click on the part number for more information

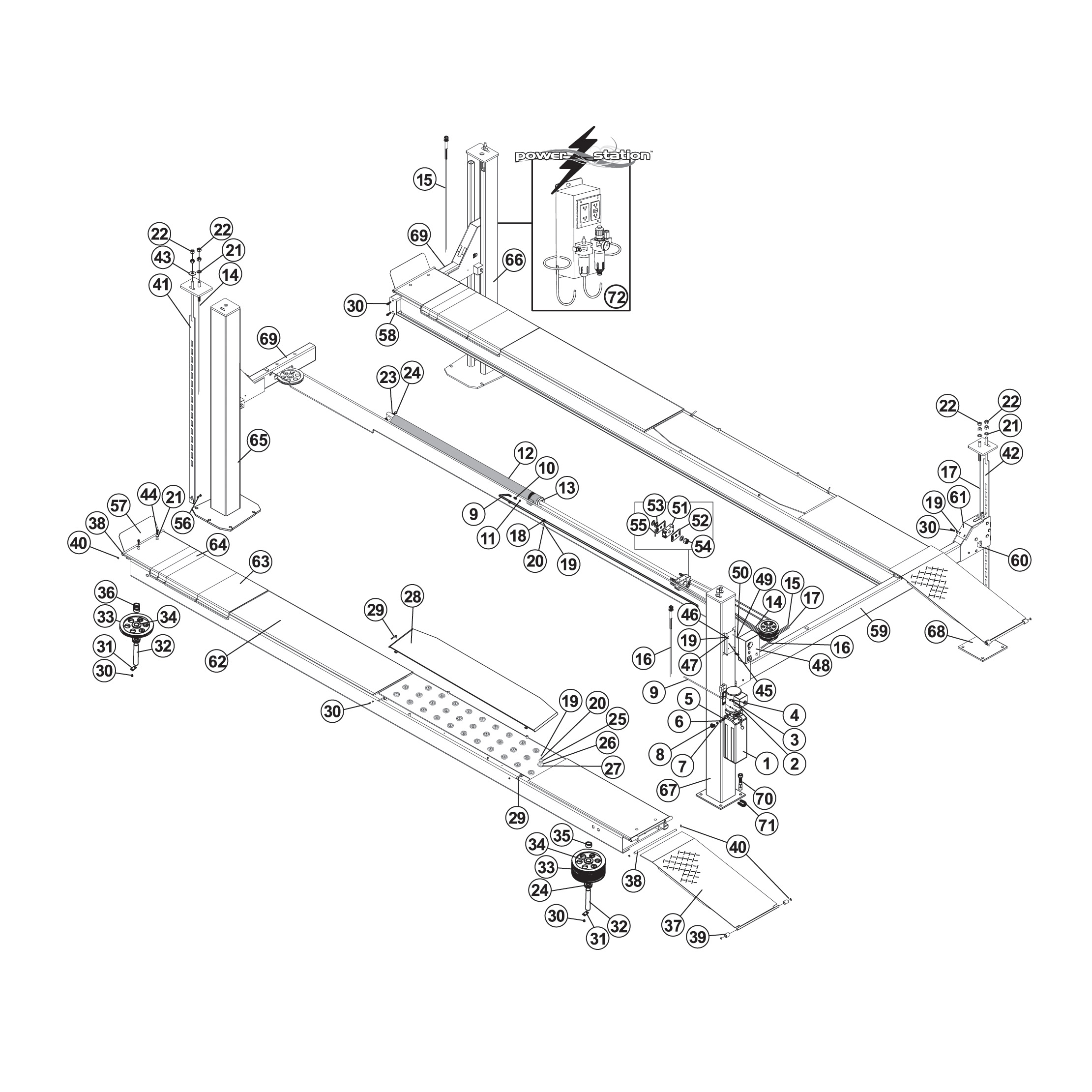

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
6- BH-7488-1113 BH-7488-1113 FP14KO-A-100 Washer
12- BH-7488-1537 BH-7488-1537 FP14KO-A-052 Hydraulic Cylinder
13- BH-7488-1538 BH-7488-1538 FP14KO-A-052x Hydraulic Cylinder Seal Kit
14- BH-7488-1759 BH-7488-1759 FP14KO-A-093 Steel Cable C, Left Front LF 34' 5"
15- BH-7488-1760 BH-7488-1760 FP14KO-A-094 Steel Cable D, Right Front RF 39' 1"
16- BH-7488-1761 BH-7488-1761 FP14KO-A-096 Steel Cable A, Left Rear LR 14' 8"
17- BH-7488-1762 BH-7488-1762 FP14KO-A-095 Steel Cable B, Right Rear RR 19' 4-1/2"
24- BH-7488-1769 BH-7488-1769 FP14KO-A-045 Retaining Ring
31- BH-7488-1776 BH-7488-1776 FP14KO-A-043 Locking Plate
32- BH-7488-1777 BH-7488-1777 FP14KO-A-042 Spindle II / 2
33- BH-7488-1778 BH-7488-1778 FP14KO-A-040 Wheel / Pulley, (2 bushings required)
34- BH-7488-1779 BH-7488-1779 FP14KO-A-041 Multiple Bush
35- BH-7488-1780 BH-7488-1780 FP14KO-A-044 Cover II / 2, round steel
71- BH-7512-92 BH-7512-92 — Plastic Shim Assortment 150 pk (3 sizes)
72- BH-7069-K BH-7069-K SVI Exclusive Power Station (for 4-Post Lift)
1- Call For Details — Hydraulic Pump, 1 Ph, 220V
2- BH-7488-1752
(Call For Details) 		FP14KO-A-017 Hex Bolt
3- BH-7488-1108
(Call For Details) 		FP14KO-A-018 Spring Washer
4- BH-7488-1152
(Call For Details) 		FP14KO-A-019 Flat Washer
5- Call For Details — Hydraulic Pump Fitting
7- BH-7488-1753
(Call For Details) 		FP14KO-A-099 Nut
8- BH-7488-1111
(Call For Details) 		FP14KO-A-098 Elbow Fitting
9- BH-7488-1754
(Call For Details) 		FP14KO-A-097 Hydraulic Hose
10- BH-7488-1755
(Call For Details) 		FP14KO-A-102 Hydraulic Cylinder Fitting
11- BH-7488-1756
(Call For Details) 		FP14KO-A-103 Sealing Ring, D14
18- BH-7488-1763
(Call For Details) 		FP14KO-A-038 Hose Clip
19- BH-7488-1764
(Call For Details) 		FP14KO-A-022 Flat Washer
20- BH-7488-1765
(Call For Details) 		FP14KO-A-034 Inner Hex Bolt
21- BH-7488-1766
(Call For Details) 		FP14KO-A-006 Flat Washer, steel
22- BH-7488-1767
(Call For Details) 		FP14KO-A-012 Hex Nut
23- BH-7488-1768
(Call For Details) 		FP14KO-A-046 Cylinder Pin
25- BH-7488-1770
(Call For Details) 		FP14KO-A-035 Inner Washer
26- BH-7488-1771
(Call For Details) 		FP14KO-A-036 Steel Ball
27- BH-7488-1772
(Call For Details) 		FP14KO-A-037 Spring Pad
28- BH-7488-1773
(Call For Details) 		FP14KO-A-031 Cover
29- BH-7488-1774
(Call For Details) 		FP14KO-A-032 Raw Pin
30- BH-7488-1775
(Call For Details) 		FP14KO-A-033 Screw M6x10
36- BH-7488-1781
(Call For Details) 		FP14KO-A-039 Cover I / 1, Nylon
37- BH-7488-1782
(Call For Details) 		FP14KO-A-001 Approach Ramp
38- BH-7488-1783
(Call For Details) 		FP14KO-A-004 Spindle I / 1
39- BH-7488-1784
(Call For Details) 		FP14KO-A-002 Idler Wheel - Nylon
40- BH-7488-1785
(Call For Details) 		FP14KO-A-003 Retaining Ring
41- BH-7488-1786
(Call For Details) 		FP14KO-A-009 Lock Ladder I / 1
42- BH-7488-1787
(Call For Details) 		FP14KO-A-014 Lock Ladder II / 2
43- BH-7488-1788
(Call For Details) 		FP14KO-A-011 Big Washer, steel
44- BH-7488-1789
(Call For Details) 		FP14KO-A-005 Inner Hex Bolt
45- BH-7488-1790
(Call For Details) 		FP14KO-A-026 Motor Base
46- BH-7488-1203
(Call For Details) 		FP14KO-A-023 Spring Washer
47- BH-7488-1791
(Call For Details) 		FP14KO-A-021 Hex Bolt
48- BH-7488-1792
(Call For Details) 		FP14KO-A-020 Control Box
49- BH-7488-1793
(Call For Details) 		FP14KO-A-024 Cross Screw
50- BH-7488-1794
(Call For Details) 		FP14KO-A-025 Hex Nut
51- BH-7488-1795
(Call For Details) 		FP14KO-A-050 Clip 2
52- BH-7488-1796
(Call For Details) 		FP14KO-A-049 Clip 1
53- BH-7488-1797
(Call For Details) 		FP14KO-A-048 Flat Washer
54- BH-7488-1798
(Call For Details) 		FP14KO-A-047 Hexagon Slotted Nuts
55- BH-7488-1799
(Call For Details) 		FP14KO-A-051 Snap Ring
56- BH-7488-1801
(Call For Details) 		FP14KO-A-010 Hex Bolt
57- BH-7488-1802
(Call For Details) 		FP14KO-A-027 Wheel Stop
58- BH-7488-1803
(Call For Details) 		FP14KO-A-090 End Plate
59- BH-7488-1804
(Call For Details) 		FP14KO-A-053 Cross Beam I / 1
60- BH-7488-1805
(Call For Details) 		FP14KO-A-075 Nylon Slider Block
61- BH-7488-1806
(Call For Details) 		FP14KO-A-076 Protective Wheel Cover 1
62- BH-7488-1809
(Call For Details) 		FP14KO-A-030 Runway 1/2 (1 each)
63- BH-7488-1825
(Call For Details) 		FP14KO-A-029 Plate 2
64- BH-7488-1826
(Call For Details) 		FP14KO-A-028 Plate 1
65- BH-7488-1810
(Call For Details) 		FP14KO-A-008 Column I / 1
66- BH-7488-1811
(Call For Details) 		FP14KO-A-007 Column II / 2
67- BH-7488-1812
(Call For Details) 		FP14KO-A-015 Column III / 3
68- BH-7488-1813
(Call For Details) 		FP14KO-A-013 Column IV / 4
69- BH-7488-1817
(Call For Details) 		FP14KO-A-091 Cross Beam Section II / 2
69- BH-7488-1818
(Call For Details) 		FP14KO-A-092 Cross Beam Section III / 3
70- BH-7075-03
(Call For Details) 		— Wedge Anchor Bolt 3/4" x 5-1/2"
