Click on the part number for more information

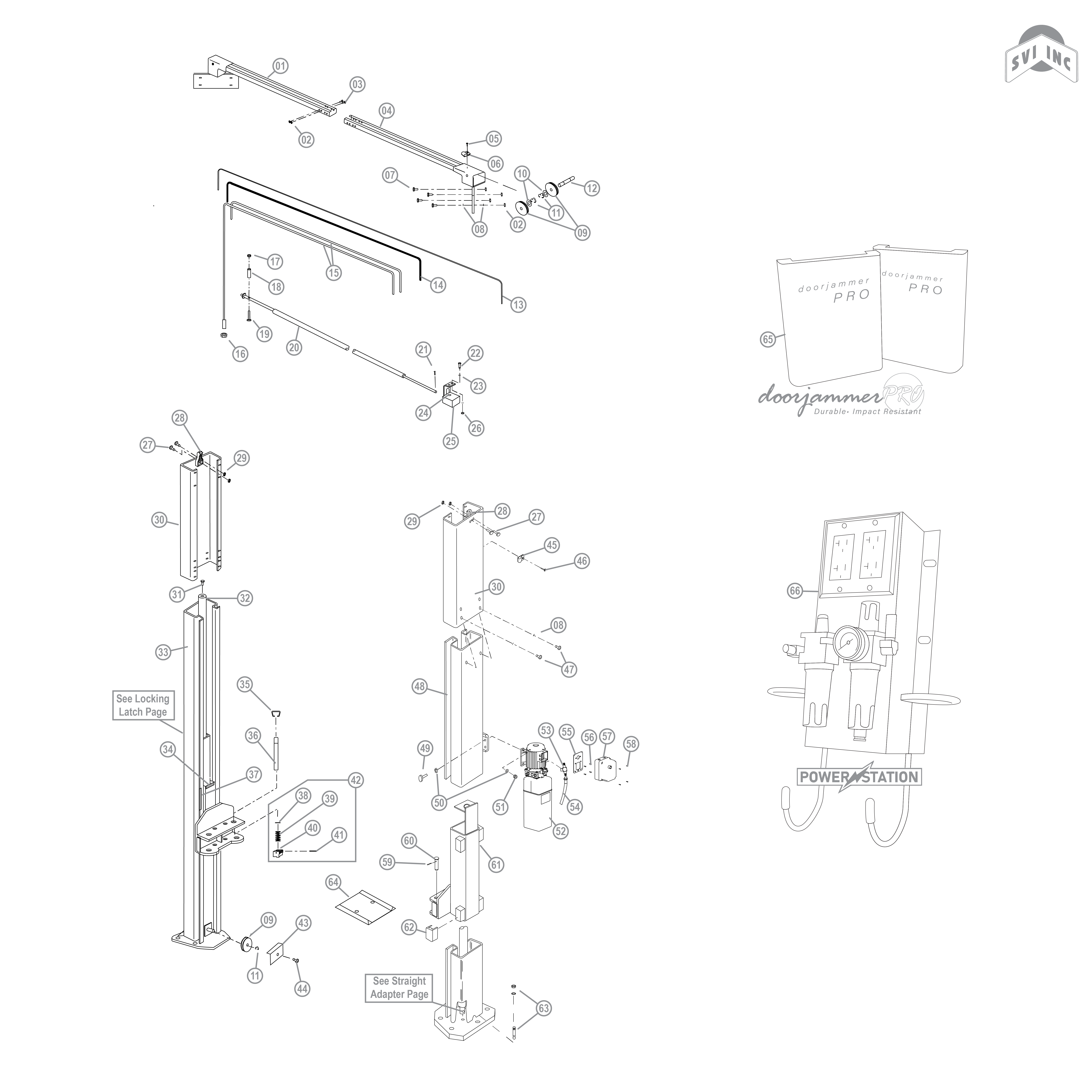

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
- BH-7004-36 BH-7004-36 — Microswitch
Multiple- BH-7542-62 BH-7542-62 — Overhead and Limit Bar Assembly - Blue Includes Items 1, 4, 20, 25
6- BH-7529-18 BH-7529-18 FJ7206 Hose Clip – (Overhead)
9- BH-7500-50N BH-7500-50N FJ7116-1 Sheave
9- BH-7500-50 BH-7500-50 — Cable Sheave - Steel
10- BH-7500-49B BH-7500-49B 41388 Bushing – (1-1/2" O.D. x .760-.770" I.D. x .045")
11- BH-7500-62A BH-7500-62A 41411 Retaining Ring for 3/4" Shaft
12- BH-7500-68 BH-7500-68 FJ7444-8 Sheave – Shaft
14- BH-7512-20 BH-7512-20 FJ839 Overhead Hose – SPOA9
14- BH-7512-23 BH-7512-23 FJ842 Overhead Hose EH-1 Models
14- BH-7512-24 BH-7512-24 FJ843 Overhead Hose EH-2 Models
15- BH-7500-41 BH-7500-41 N33 Equalizer Cable Standard height
15- BH-7528-74 BH-7528-74 N34 Equalizer Cable EH-1 Models
15- BH-7528-75 BH-7528-75 N35 Equalizer Cable EH-2 Models
18- BH-7503-29 BH-7503-29 FJ7871 Spacer – (3/4")
20- BH-7508-34 BH-7508-34 FJ7613-2 Switch Bar – Assembly
21- BH-7521-45 BH-7521-45 41200 Cotter Pin – (1/8" x 1")
24- BH-7503-65S BH-7503-65S N413-1 Limit Switch – (≤250V)
25- BH-7503-65 BH-7503-65 N413 Limit Switch – Assembly (≤250V)
28- BH-7528-94 BH-7528-94 N69 Latch Cable Guide
30- BH-7528-91 BH-7528-91 N410 Column Extension Standard height
32- BH-7545-14 BH-7545-14 FA7132-2 Hydraulic Cylinder Assembly, 68" Stroke
35- BH-7508-20 BH-7508-20 FJ7985-1 Actuator Pin – Handle
36- BH-7528-07 BH-7528-07 N121-1 Actuator Pin
38- BH-7528-06 BH-7528-06 N119-3 Retaining – Pin
39- BH-7535-58 BH-7535-58 FJ7656-2 Arm Restraint – Spring
40- BH-7508-17 BH-7508-17 FJ7749 Gear Block – 120T (120T)
41- BH-7519-28 BH-7519-28 14427 Spring Pin – Stainless (1/4" Dia x 1-1/2")
42- BH-7508-21 BH-7508-21 FJ7888 Arm Restraint – Kit (1 Arm) *NOTE: Includes items 13, 14, 15, 16, 19, 35, 58, 60 & 61
43- BH-7502-33 BH-7502-33 N119-1 Sheave – Cover
45- BH-7534-77 BH-7534-77 FJ7499 Hose Clip (Column)
52- BH-7520-08 BH-7520-08 P1302 Power Unit Single Phase
52- BH-7520-06 BH-7520-06 P1347 Power Unit 3 Phase
53- BH-7535-69 BH-7535-69 FJ7668 Tee – Branch
54- BH-7512-41 BH-7512-41 FJ837 Power Unit Hose
55- BH-7545-14 BH-7545-14 FA7132-2 Control Box – Adapter Plate
60- BH-7505-14 BH-7505-14 FJ7838 Arm – Pin
62- BH-7510-03 BH-7510-03 FJ7360 Slider Block
65- BH-7077-02-2S BH-7077-02-2S SVI Exclusive SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair)
65- BH-7077-02-2 BH-7077-02-2 SVI Exclusive SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair)
66- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
- BH-7557-1124
(Call For Details) 		FJ-7595-1KIT Locking Latch Cable and Clamp Kit
1- Call For Details — Overhead – Left Weldment
2- Call For Details — Locknut – Flanged (3/8"-16NC)
3- Call For Details — Bolt – Hex Head Cap Screw (3/8"-16NC x 3/4")
4- Call For Details — Overhead – Right Weldment
5- Call For Details — Screw – Slotted Hex Washer Head (#12 Type B x 1/2")
7- Call For Details — Bolt – Flanged Hex Head Cap Screw (3/8"-16NC x 1")
8- Call For Details — Lockwasher – External Tooth (3/8")
13- Call For Details — Latch Cable – Locking
13- Call For Details — Locking Latch Cable
13- Call For Details — Locking Latch Cable EH-1 or EH-2 Models
16- Call For Details — Nut – Hex Lock (1/2"-13NC)
17- Call For Details — Locknut – Insert (1/4"-20NC)
19- Call For Details — Bolt – Hex Head Cap Screw (1/4"-20NC x 2")
22- Call For Details — Bolt – Hex Head Cap Screw Grade 5 (1/4"-20NC x 3/4")
23- Call For Details — Lockwasher – External Tooth (1/4")
24- BH-7537-21A
(Call For Details) 		FJ7979-1 Limit Switch – (>250V)
25- Call For Details — Limit Switch – Assembly (>250V)
26- Call For Details — Nut – Hex (1/4"-20NC Zinc)
27- Call For Details — Bolt – Hex Head Cap Screw Grade 5 (1/4"-20NC x 1")
29- Call For Details — Locknut – Flanged (1/4"-20NC)
30- Call For Details — Column Extension EH-1 Models
30- Call For Details — Column Extension EH-2 Models
31- Call For Details — Bleeder – Screw (Specify Manufacturer)
32- Call For Details — Hydraulic – Cylinder
33- Call For Details — L.H. Column Weldment
34- Call For Details — Carriage – Bumper
37- Call For Details — Approach – Bumper
41a- BH-7557-1124
(Call For Details) 		FJ-7595-1KIT Locking Latch Cable and Clamp Kit
44- Call For Details — Screw – Pan Head Machine (1/4"-20NC x 3/8")
46- Call For Details — Screw – Pan Head Machine (5/16"-18NC x 3/8")
47- Call For Details — Bolt – Flanged Hex Head Cap Screw (3/8"-16NC x 1/2")
48- Call For Details — Column – Right Weldment
49- Call For Details — Bolt – Full Thread (5/16"-18NC x 1-1/2")
50- Call For Details — Lockwasher – External Tooth (5/16")
51- Call For Details — Nut – Hex (5/16"-18NC)
56- Call For Details — Screw – Flat Head Machine (M5 x 0.7 x 8mm)
57- Call For Details — Control – Panel
58- Call For Details — Screw – Self-Tapping Pan Head Machine (#8-32NC x 1/2")
59- Call For Details — Cotter Pin – (3/16" x 2")
61- BH-7537-55
(Call For Details) 		N89 Carriage – Yoke Weldment
63- Call For Details — Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20
64- Call For Details — Spotting Wheel Dish Kit
