Click on the part number for more information

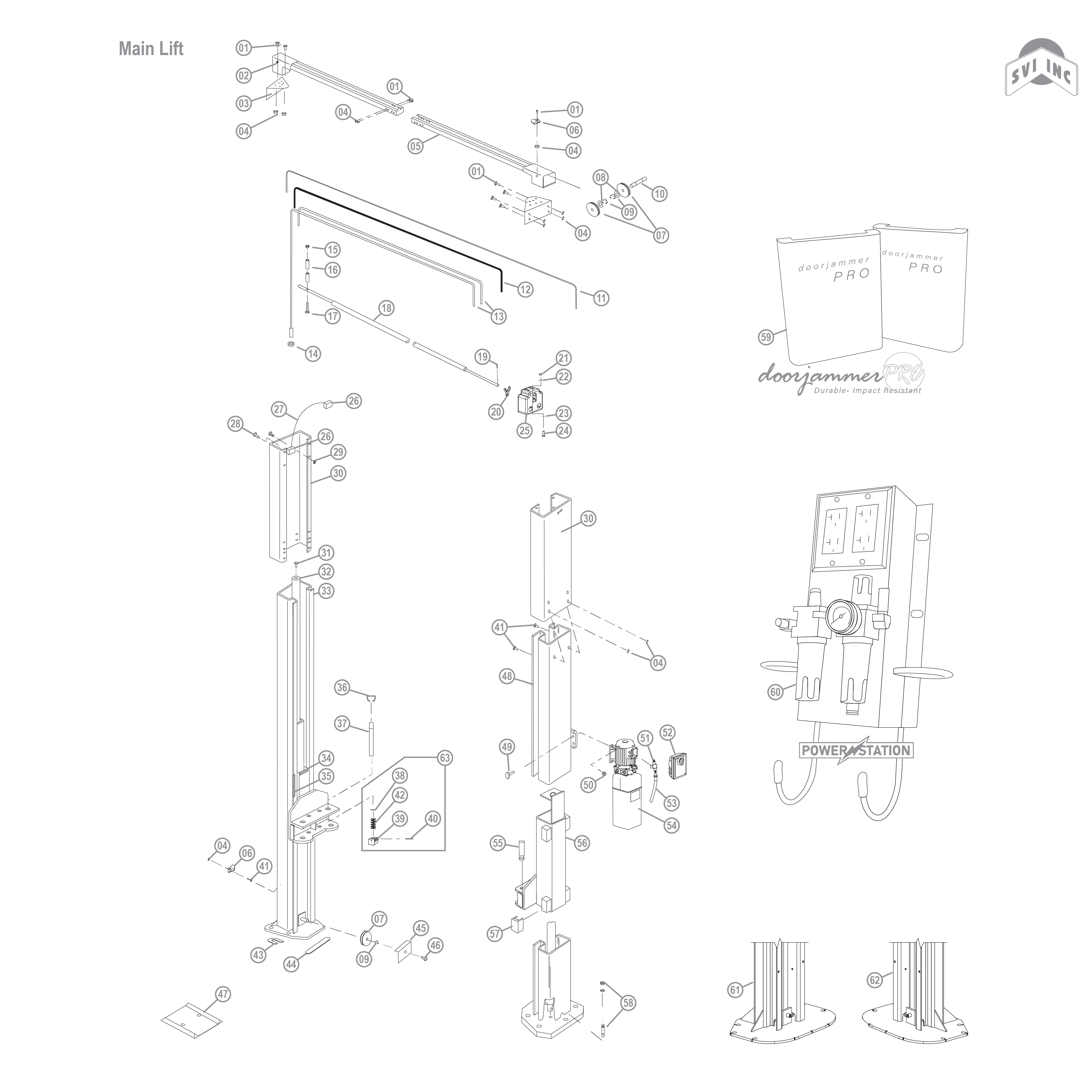

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
- BH-7508-42 BH-7508-42 N2148 Arm Restraint Kit (1 Arm)*
3- BH-7545-07 BH-7545-07 N439 Column Mounting Bracket
6- BH-7529-18 BH-7529-18 N383 Hose Clip
7- BH-7530-01N BH-7530-01N N377 Sheave
8- BH-7500-49B BH-7500-49B 41388 Bushing (1-1/2" O.D. x .760–.770" I.D. x .045")
9- BH-7500-62A BH-7500-62A 41411 Retaining Ring for 3/4" Shaft
10- BH-7500-68 BH-7500-68 FJ7444-8 Sheave Shaft
11- BH-7535-21 BH-7535-21 FJ7600 Locking Latch Cable
12- BH-7545-73 BH-7545-73 N3103 Overhead Hose – Standard
12- BH-7512-23 BH-7512-23 FJ842 Overhead Hose EH-1 Models
12- BH-7512-24 BH-7512-24 FJ843 Overhead Hose EH-2 Models
13- BH-7529-86 BH-7529-86 N372 Equalizer Cable Standard Height
13- BH-7529-92 BH-7529-92 N378 Equalizer Cable EH-1 Models
13- BH-7529-88 BH-7529-88 N373 Equalizer Cable EH-2 Models
16- BH-7503-29 BH-7503-29 FJ7871 Spacer (3/4")
18- BH-7545-08 BH-7545-08 N467 Switch Bar Assembly
19- BH-7521-45 BH-7521-45 41200 Cotter Pin (1/8" x 1" Lg., 3Ø Only)
26- BH-7545-01 BH-7545-01 N619 Cable End Bracket
27- BH-7545-01A BH-7545-01A N618 Cable Guide
32- BH-7545-14 BH-7545-14 N3156 Hydraulic Cylinder Assembly, 68" Stroke
32- BH-7545-12NF BH-7545-12NF N382 Hydraulic Cylinder – 71" Rise
36- BH-7508-20 BH-7508-20 FJ7985-1 Actuator Pin Handle
37- BH-7528-07 BH-7528-07 N121-1 Actuator Pin
38- BH-7528-06 BH-7528-06 N119-3 Retaining Pin
39- BH-7545-17 BH-7545-17 N2121 Arm Restraint Pawl
40- BH-7519-28 BH-7519-28 14427 Spring Pin – Stainless (1/4" Dia. x 1-1/2" Lg.)
42- BH-7535-58 BH-7535-58 FJ7656-2 Arm Restraint Spring
43- BH-7512-90 BH-7512-90 FJ716-6 Shim
45- BH-7502-33 BH-7502-33 N119-1 Sheave Cover
48- BH-7545-04 BH-7545-04 N755 Column Weldment – Right Standard
51- BH-7535-69 BH-7535-69 FJ7668 Branch Tee
52- BH-7515-70 BH-7515-70 FA7366-1 Capacitor Box Cover Plate
53- BH-7512-41 BH-7512-41 FJ837 Power Unit Hose
55- BH-7545-54 BH-7545-54 N2154 Arm Pin
57- BH-7510-03 BH-7510-03 FJ7360 Slider Block
59- BH-7077-02-2S BH-7077-02-2S SVI Exclusive SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair)
59- BH-7077-02-2 BH-7077-02-2 SVI Exclusive SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair)
60- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
63- BH-7508-42 BH-7508-42 N2148 Arm Restraint Kit (1 Arm) *NOTE: Includes items 12, 13, 14, 15, 18 & 57. Also includes Restraint Gears and attaching hardware (items 20, 21 & 22) from Arm Detail section.
1- Call For Details — Flanged Hex Head Cap Screw (3/8"-16NC x 3/4" Lg.)
2- Call For Details — Overhead Assembly – Left (Outer)
4- Call For Details — Flanged Locknut (3/8"-16NC)
5- Call For Details — Overhead Assembly – Right (Inner)
14- Call For Details — Nylon Insert Lock Nut (5/8"-11NC)
15- Call For Details — Insert Lock Nut (1/4"-20NC)
17- Call For Details — Hex Head Cap Screw (1/4"-20NC x 2-3/4")
20- Call For Details — Actuator Assembly – 3Ø
21- Call For Details — Zinc Hex Nut (1/4"-20NC)
22- Call For Details — External Tooth Lockwasher (1/4")
23- Call For Details — Flat Washer (1/4")
24- Call For Details — Hex Head Cap Screw (1/4"-20NC x 3/4" Lg.)
25- Call For Details — Cutoff Switch Assembly
28- Call For Details — Hex Head Cap Screw – Grade 5 (1/4"-20NC x 1")
29- Call For Details — Flanged Locknut (1/4"-20NC)
30- BH-7545-09
(Call For Details) 		N470 Column Extension – Standard Height
30- Call For Details — Column Extension EH-1 Models
30- BH-7529-09
(Call For Details) 		N472 Column Extension EH-2 Models
31- Call For Details — Bleeder Screw – Specify Manufacturer
33- BH-7545-03
(Call For Details) 		N752 Column Weldment – Left Standard
34- Call For Details — Carriage Bumper
35- Call For Details — Approach Bumper
41- Call For Details — Carriage Bolt (3/8"-16NC x 3/4")
44- BH-7535-62
(Call For Details) 		FJ7659-3 Shim – Front
46- Call For Details — Pan Head Machine Screw – Plated (1/4"-20NC x 3/8" Lg.)
47- Call For Details — Wheel Spotting Dish Kit
49- Call For Details — Flanged Hex Head Cap Screw – Full Thread (5/16"-18NC x 1-1/2")
50- Call For Details — Hex Flanged Lock Nut (5/16"-18NC)
52- Call For Details — Capacitor Box
52- Call For Details — Drum Switch
52- Call For Details — Drum Switch Lever
52- Call For Details — Pan Head Machine Screw – Plated (M5 x 45)
54- Call For Details — Power Unit *NOTE: Call for details
56- BH-7545-02
(Call For Details) 		N822 Carriage Yoke Weldment
58- Call For Details — Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20
61- Call For Details — Column Weldment – Left Seismic
62- Call For Details — R.H. Column Standard Weldment
