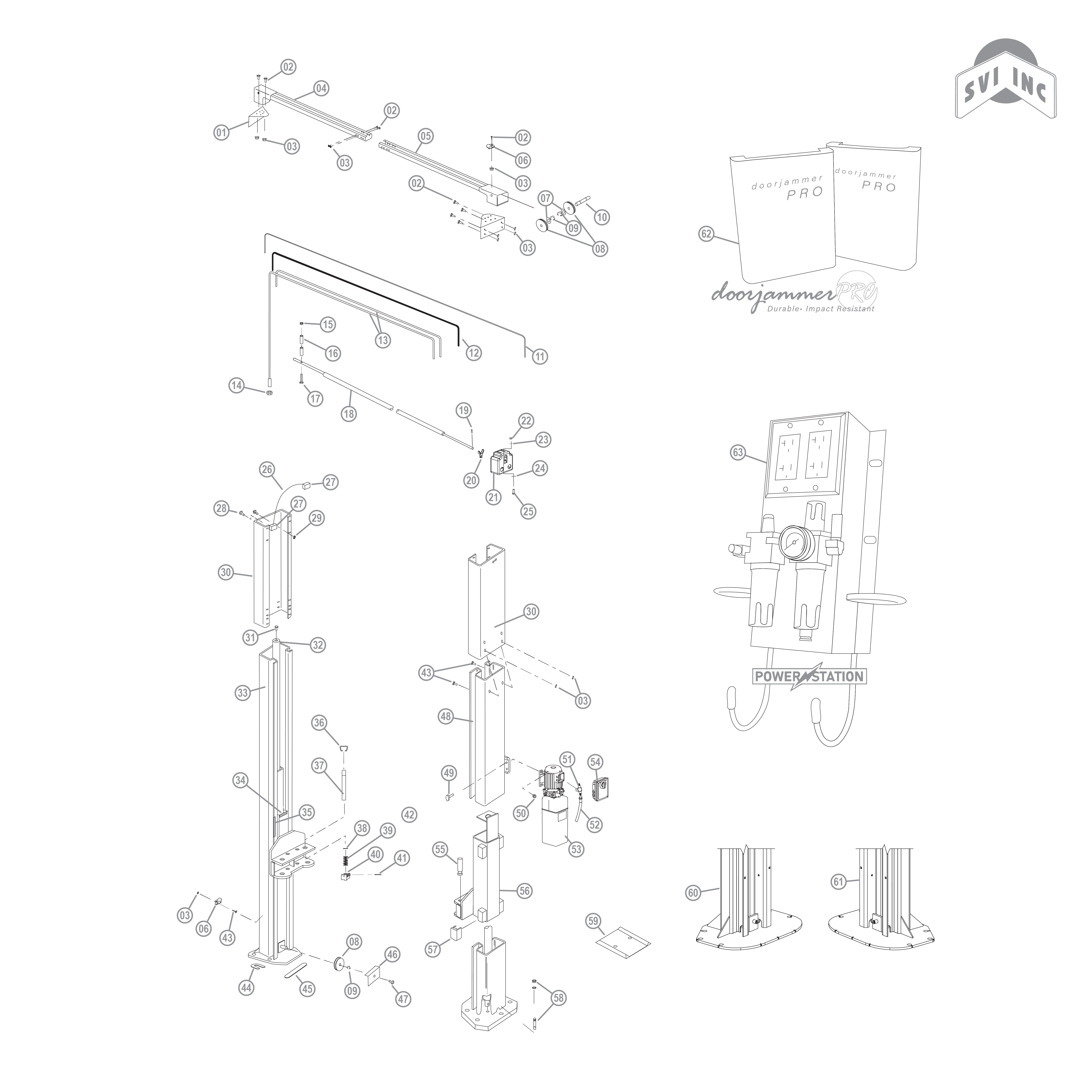

Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 1- |  |
BH-7545-07 | N439 | Bracket - Column Mounting |
| 6- |  |
BH-7529-18 | N383 | Hose Clip |
| 7- |  |
BH-7545-14 | N3156 | Hydraulic Cylinder Assembly, 68" Stroke |
| 7- |  |
BH-7500-49B | 41388 | Bushing - Machine (1-1/2" O.D. x .760-.770" I.D. x .045") |
| 8- |  |
BH-7530-01N | N377 | Sheave |
| 9- |  |
BH-7500-62A | 41411 | Retaining Ring for 3/4" Shaft |
| 10- |  |
BH-7500-68 | FJ7444-8 | Shaft - Sheave |
| 11- |  |
BH-7535-21 | FJ7600 | Cable - Locking Latch |
| 12- |  |
BH-7545-73 | N3103 | Hose - Overhead (Standard) |
| 13- |  |
BH-7529-86 | N372 | Cables - Equalizer |
| 13- |  |
BH-7529-87 | N384 | Equalizer Cable SPOA10NB - Standard Height |
| 13- |  |
BH-7529-94 | N385 | Equalizer Cable SPOA10NB - EH-1 Models |
| 13- |  |
BH-7529-95 | N386 | Equalizer Cable SPOA10NB - EH-2 Models |
| 13- | |
BH-7529-86 | N372 | Equalizer Cable Standard Height |
| 13- |  |
BH-7529-92 | N378 | Equalizer Cable EH-1 Models |
| 13- |  |
BH-7529-88 | N373 | Equalizer Cable EH-2 Models |
| 16- |  |
BH-7503-29 | FJ7871 | Spacer - 3/4" |
| 18- |  |
BH-7545-08 | N467 | Switch Bar Assembly |
| 18- |  |
BH-7528-80 | N415 | Assembly - Switch Bar (1Ø SPOA10NB) |
| 18- | |
BH-7545-08 | N467 | Assembly - Switch Bar (1Ø SPOA10/SPO10 / 3Ø w/ Push Button) |
| 19- |  |
BH-7521-45 | 41200 | Cotter Pin (1/8” x 1” Lg.) (3Ø only) |
| 26- |  |
BH-7545-01A | N618 | Guide - Cable |
| 27- |  |
BH-7545-01 | N619 | Bracket - Cable End |
| 32- |  |
BH-7545-12NF | N382 | Cylinder - Hydraulic (71" Rise) |
| 36- |  |
BH-7508-20 | FJ7985-1 | Handle - Actuator Pin |
| 37- |  |
BH-7528-07 | N121-1 | Pin - Actuator |
| 38- |  |
BH-7528-06 | N119-3 | Pin - Retaining |
| 39- |  |
BH-7535-58 | FJ7656-2 | Spring - Arm Restraint |
| 40- |  |
BH-7545-17 | N2121 | Pawl - Arm Restraint |
| 41- |  |
BH-7519-28 | 14427 | Spring Pin - (1/4" dia. X 1-1/2" Lg., Stainless) |
| 42- |  |
BH-7508-42 | N2148 | Arm Restraint Kit (1 Arm) *NOTE: Includes items 12, 13, 14, 15, 18 & 57. Also includes Restraint Gears and attaching hardware (items 20, 21 & 22) from Arm Detail section. |
| 44- |  |
BH-7512-90 | FJ716-6 | Shim |
| 46- |  |
BH-7502-33 | N119-1 | Cover - Sheave |
| 48- |  |
BH-7545-04 | N755 | Column Standard Weldment - Right |
| 51- |  |
BH-7535-69 | FJ7668 | Branch Tee |
| 52- |  |
BH-7512-41 | FJ837 | Power Unit Hose |
| 54- |  |
BH-7515-70 | FA7366-1 | Cover Plate - Capacitor Box |
| 55- |  |
BH-7545-54 | N2154 | Pin - Arm |
| 57- |  |
BH-7510-03 | FJ7360 | Slider Block |
| 62- |  |
BH-7077-02-2S | SVI Exclusive | SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair) |
| 62- |  |
BH-7077-02-2 | SVI Exclusive | SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair) |
| 63- |  |
BH-7070-K | SVI Exclusive | Power Station (for 2-Post Lift) |
| 2- | Call For Details | — | Hex Head Cap Screw - Flanged (3/8"-16NC x 3/4" Long) | |
| 3- | Call For Details | — | Locknut - Flanged (3/8"-16NC) | |
| 4- | Call For Details | — | Overhead Assembly - Left (Outer) | |
| 5- | Call For Details | — | Overhead Assembly - Right (Inner) | |
| 14- | Call For Details | — | Lock Nut - Nylon Insert (5/8"-11NC) | |
| 15- | Call For Details | — | Locknut - Insert (1/4"-20NC) | |
| 17- | Call For Details | — | Hex Head Cap Screw (1/4"-20NC x 2-3/4") | |
| 18- | Call For Details | — | Assembly - Switch Bar (3Ø) | |
| 20- | Call For Details | — | Actuator Assembly (3Ø) | |
| 21- | Call For Details | — | Switch Assembly - Cutoff | |
| 22- | Call For Details | — | Hex Nut - Zinc (1/4"-20NC) | |
| 23- | Call For Details | — | Lockwasher - External Tooth (1/4") | |
| 24- | Call For Details | — | Washer - Flat (1/4") | |
| 25- | Call For Details | — | Hex Head Cap Screw (1/4"-20NC x 3/4" Lg.) | |
| 28- | Call For Details | — | Hex Head Cap Screw (1/4"-20NC x 1", Grade 5) | |
| 29- | Call For Details | — | Locknut - Flanged (1/4"-20NC) | |
| 30- |
BH-7545-09 (Call For Details) |
N470 | Column Extension - Standard Height | |
| 30- | Call For Details | — | Column Extension EH-1 Models | |
| 30- |
BH-7529-09 (Call For Details) |
N472 | Column Extension EH-2 Models | |
| 31- | Call For Details | — | Screw - Bleeder (Specify Manufacturer) | |
| 33- |
BH-7545-03 (Call For Details) |
N752 | Column Standard Weldment - Left | |
| 34- | Call For Details | — | Bumper - Carriage | |
| 35- | Call For Details | — | Bumper - Approach | |
| 43- | Call For Details | — | Carriage Bolts (3/8"-16NC x 3/4") | |
| 45- |
BH-7535-62 (Call For Details) |
FJ7659-3 | Shim - Front | |
| 47- | Call For Details | — | Pan Head Machine Screw - Plated (1/4"-20NC x 3/8" Lg.) | |
| 49- | Call For Details | — | Hex Head Cap Screw - Flanged (5/16"-18NC x 1-1/2", Full Thread) | |
| 50- | Call For Details | — | Lock Nut - Hex Flanged (5/16"-18NC) | |
| 53- | Call For Details | — | Power Unit | |
| 54- | Call For Details | — | Box - Capacitor | |
| 54- | Call For Details | — | Switch - Drum | |
| 54- | Call For Details | — | Lever - Drum Switch | |
| 54- | Call For Details | — | Pan Head Machine Screw - Plated (M5 x 45) | |
| 56- |
BH-7545-02 (Call For Details) |
N822 | Weldment - Carriage Yoke | |
| 58- | Call For Details | — | Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20 | |
| 59- |
BH-9701 (Call For Details) |
FF729 | Kit - Wheel Spotting Dish | |
| 60- | Call For Details | — | Column Seismic Weldment - Left | |
| 61- | Call For Details | — | Column Standard Weldment - Right |
