Click on the part number for more information

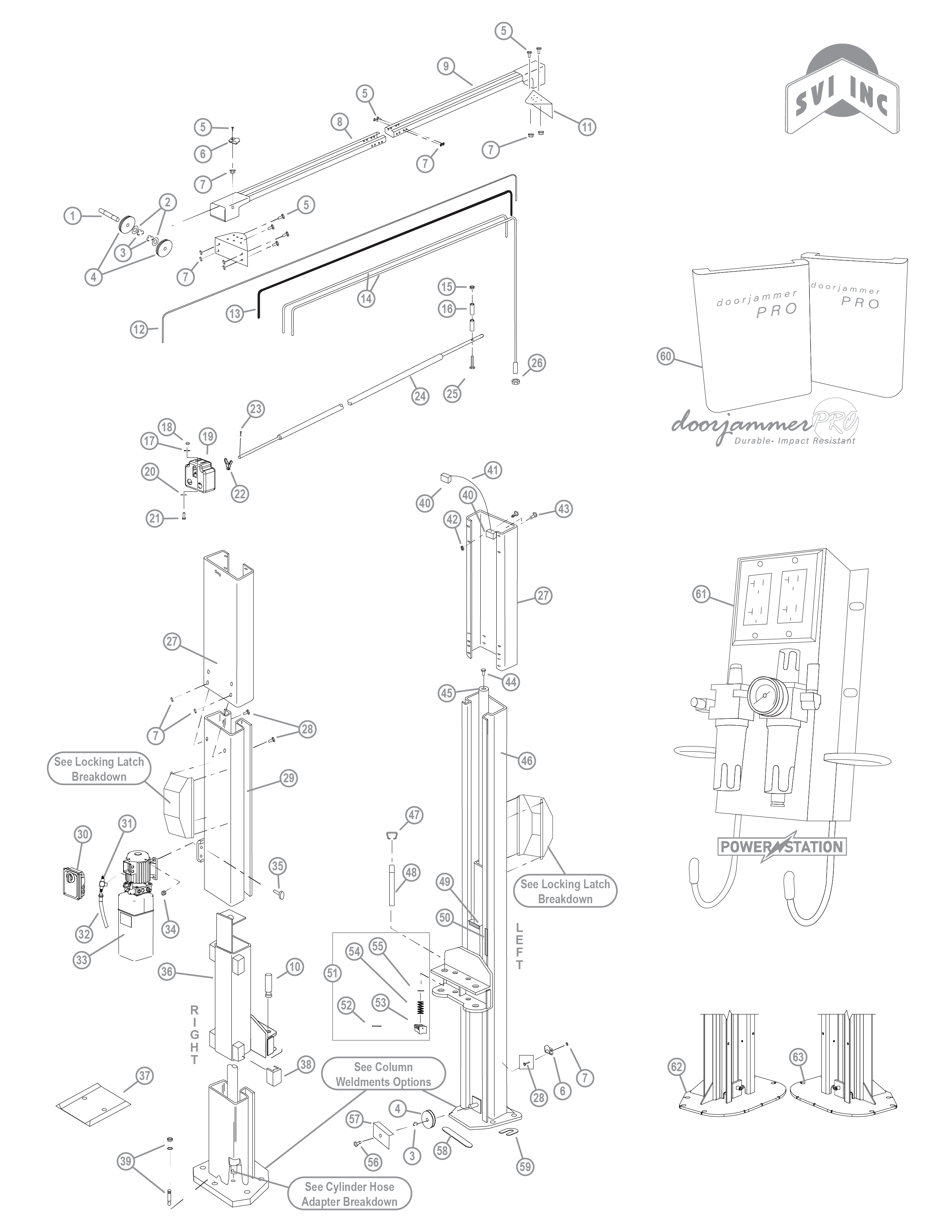

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
1- BH-7500-68 BH-7500-68 FJ7444-8 Sheave Shaft
2- BH-7500-49B BH-7500-49B 41388 1-1/2" O.D. x .760-.770" I.D. x .045" Bushing
3- BH-7500-62A BH-7500-62A 41411 Retaining Ring for 3/4" Shaft
4- BH-7530-01N BH-7530-01N N377 Sheave
6- BH-7529-18 BH-7529-18 N383 Hose Clip
7- BH-7545-14 BH-7545-14 N3156 Hydraulic Cylinder Assembly, 68" Stroke
10- BH-7545-54 BH-7545-54 N2154 Arm Pin
11- BH-7545-07 BH-7545-07 N439 Column Mounting Bracket
12- BH-7535-21 BH-7535-21 FJ7600 Locking Latch Cable
13- BH-7545-73 BH-7545-73 N3103 Overhead Hose - Standard Height
14- BH-7529-86 BH-7529-86 N372 Equalizer Cables - Standard Height
16- BH-7503-29 BH-7503-29 FJ7871 3/4" Spacer
23- BH-7521-45 BH-7521-45 41200 1/8” x 1” Lg. Cotter Pin (3Ø only)
24- BH-7545-08 BH-7545-08 N467 Switch Bar Assembly
29- BH-7545-04 BH-7545-04 N755 R.H. Column Standard Weldment
30- BH-7515-70 BH-7515-70 FA7366-1 Capacitor Box Cover Plate
31- BH-7535-69 BH-7535-69 FJ7668 Branch Tee
32- BH-7512-41 BH-7512-41 FJ837 Power Unit Hose
38- BH-7510-03 BH-7510-03 FJ7360 Slider Block
38- BH-7512-23 BH-7512-23 FJ842 Overhead Hose - EH-1 Model
38- BH-7512-24 BH-7512-24 FJ843 Overhead Hose - EH-2 Model
39- BH-7529-92 BH-7529-92 N378 Equalizer Cables - EH-1 Model
39- BH-7529-88 BH-7529-88 N373 Equalizer Cables - EH-2 Model
40- BH-7545-01 BH-7545-01 N619 Cable End Bracket
41- BH-7545-01A BH-7545-01A N618 Cable Guide
45- BH-7545-12NF BH-7545-12NF N382 Hydraulic Cylinder - 71" Rise
47- BH-7508-20 BH-7508-20 FJ7985-1 Actuator Pin Handle
48- BH-7528-07 BH-7528-07 N121-1 Actuator Pin
51- BH-7508-42 BH-7508-42 N2148 Arm Restraint Kit (1 Arm) *NOTE: Includes items 12, 13, 14, 15, 18 & 57. Also includes Restraint Gears and attaching hardware (items 20, 21 & 22) from Arm Detail section.
52- BH-7519-28 BH-7519-28 14427 Spring Pin - 1/4" dia. X 1-1/2" Lg. (Stainless)
53- BH-7545-17 BH-7545-17 N2121 Arm Restraint Pawl
54- BH-7535-58 BH-7535-58 FJ7656-2 Arm Restraint Spring
55- BH-7528-06 BH-7528-06 N119-3 Retaining Pin
57- BH-7502-33 BH-7502-33 N119-1 Sheave Cover
59- BH-7512-90 BH-7512-90 FJ716-6 Shim
3- BH-7529-09
(Call For Details) 		N472 Column Extension - EH-2 Model
5- Call For Details — 3/8" -16 NC x 3/4" Long Flanged HHCS
7- Call For Details — 3/8" -16NC Flanged Locknut
8- Call For Details — R.H. Overhead Assembly (Inner)
9- Call For Details — L.H. Overhead Assembly (Outer)
15- Call For Details — 1/4" -20NC Insert Locknut
17- Call For Details — 1/4" External Tooth Lockwasher
18- Call For Details — 1/4" -20NC Zinc Hex Nut
19- Call For Details — Cutoff Switch Assembly
20- Call For Details — 1/4" Flat Washer
21- Call For Details — 1/4" -20NC x 3/4" Lg. HHCS
22- Call For Details — Actuator Assembly (3Ø)
25- Call For Details — 1/4" -20NC x 2-3/4" HHCS
26- Call For Details — 5/8" -11NC Nylon Insert Lock Nut
26- Call For Details — 1/4" -20NC x 3/8" Lg. PHMS Plated
27- BH-7545-09
(Call For Details) 		N470 Column Extension - Standard Height
27- Call For Details — Column Extension - EH-1 Model
28- Call For Details — 3/8" -16NC x 3/4" Carriage Bolts
30- Call For Details — Capacitor Box
30- Call For Details — Drum Switch
30- Call For Details — Drum Switch Lever
30- Call For Details — M5 x 45 PHMS, Plated
33- Call For Details — Power Unit
34- Call For Details — 5/16" -18NC Hex Flanged Lock Nut
35- Call For Details — 5/16" - 18NC x 1-1/2" Flanged HHCS (Full Thread)
36- BH-7545-02
(Call For Details) 		N822 Carriage Yoke Weldment
37- Call For Details — Wheel Spotting Dish Kit
39- Call For Details — Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20
42- Call For Details — 1/4" -20NC Flanged Locknut
43- Call For Details — 1/4" -20NC x 1" HHCS Grade 5
44- Call For Details — Bleeder Screw (Specify Manufacturer)
46- BH-7545-03
(Call For Details) 		N752 L.H. Column Standard Weldment
49- Call For Details — Carriage Bumper
50- Call For Details — Approach Bumper
58- BH-7535-62
(Call For Details) 		FJ7659-3 Front Shim
62- Call For Details — R.H. Column Standard Weldment
63- Call For Details — L.H. Column Seismic Weldment
