Click on the part number for more information

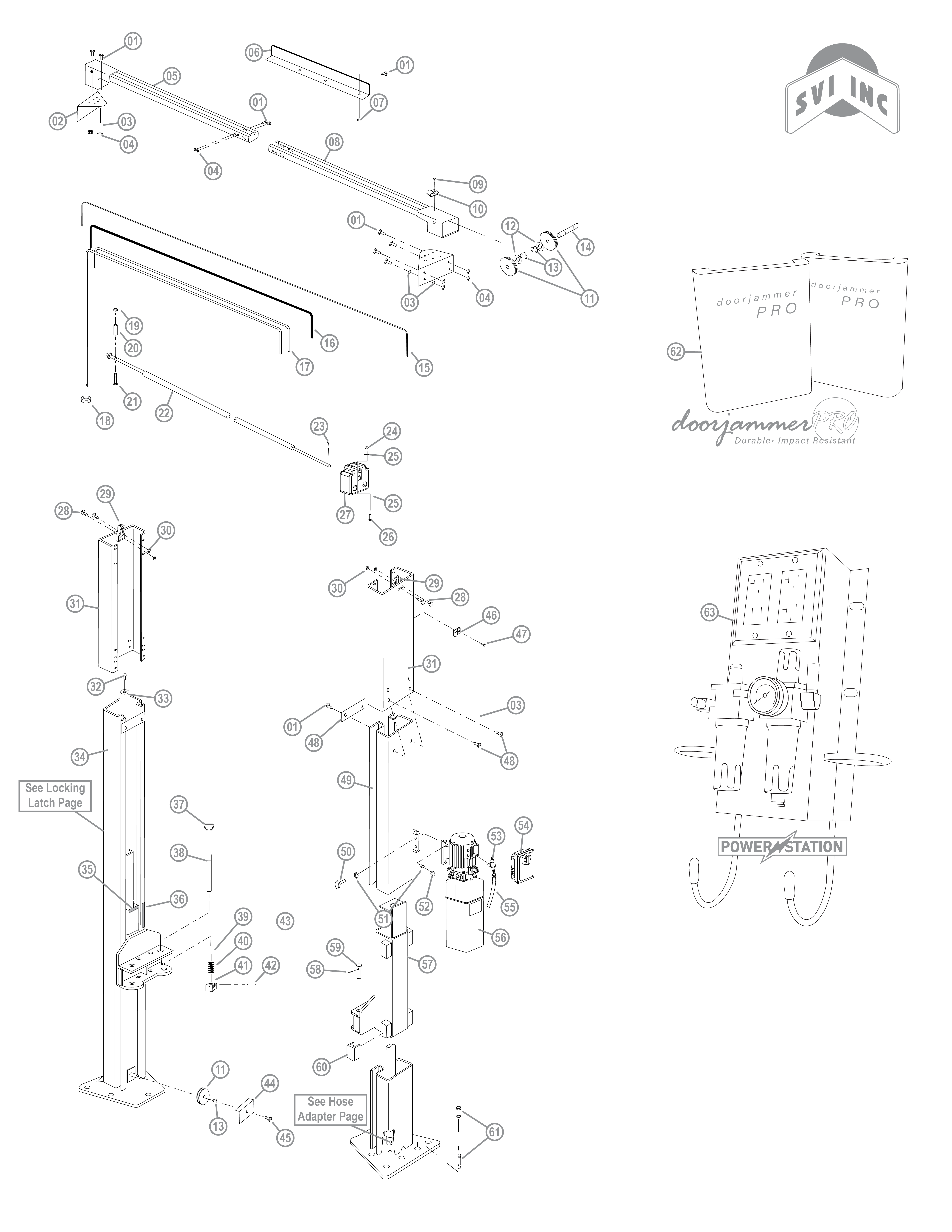

| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| - |  |
BH-7545-14 | — | Hydraulic Cylinder Assembly, 68" Stroke |
| - |  |
BH-7508-16A | — | |
| - |  |
BH-7528-68 | — | |
| 6- |  |
BH-7545-52 | N417-3 | Stiffener Angle |
| 11- |  |
BH-7528-85 | N417-1 | Sheave |
| 12- |  |
BH-7500-49B | 41388 | 1-1/2” O.D. x .760-.770” I.D. x .045” Thick Mach. Bushing |
| 13- |  |
BH-7500-62A | 41411 | Retaining Ring for 3/4" Shaft |
| 14- |  |
BH-7500-68 | FJ7444-8 | Sheave Shaft |
| 15- |  |
BH-7535-21 | FJ7600 | Locking Latch Cable EH-1 or EH-2 Models |
| 16- |  |
BH-7519-29 | N350 | Overhead Hose - EH-1 MODEL |
| 16- |  |
BH-7519-30 | N351 | Overhead Hose - EH-2 MODEL |
| 17- |  |
BH-7528-76 | N39 | Equalizer Cables - Standard Height |
| 17- |  |
BH-7528-65 | N312 | Equalizer Cables - EH-1 MODEL |
| 17- |  |
BH-7528-66 | N313 | Equalizer Cables - EH-2 MODEL |
| 20- |  |
BH-7503-29 | FJ7871 | 3/4” Spacer |
| 22- |  |
BH-7508-34 | FJ7613-2 | Switch Bar Assembly - 1Ø |
| 23- |  |
BH-7521-45 | 41200 | 1/8” x 1” Lg. Cotter Pin |
| 27- |  |
BH-7503-65 | N413 | Limit Switch Assembly - For units using less than or equal to 250V |
| 27- |  |
BH-7529-30 | N432 | Contactor & Box - All Voltages |
| 29- |  |
BH-7528-94 | N69 | Latch Cable Guide |
| 37- |  |
BH-7508-20 | FJ7985-1 | Actuator Pin Handle |
| 38- |  |
BH-7528-07 | N121-1 | Actuator Pin |
| 39- |  |
BH-7528-06 | N119-3 | Retaining Pin |
| 40- |  |
BH-7535-58 | FJ7656-2 | Arm Restraint Spring |
| 41- |  |
BH-7508-17 | FJ7749 | 120T Gear Block |
| 42- |  |
BH-7519-28 | 14427 | Spring Pin-1/4" dia. x 1-1/2" Lg. (Stainless) |
| 43- |  |
BH-7508-21 | FJ7888 | Arm Restraint Kit (1 arm)* *NOTE: Includes items 13, 14, 15, 16, 19, 35, 56, 58 & 59 |
| 44- |  |
BH-7502-33 | N119-1 | Sheave Cover |
| 46- |  |
BH-7529-18 | FJ7206 | Hose Clip (4 req’d-Overhead) |
| 46- |  |
BH-7534-77 | FJ7499 | Hose Clip (6 req’d-Column) |
| 53- |  |
BH-7535-69 | FJ7668 | Branch Tee |
| 55- |  |
BH-7519-27A | N348 | Power Unit Hose |
| 60- |  |
BH-7510-03 | FJ7360 | Slider block |
| 62- |  |
BH-7077-02-2S | SVI Exclusive | SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair) |
| 62- |  |
BH-7077-02-2 | SVI Exclusive | SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair) |
| 63- |  |
BH-7070-K | SVI Exclusive | Power Station (for 2-Post Lift) |
| 1- | Call For Details | — | 3/8”-16 NC x 3/4” Long Flanged HHCS | |
| 2- | Call For Details | — | Column Mounting Bracket | |
| 3- | Call For Details | — | 3/8” External Tooth Lockwasher | |
| 4- | Call For Details | — | 3/8”-16NC Flanged Locknut | |
| 5- | Call For Details | — | L.H. Overhead Weldment (Outer) | |
| 7- | Call For Details | — | 3/8"-16NC Flanged Locknut | |
| 8- | Call For Details | — | R.H. Overhead Weldment (Inner) | |
| 9- | Call For Details | — | #12 Type B x 1/2” Lg. Slotted Hex Washer Head Tapping Screw (4 req’d-Overhead) | |
| 15- | Call For Details | — | Locking Latch Cable Standard Height | |
| 15a- |
BH-7557-1124 (Call For Details) |
FJ-7595-1KIT | Locking Latch Cable and Clamp Kit Standard Height | |
| 16- | Call For Details | — | Overhead Hose - Standard Height | |
| 18- | Call For Details | — | 5/8”-11NC Hex Nylon Insert Locknut | |
| 19- | Call For Details | — | 1/4”-20NC Insert Locknut | |
| 21- | Call For Details | — | 1/4”-20NC x 2” HHCS | |
| 22- | Call For Details | — | Switch Bar Assembly - 3Ø | |
| 24- | Call For Details | — | 1/4”-20NC Zinc Hex Nut | |
| 25- | Call For Details | — | 1/4” External Tooth Lockwasher | |
| 26- | Call For Details | — | 1/4”-20NC x 2” HHCS Grade 5 | |
| 27- | Call For Details | — | Limit Switch Assembly - For units using above 250 V | |
| 28- | Call For Details | — | 1/4”-20NC x 1” HHCS Grade 5 | |
| 30- | Call For Details | — | 1/4”-20NC Flanged Locknut | |
| 31- | Call For Details | — | Column Extension - Standard Height | |
| 31- | Call For Details | — | Column Extension - EH-1 MODEL | |
| 31- | Call For Details | — | Column Extension - EH-2 MODEL | |
| 32- | Call For Details | — | Bleeder Screw (Specify Manufacturer) | |
| 33- | Call For Details | — | Hydraulic Cylinder | |
| 34- | Call For Details | — | L.H. Column Weldment | |
| 35- | Call For Details | — | Carriage Bumper | |
| 36- | Call For Details | — | Approach bumper (door-18” Lg-2 req’d) | |
| 45- | Call For Details | — | 1/4”-20NC x 3/8” Lg. PHMS Plated (2 pcs.) | |
| 47- | Call For Details | — | 5/16"-18NC x 3/8" PHMS (6 req'd-Column) | |
| 48- | Call For Details | — | Tie Bar | |
| 49- | Call For Details | — | R.H. Column Weldment | |
| 50- | Call For Details | — | 5/16”-18NC x 1-1/2” Bolt | |
| 51- | Call For Details | — | 5/16” External Tooth Lockwasher | |
| 52- | Call For Details | — | 5/16”-18NC Hex Nut | |
| 54- | Call For Details | — | Capacitor Box | |
| 54- | Call For Details | — | Capacitor Box Cover Plate | |
| 54- | Call For Details | — | Drum Switch | |
| 54- | Call For Details | — | Drum Switch Handle | |
| 54- | Call For Details | — | M5 x 10 PHMS, Plated | |
| 56- |
BH-7520-09 (Call For Details) |
P1391 | Power Unit - SINGLE PHASE | |
| 56- | Call For Details | — | Power Unit - THREE PHASE | |
| 56- | Call For Details | — | Power Unit - 575 Volt | |
| 57- | Call For Details | — | Carriage Yoke Weldment | |
| 58- | Call For Details | — | 3/16" x 2" Long Cotter Pin | |
| 59- |
BH-705-14 (Call For Details) |
FJ7838 | Arm Pin | |
| 61- | Call For Details | — | Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20 |
