Click on the part number for more information

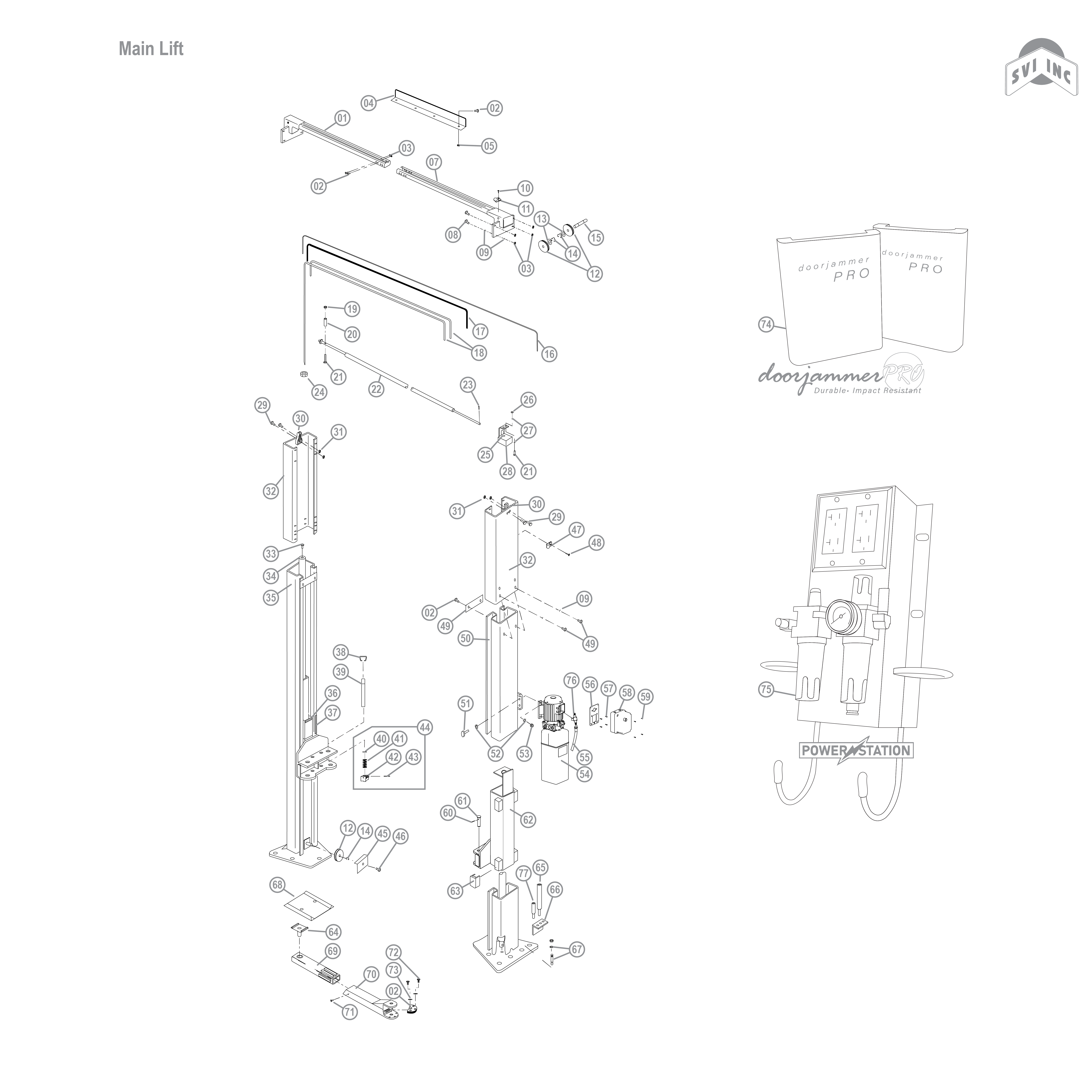

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
- BH-7545-14 BH-7545-14 — Hydraulic Cylinder Assembly, 68" Stroke
- BH-7508-16A BH-7508-16A —
- BH-7528-68 BH-7528-68 —
- BH-7004-36 BH-7004-36 — Microswitch
- BH-7529-07 BH-7529-07 —
2- BH-7508-16 BH-7508-16 FJ7750 Restraint Gear
4- BH-7545-52 BH-7545-52 N417-3 Stiffener Angle
12- BH-7528-85 BH-7528-85 N417-1 Sheave
13- BH-7500-49B BH-7500-49B 41388 1-1/2” O.D. x .760-.770” I.D. x .045” Thick Mach. Bushing
14- BH-7500-62A BH-7500-62A 41411 Retaining Ring for 3/4" Shaft
15- BH-7500-68 BH-7500-68 FJ7444-8 Sheave Shaft
16- BH-7535-21 BH-7535-21 FJ7600 Locking Latch Cable EH-1 or EH-2 Models
17- BH-7519-29 BH-7519-29 N350 Overhead Hose - EH-1 MODEL
17- BH-7519-30 BH-7519-30 N351 Overhead Hose - EH-2 MODEL
18- BH-7528-76 BH-7528-76 N39 Equalizer Cables - Standard Height
18- BH-7528-65 BH-7528-65 N312 Equalizer Cables - EH-1 MODEL
18- BH-7528-66 BH-7528-66 N313 Equalizer Cables - EH-2 MODEL
20- BH-7503-29 BH-7503-29 FJ7871 3/4” Spacer
22- BH-7508-34 BH-7508-34 FJ7613-2 Switch Bar Assembly
23- BH-7521-45 BH-7521-45 41200 1/8” x 1” Lg. Cotter Pin
25- BH-7503-65S BH-7503-65S N413-1 Limit Switch - For units using less than or equal to 250V
28- BH-7503-65 BH-7503-65 N413 Limit Switch Assembly - For units using less than or equal to 250V
30- BH-7528-94 BH-7528-94 N69 Latch Cable Guide
38- BH-7508-20 BH-7508-20 FJ7985-1 Actuator Pin Handle
39- BH-7528-07 BH-7528-07 N121-1 Actuator Pin
40- BH-7528-06 BH-7528-06 N119-3 Retaining Pin
41- BH-7535-58 BH-7535-58 FJ7656-2 Arm Restraint Spring
42- BH-7508-17 BH-7508-17 FJ7749 120T Gear Block
43- BH-7519-28 BH-7519-28 14427 Spring Pin-1/4" dia. x 1-1/2" Lg. (Stainless)
44- BH-7508-21 BH-7508-21 FJ7888 Arm Restraint Kit (1 arm)* *NOTE: Includes items 13, 14, 15, 16, 19, 35, 58, 60 & 61
45- BH-7502-33 BH-7502-33 N119-1 Sheave Cover
47- BH-7529-18 BH-7529-18 FJ7206 Hose Clip (4 req’d-Overhead)
47- BH-7534-77 BH-7534-77 FJ7499 Hose Clip (6 req’d-Column)
55- BH-7519-27A BH-7519-27A N348 Power Unit Hose
61- BH-7505-14 BH-7505-14 FJ7838 Arm Pin
63- BH-7510-03 BH-7510-03 FJ7360 Slider block
64- BH-7536-92 BH-7536-92 FJ6158 Adapter
65- BH-7533-97 BH-7533-97 FJ6144 8" Adapter Extension
66- BH-7500-95 BH-7500-95 FJ6145 Adapter Rack
71- BH-7545-95 BH-7545-95 N219 Stop Bolt
72- BH-7537-60 BH-7537-60 40200 3/8"-16NC x 1-1/2" HHCS Grade 5
74- BH-7077-02-2S BH-7077-02-2S SVI Exclusive SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair)
74- BH-7077-02-2 BH-7077-02-2 SVI Exclusive SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair)
75- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
76- BH-7535-69 BH-7535-69 FJ7668 Branch Tee
77- BH-7533-96 BH-7533-96 FJ6143 4" Adapter Extension
1- BH-7500-72
(Call For Details) 		FJ7447-1 L.H. Overhead Weldment (Outer)
3- Call For Details — 3/8”-16NC Flanged Locknut
5- Call For Details — 3/8"-16NC Flanged Locknut
6- Call For Details — 3/8”-16 NC x 3/4” Long HHCS
7- BH-7500-71
(Call For Details) 		FJ7446-1 R.H. Overhead Weldment (Inner)
8- Call For Details — 3/8”-16NC x 1” Flanged HHCS
9- Call For Details — 3/8” External Tooth Lockwasher
10- Call For Details — #12 Type B x 1/2” Lg. Slotted Hex Washer Head Tapping Screw (4 req’d-Overhead)
16- Call For Details — Locking Latch Cable Standard Height
17- Call For Details — Overhead Hose - Standard Height
19- Call For Details — 1/4”-20NC Insert Locknut
21- Call For Details — 1/4”-20NC x 2” HHCS
21- Call For Details — 1/4”-20NC x 2” HHCS Grade 5
24- Call For Details — 5/8”-11NC Hex Nylon Insert Locknut
25- BH-7537-21A
(Call For Details) 		FJ7979-1 Limit Switch - For units using above 250 V
26- Call For Details — 1/4”-20NC Zinc Hex Nut
27- Call For Details — 1/4” External Tooth Lockwasher
28- Call For Details — Limit Switch Assembly - For units using above 250 V
29- Call For Details — 1/4”-20NC x 1” HHCS Grade 5
31- Call For Details — 1/4”-20NC Flanged Locknut
32- Call For Details — Column Extension - Standard Height
32- Call For Details — Column Extension - EH-1 MODEL
32- Call For Details — Column Extension - EH-2 MODEL
33- Call For Details — Bleeder Screw (Specify Manufacturer)
34- Call For Details — Hydraulic Cylinder
35- Call For Details — L.H. Column Weldment
36- Call For Details — Carriage Bumper
37- Call For Details — Approach bumper (door-18” Lg-2 req’d)
41a- BH-7557-1124
(Call For Details) 		FJ-7595-1KIT Locking Latch Cable and Clamp Kit
46- Call For Details — 1/4”-20NC x 3/8” Lg. PHMS Plated (2 pcs.)
48- Call For Details — 5/16"-18NC x 3/8" PHMS (6 req'd-Column)
49- Call For Details — Tie Bar
50- Call For Details — R.H. Column Weldment
51- Call For Details — 5/16”-18NC x 1-1/2” Bolt
52- Call For Details — 5/16” External Tooth Lockwasher
53- Call For Details — 5/16”-18NC Hex Nut
54- BH-7520-09
(Call For Details) 		P1391 Power Unit - SINGLE PHASE
54- Call For Details — Power Unit - THREE PHASE
56- BH-7543-69
(Call For Details) 		FA7132-2 Control Box Adapter Plate
57- Call For Details — M5 x .7 x 8mm Flat Head MS
59- Call For Details — #8-32NC x 1/2" Self Tapping Pan Head MS
60- Call For Details — 3/16" x 2" Long Cotter Pin
62- Call For Details — Carriage Yoke Weldment
67- Call For Details — Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20
68- Call For Details — Spotting Wheel Dish Kit
69- BH-7528-31
(Call For Details) 		N25-2 Inner Arm
70- BH-7528-31A
(Call For Details) 		N25-1 Outer Arm
73- Call For Details — 3/8" Spring Washers
75- Call For Details — Control Panel*
