Click on the part number for more information

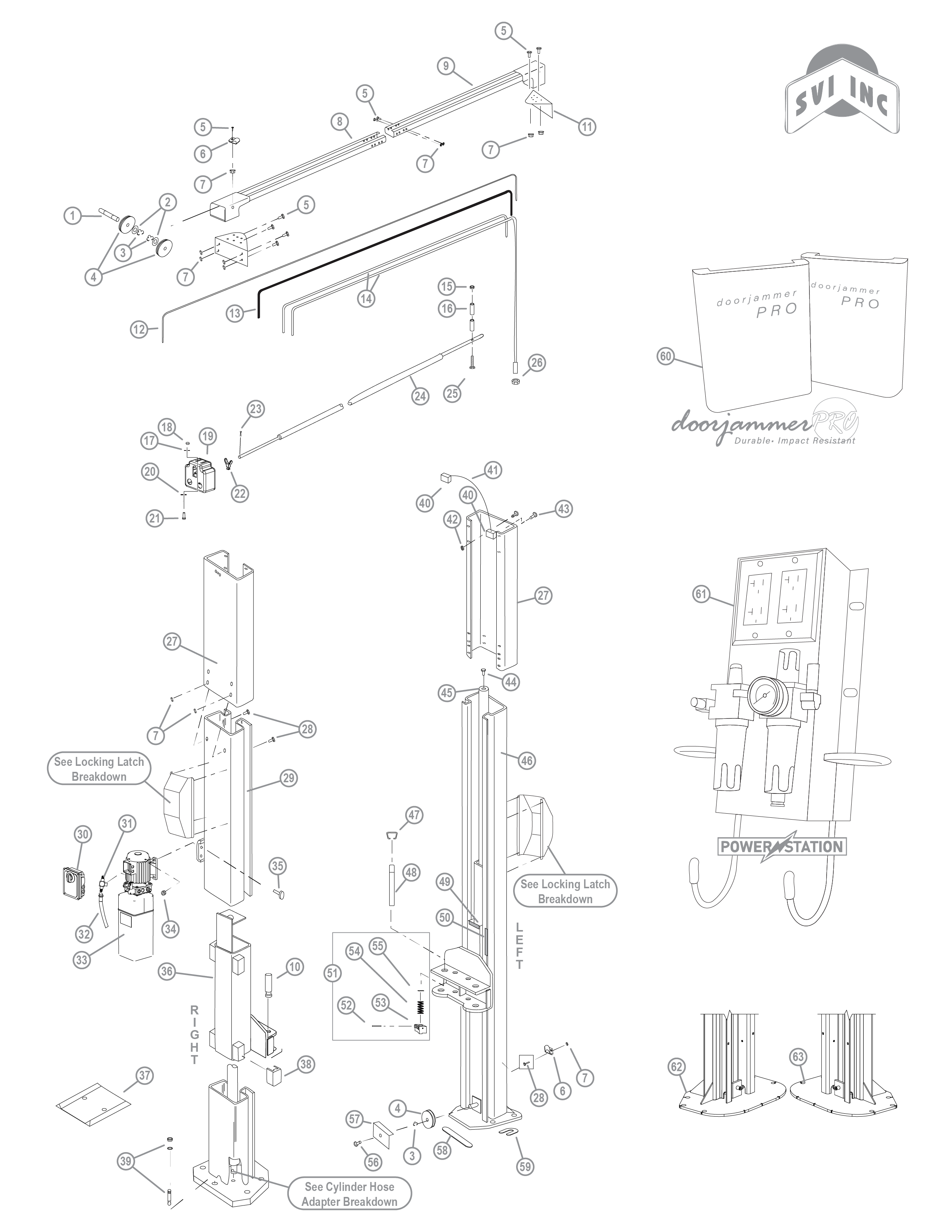

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
1- BH-7500-68 BH-7500-68 FJ7444-8 Sheave Shaft
2- BH-7500-49B BH-7500-49B 41388 Bushing (1-1/2" O.D. x .760-.770" I.D. x .045")
3- BH-7500-62A BH-7500-62A 41411 Retaining Ring for 3/4" Shaft
4- BH-7530-01N BH-7530-01N N377 Sheave
6- BH-7529-18 BH-7529-18 N383 Hose Clip
10- BH-7545-54 BH-7545-54 N2154 Arm Pin
11- BH-7545-07 BH-7545-07 N439 Column Mounting Bracket
12- BH-7535-21 BH-7535-21 FJ7600 Locking Latch Cable
13- BH-7545-73 BH-7545-73 N3103 Overhead Hose-Standard
14- BH-7529-86 BH-7529-86 N372 Equalizer Cables
16- BH-7503-29 BH-7503-29 FJ7871 Spacer (3/4")
23- BH-7521-45 BH-7521-45 41200 Cotter Pin (1/8” x 1” Lg. 3Ø)
24- BH-7545-08 BH-7545-08 N467 Switch Bar Assembly
29- BH-7545-04 BH-7545-04 N755 Standard Column (Right)
30- BH-7515-70 BH-7515-70 FA7366-1 Capacitor Box Cover Plate
31- BH-7535-69 BH-7535-69 FJ7668 Tee Branch
32- BH-7512-41 BH-7512-41 FJ837 Power Unit Hose
38- BH-7510-03 BH-7510-03 FJ7360 Slider Block
40- BH-7545-01 BH-7545-01 N619 Cable End Bracket
41- BH-7545-01A BH-7545-01A N618 Cable Guide
45- BH-7545-14 BH-7545-14 N3156 Hydraulic Cylinder Assembly, 68" Stroke
45- BH-7545-12NF BH-7545-12NF N382 Cylinder-Hydraulic (71" Rise)
47- BH-7508-20 BH-7508-20 FJ7985-1 Actuator Pin Handle
48- BH-7528-07 BH-7528-07 N121-1 Actuator Pin
51- BH-7508-42 BH-7508-42 N2148 Arm Restraint Kit *NOTE: Includes items 12, 13, 14, 15, 18 & 57. Also includes Restraint Gears and attaching hardware (items 20, 21 & 22) from Arm Detail section.
52- BH-7519-28 BH-7519-28 14427 Spring Pin-Stainless (1/4" dia. X 1-1/2" Lg.)
53- BH-7545-17 BH-7545-17 N2121 Arm Restraint Pawl
54- BH-7535-58 BH-7535-58 FJ7656-2 Arm Restraint Spring
55- BH-7528-06 BH-7528-06 N119-3 Retaining Pin
57- BH-7502-33 BH-7502-33 N119-1 Sheave Cover
59- BH-7512-90 BH-7512-90 FJ716-6 Shim
60- BH-7077-02-2S BH-7077-02-2S SVI Exclusive SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair)
60- BH-7077-02-2 BH-7077-02-2 SVI Exclusive SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair)
61- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
5- Call For Details — Hex Head Cap Screw-Long Flanged (3/8" -16 NC x 3/4")
7- Call For Details — Flanged Locknut (3/8" -16NC)
8- Call For Details — Overhead Assembly-Inner (Right)
9- Call For Details — Overhead Assembly-Outer (Left)
15- Call For Details — Insert Locknut (1/4" -20NC)
17- Call For Details — External Tooth Lockwasher (1/4")
18- Call For Details — Hex Nut-Zinc Coated (1/4" -20NC)
19- Call For Details — Cutoff Switch Assembly
20- Call For Details — Flat Washer (1/4")
21- Call For Details — Hex Head Cap Screw (1/4" -20NC x 3/4")
22- Call For Details — Actuator Assembly (3Ø)
25- Call For Details — Hex Head Cap Screw (1/4" -20NC x 2-3/4")
26- Call For Details — Nylon Insert Lock Nut (5/8" -11NC)
27- BH-7545-09
(Call For Details) 		N470 Standard Column Extension
28- Call For Details — Carriage Bolts (3/8" -16NC x 3/4")
30- Call For Details — Capacitor Box
30- Call For Details — Drum Switch
30- Call For Details — Drum Switch Lever
30- Call For Details — Pan Head Machine Screw (M5 x 45)
33- Call For Details — Power Unit
34- Call For Details — Hex Flanged Lock Nut (5/16" -18NC)
35- Call For Details — Hex Head Cap Screw-Flanged Full Thread (5/16" - 18NC x 1-1/2")
36- BH-7545-02
(Call For Details) 		N822 Carriage Yoke
37- Call For Details — Wheel Spotting Dish Kit
39- Call For Details — Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20
42- Call For Details — Flanged Locknut (1/4" -20NC)
43- Call For Details — Hex Head Cap Screw-Grade 5 (1/4" -20NC x 1")
44- Call For Details — Bleeder Screw
46- BH-7545-03
(Call For Details) 		N752 Column Standard (Left)
49- Call For Details — Carriage Bumper
50- Call For Details — Approach Bumper
56- Call For Details — 1/4" -20NC x 3/8" Lg. PHMS Plated
58- BH-7535-62
(Call For Details) 		FJ7659-3 Front Shim
62- Call For Details — R.H. Column Standard Weldment
63- Call For Details — Column Seismic (Left)
