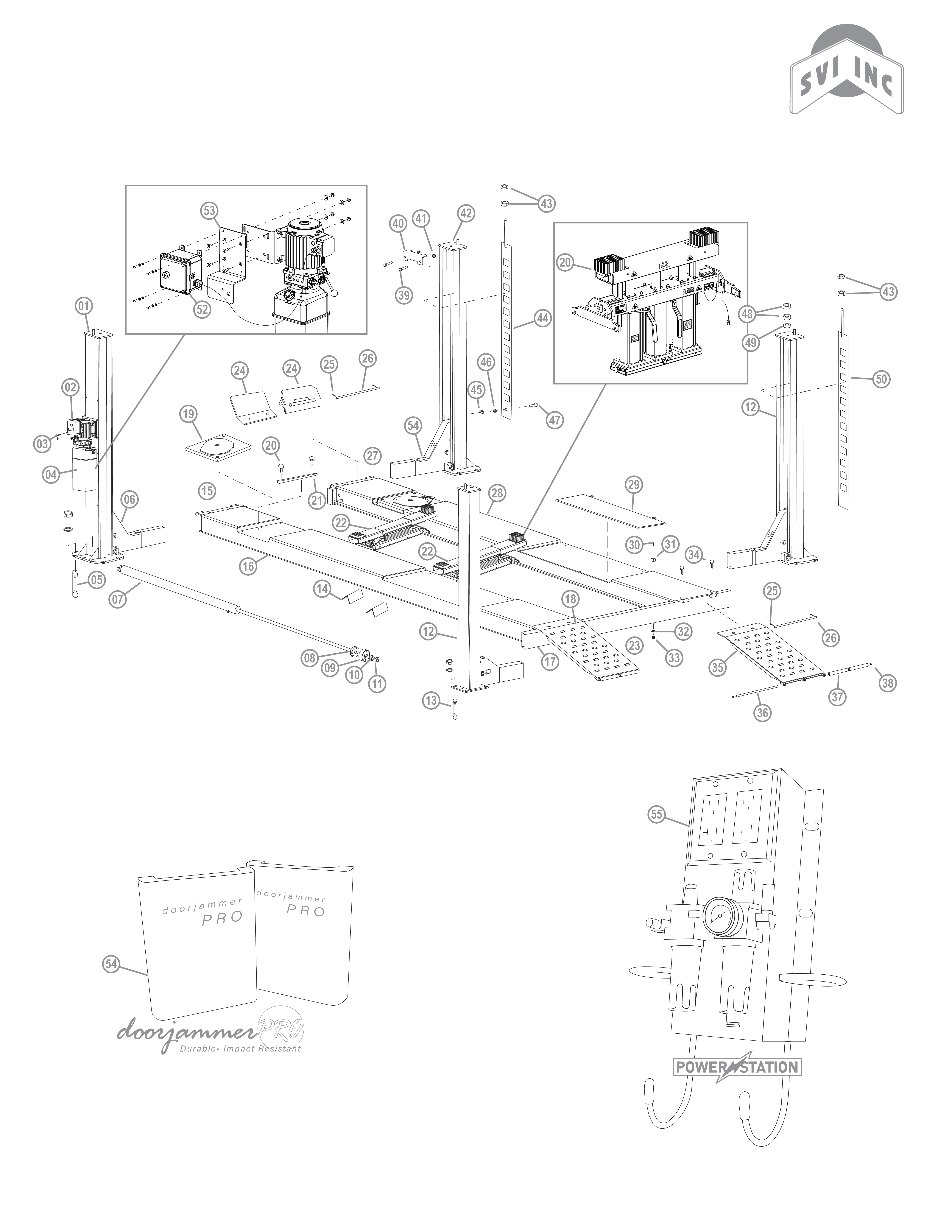

Main Lift
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 2- |  |
BH-7515-70 | FA7366-1 | Capacitor Box Cover Plate |
| 9a- |  |
BH-7524-66 | — | Wheel Stop (Blue) |
| 14- |  |
BH-7273-010 | H4P-R3100 | Triangular Wheel Chock |
| 32- |  |
BH-7502LP-037 | B41-6 | Flat Washer (Ø6mm) |
| 36- |  |
BH-7239-308 | FC5991Y | Roller Pin |
| 37- |  |
BH-7239-309 | FC5992Y | Ramp Roller |
| 38- |  |
BH-7239-307 | B60-16 | Snap Ring |
| 46- | |
BH-7502LP-037 | B41-6 | Flat Washer Plated (Ø6mm) |
| 54- |  |
BH-7077-02-2S | SVI Exclusive | SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair) |
| 54- |  |
BH-7077-02-2 | SVI Exclusive | SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair) |
| 55- |  |
BH-7069-K | SVI Exclusive | Power Station (for 4-Post Lift) |
| 1- | Call For Details | — | Power Unit Column | |
| 2- |
BH-7527-02 (Call For Details) |
FA7366 | Control Box | |
| 2- | Call For Details | — | Capacitor Box | |
| 2- | Call For Details | — | Drum Switch | |
| 2- | Call For Details | — | Drum Switch Lever | |
| 3- | Call For Details | — | Pan Head Machine Screw-Plated (M5 x 45) | |
| 4- | Call For Details | — | Power Unit Different options. Call for Details | |
| 5- | Call For Details | — | Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20 | |
| 6- | Call For Details | — | Yoke Weldment (Left Front) | |
| 7- | Call For Details | — | Hydraulic Cylinder Different options. Call for Details | |
| 8- | Call For Details | — | Cable Pull Bar | |
| 9- | Call For Details | — | Cable Retainer | |
| 10- | Call For Details | — | Hex Nut (1 3/8"-6NC) | |
| 11- | Call For Details | — | Hex Jam Nut (1 3/8"-6NC) | |
| 12- |
BH-7545-59 (Call For Details) |
S110445Y | Column (Rear) | |
| 13- | Call For Details | — | Anchor - Zinc Plated Steel Wedge 5/8" x 4-1/2" - Box of 25 | |
| 15- | Call For Details | — | Left Front Yoke Assembly (Including Latches) | |
| 16- | Call For Details | — | Runway Assembly (Left) Different options. Call for Details | |
| 17- | Call For Details | — | Yoke Weldment (Rear) | |
| 18- | Call For Details | — | Ramp Chock Assembly (Standard) | |
| 18- | Call For Details | — | Ramp Chock Assembly (Extended) | |
| 19- | Call For Details | — | Turning Radius Gauge Assembly (Stainless Steel) | |
| 20- | Call For Details | — | Whiz-Lock (M10-20) | |
| 21- | Call For Details | — | Turntable Guide Bar | |
| 22- | Call For Details | — | Rolling Jack | |
| 22- | Call For Details | — | Swing Air Jack | |
| 23- | Call For Details | — | Rear Yoke Ass'y (Including Latches) | |
| 24- |
BH-7524-66Y (Call For Details) |
FC342Y | Wheel Stop (Yellow) | |
| 25- | Call For Details | — | Cotter Pin (M5-40) | |
| 26- | Call For Details | — | Hinge Pin | |
| 27- | Call For Details | — | Yoke Assembly (Right Front Including Latches ) | |
| 28- | Call For Details | — | Runway Assembly (Right) Different options. Call for Details | |
| 29- | Call For Details | — | Slip Plate Kit (Rear) *NOTE: For Slip Plate Parts, See Slip Plate Parts Breakdown | |
| 30- | Call For Details | — | Hex Head Cap Screw (M6 x 35) | |
| 31- | Call For Details | — | Rubber Stop | |
| 33- |
BH-7248-1049 (Call For Details) |
B30-6 | Nut (M6) | |
| 34- | Call For Details | — | Hex Head Cap Screw-Whiz Lock (M12-30 Flange High Strength) | |
| 35- | Call For Details | — | Ramp Chock Weld (Standard) | |
| 35- | Call For Details | — | Ramp Chock Weld (Extended) | |
| 39- | Call For Details | — | Hex Head Cap Screw - Grade 8 (M12-75) | |
| 40- | Call For Details | — | O.F. Column Tie Bar | |
| 41- | Call For Details | — | Lock Nut-Whiz (M12) | |
| 42- | Call For Details | — | Column (Front) | |
| 43- | Call For Details | — | Hex Nut (M20) | |
| 44- | Call For Details | — | Latch Bar (Front) | |
| 45- | Call For Details | — | Nylon LockNut (M6) | |
| 47- | Call For Details | — | Hex Head Cap Screw (M6-40) | |
| 48- | Call For Details | — | Hex Nut (M20) | |
| 49- |
BH-7248-1035 (Call For Details) |
B41-20 | Flat Washer (Ø20mm) | |
| 50- | Call For Details | — | Latch Bar (Rear) | |
| 52- | Call For Details | — | Control Box w/ Push Button (3Ø) | |
| 52- | Call For Details | — | Contactor (25 Amp) | |
| 52- | Call For Details | — | Contactor Coil (208-240V) | |
| 52- | Call For Details | — | Contactor Coil (575V) | |
| 53- | Call For Details | — | Control Box Mounting Bracket (3Ø) | |
| 54- | Call For Details | — | Yoke Weldment (Right Front) |

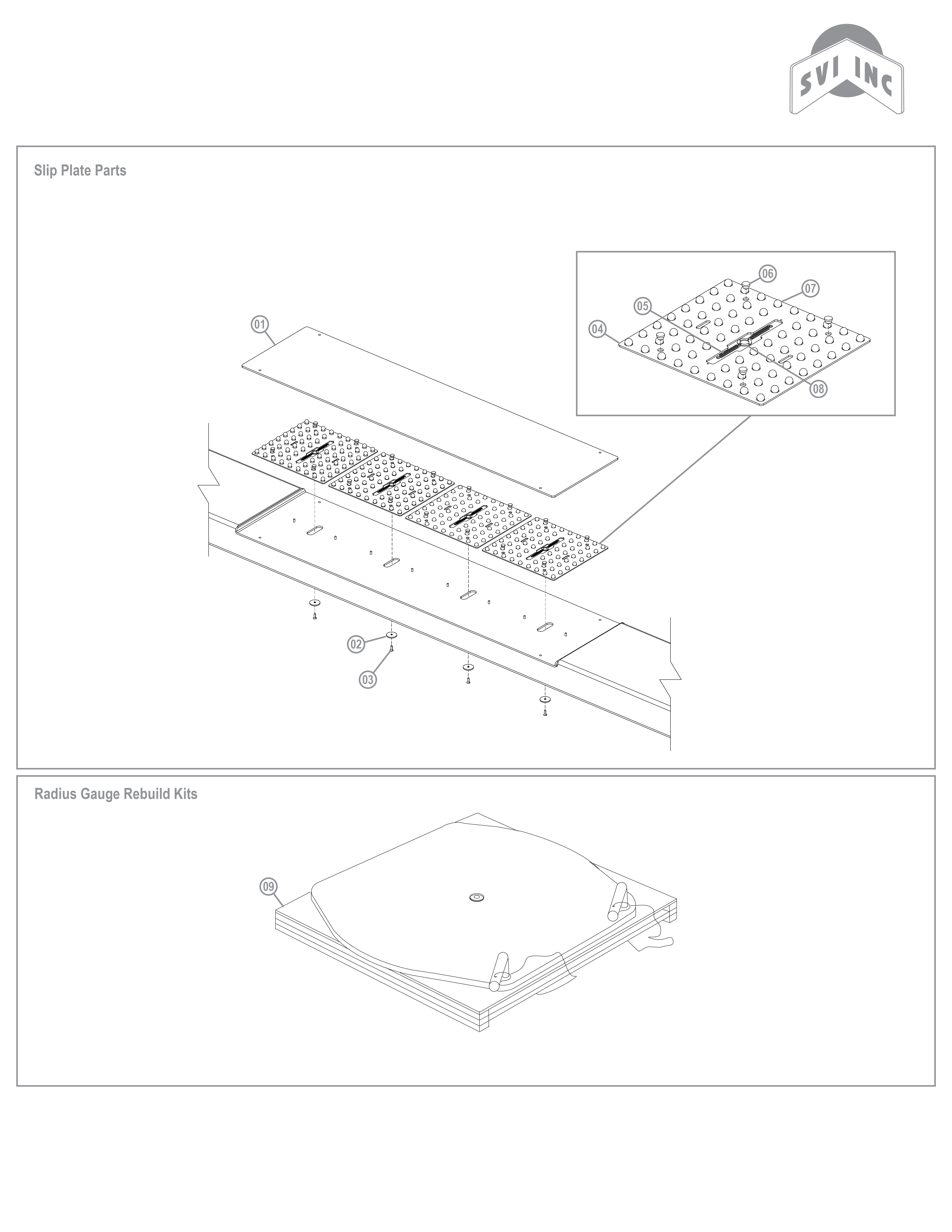

4 WS Slip Plate Parts
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 5- |  |
BH-7273-037 | NH4D-1011 | Spring |
| 1- | Call For Details | — | Rear Slip Plate Weld | |
| 2- | Call For Details | — | Rear Slip Plate Retainer Plate | |
| 3- |
BH-7557-1100 (Call For Details) |
B26-8x16 | Flat Head Screw (M8 x 16) | |
| 4- | Call For Details | — | Ball Retainer | |
| 6- |
BH-7557-1123 (Call For Details) |
FC625Y | Nylon Pin | |
| 7- |
BA-1590-07 (Call For Details) |
FC5190-7 | Slip Plate Ball | |
| 8- | Call For Details | — | Spring Tension Ring |

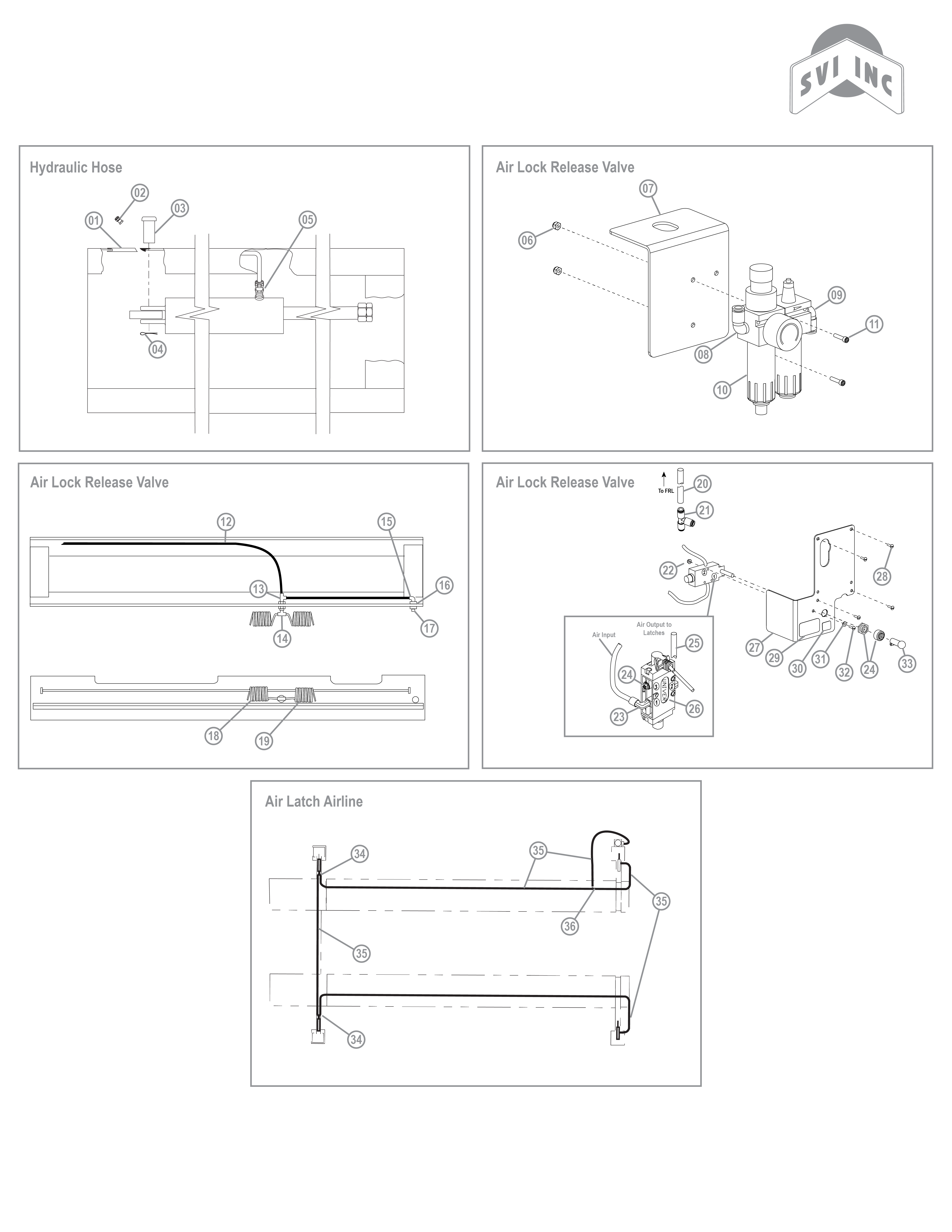

Air Latch Airline Detail
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 34- |  |
BH-7507-09A | FA2230-92 | Y Connector (3-1/4") |
| 36- |  |
BH-7526-88 | FC5225-46 | Union Tee |
| 35- | Call For Details | — | 1/4" Airline Tubing (60' roll) |
Air Lock Release Valve Detail
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 12- |  |
BH-7507-02 | FA2230-15 | Tubing (3/8" 40ft roll) |
| 21- |  |
BH-7507-04 | FA2242-1 | Union Tee |
| 23- |  |
BH-7544-14 | T140074 | Swivel Elbow |
| 33- |  |
BH-9786-29 | T140119 | Air Lock Handle |
| 6- | Call For Details | — | Nylon Locknut (M4) | |
| 24- | Call For Details | — | Filter/Muffler | |
| 25- | Call For Details | — | Tubing (1/4") | |
| 26- | Call For Details | — | Control Assembly | |
| 27- | Call For Details | — | Control Basket (1Ø) | |
| 27- | Call For Details | — | Control Basket (3Ø) | |
| 28- | Call For Details | — | Pan Head Machine Screw (1Ø M5 x 15) | |
| 28- | Call For Details | — | Pan Head Machine Screw (3Ø M5 x 50) | |
| 29- | Call For Details | — | Nameplate | |
| 30- | Call For Details | — | Nameplate | |
| 31- | Call For Details | — | Flat Washer (Ø4mm) | |
| 32- | Call For Details | — | Pan Head Machine Screw (M4-30) |
FRL Detail
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 8- |  |
BH-7524-29 | FC147-7 | Elbow |
| 9- |  |
BH-7502LP-058 | FC5185-96 | Elbow |
| 10- |  |
BH-7545-97 | S130080 | Filter/Regulator/Lubricator |
| 6- | Call For Details | — | Nylon Lock Nut (M4) | |
| 7- | Call For Details | — | Adapter Bracket | |
| 11- | Call For Details | — | Hex Socket Head Cap Screw (M4-12) |

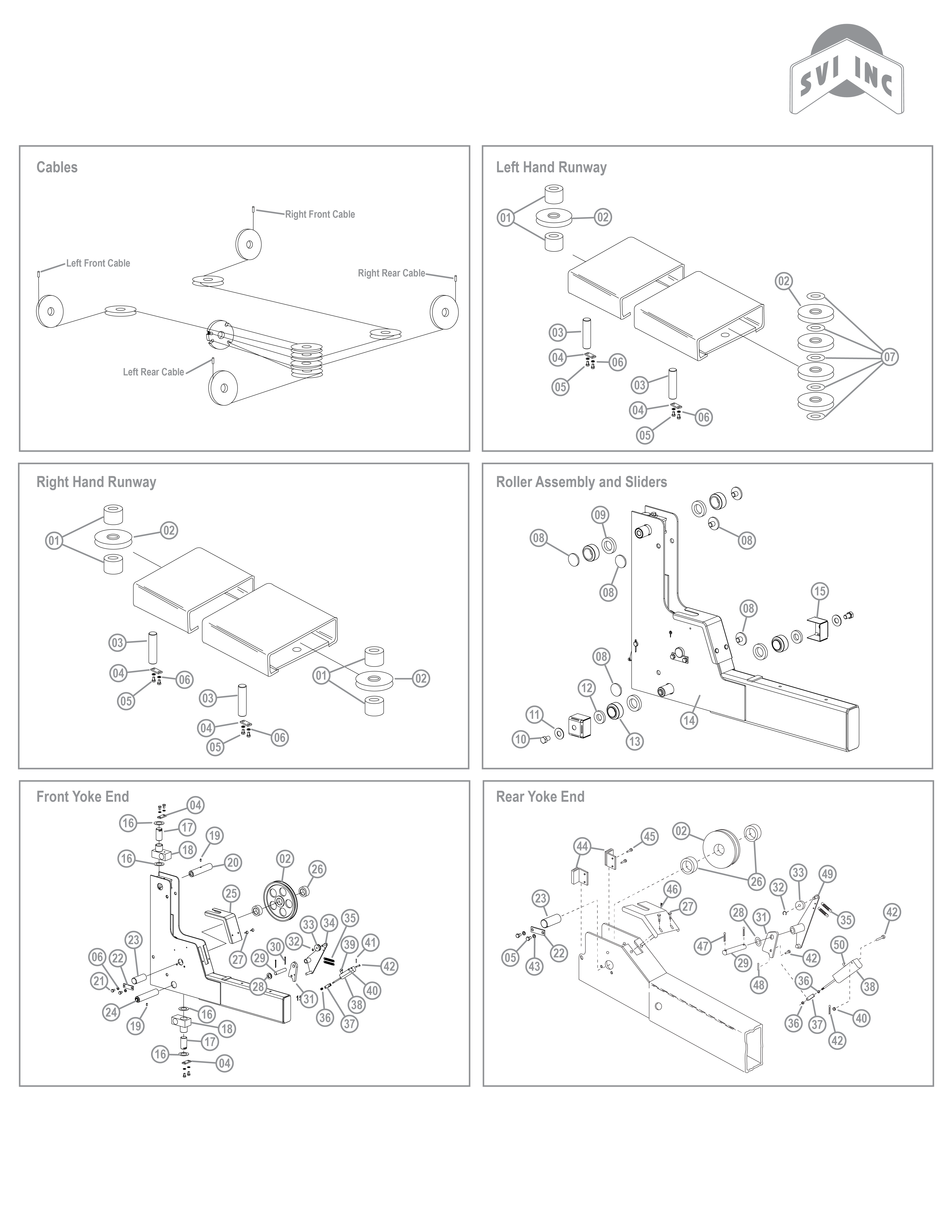

Front Yoke End Detail
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 2- |  |
BH-7546-127 | FC5977Y | Sheave |
| 4- |  |
BH-7239-815 | H4P-1020 | Block Pin Retainer |
| 16- |  |
BH-7536-10 | S130311Y | Plastic Spacer (on Block) |
| 22- |  |
BH-7239-806 | H4P-3006 | Sheave Pin Retainer |
| 23- |  |
BH-7532-19 | FC5981-1Y | Sheave Pin |
| 24- |  |
BH-7536-11 | S121236Y | Roller Pin (Lower) |
| 25- |  |
BH-7546-134 | S130349Y | OF Yoke Cover |
| 27- |  |
BH-7549-262 | 460440 | Nylon Tree Rivet |
| 31- |  |
BH-7557-1043 | FC5986Y | Locking Latch |
| 38- |  |
BH-7544-77 | S130061 | Air Cylinder |
| 40- | |
BH-7502LP-037 | B41-6 | Flat Washer (Ø6mm) |
| 6- |
BH-7248-1056 (Call For Details) |
B40-10 | Lock Washer (Ø10mm) | |
| 17- | Call For Details | — | Block Pin | |
| 18- | Call For Details | — | Articulating Block Assembly | |
| 19- | Call For Details | — | Set Screw (M8) | |
| 20- | Call For Details | — | Roller Pin (Upper) | |
| 21- | Call For Details | — | Hex Head Cap Screw (M16) | |
| 26- | Call For Details | — | Plastic Spacer (on Sheave) | |
| 28- |
BH-7248-1035 (Call For Details) |
B41-20 | Flat Washer (Ø20mm) | |
| 29- | Call For Details | — | Latch Shaft | |
| 30- | Call For Details | — | Cotter Pin (on Latch Shaft) | |
| 32- | Call For Details | — | Snap Ring | |
| 33- | Call For Details | — | Slack Cable Roller | |
| 34- | Call For Details | — | Kicker | |
| 35- | Call For Details | — | Spring | |
| 36- | Call For Details | — | Nut (1/4") | |
| 37- | Call For Details | — | Clevis | |
| 39- | Call For Details | — | Elbow Fitting | |
| 41- | Call For Details | — | Cotter Pin (on Air Cylinder/Clevis) | |
| 42- | Call For Details | — | Clevis Pin |
Hydraulic Hose Detail
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 5- |  |
BH-7511-05 | FJ7352-3 | Adapter |
| 1- | Call For Details | — | Grommet | |
| 2- |
BH-7557-1111 (Call For Details) |
CR14-9801-4 | Hose (S Model) | |
| 2- |
BH-7557-1112 (Call For Details) |
CR14-9801-3 | Hose (L Model) | |
| 2- |
BH-7557-1113 (Call For Details) |
CR14-9801-2 | Hose (EL Model) | |
| 3- | Call For Details | — | Clevis Pin | |
| 4- | Call For Details | — | Cotter Pin (Ø5mm x 60mm Length) |
Internal Airline Parts
Click on the part number for more information
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
|---|---|---|---|---|
| ITEM | IMAGE | PART NO | OEM Number(s) | DESCRIPTION |
| 8- | |
BH-7524-29 | FC147-7 | Elbow (Male) |
| 12- | |
BH-7507-02 | FA2230-15 | Tubing |
| 13- |  |
BH-7524-30 | FC147-3 | Run Tee (Male) |
| 16- |  |
BH-7518-97 | FC147-1 | Bulkhead (Female) |
| 19- |  |
BH-7508-83 | FC147-14 | Front Recoil Hose |
| 19- | |
BH-7508-83 | FC147-14 | Recoil Hose (Rear) |
| 14- | Call For Details | — | Branch Tee (Male) | |
| 17- | Call For Details | — | Hex Plug (1/4") |
