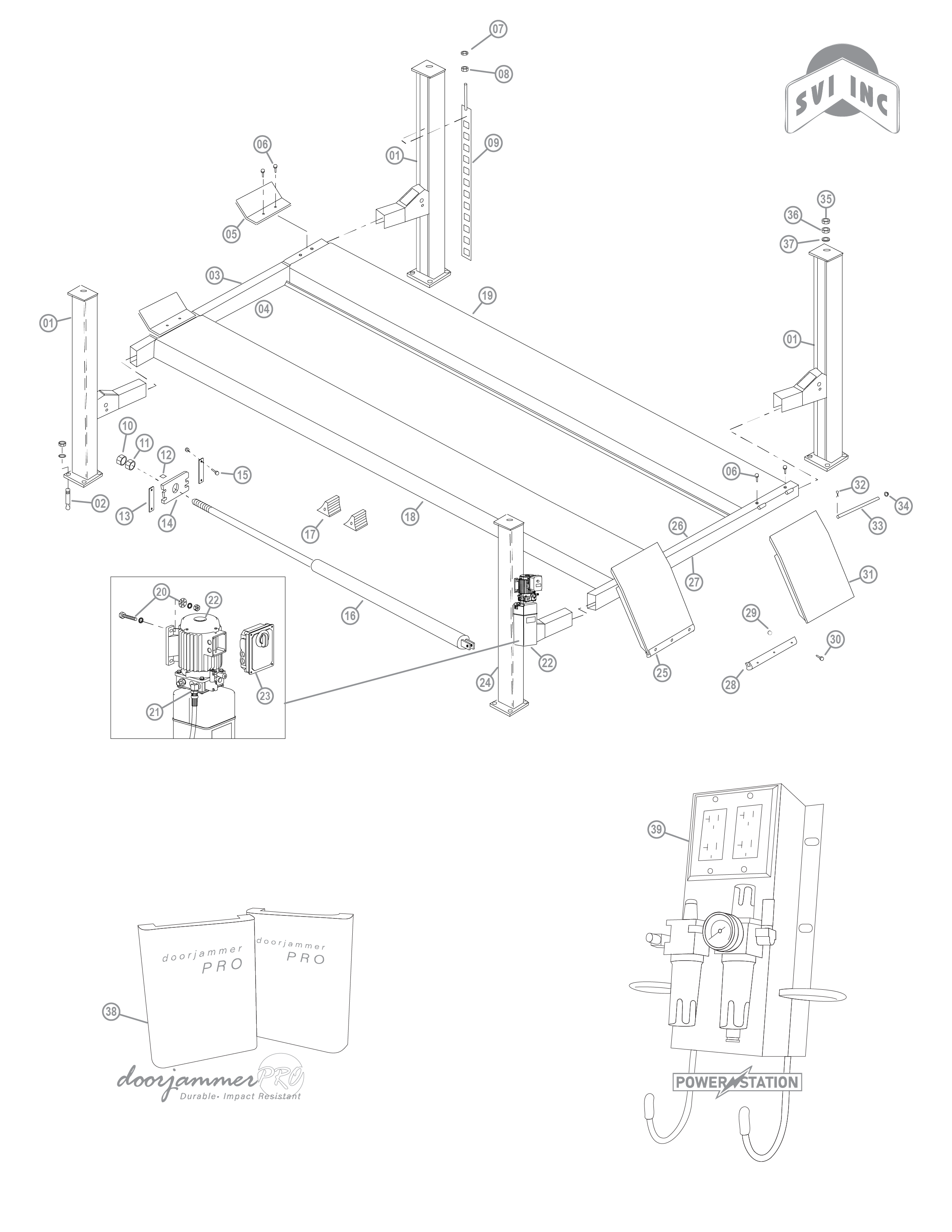

Main Lift

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
5-		BH-7515-74	FC5810-19	Wheel Stop
7-		BH-7520-54	40759	Hex Jam Nut (3/4"-10NC)
8-		BH-7520-53	40760	Hex Nut (3/4"-10NC)
9-		BH-7531-74	FC5814-11	Latch Bar
12-		BH-7525-49	FC5160-12	Glide
14-		BH-7531-64	FC5810-30	Cable Pull Bar
16-		BH-7531-65	FC5810-38	Hydraulic Cylinder
17-		BH-7524-62	FC337	Wheel Chock
20-		BH-7526-41	FC5209	Pushnut (5/16")
23-		BH-7515-70	FA7366-1	Capacitor Box Cover Plate
25-		BH-7531-67	FC5810-43	Ramp Chock Assembly (Standard Length)
28-		BH-7508-78	FC134-33	Ramp Chock Slide
31-		BH-7531-79	FC5810-45	Ramp Chock
33-		BH-7517-78	FC134-99	Hinge Pin
34-		BH-7525-70	FC5179-4	Pushnut Fastener (5/8")
38-		BH-7077-02-2S	SVI Exclusive	SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair)
38-		BH-7077-02-2	SVI Exclusive	SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair)
39-		BH-7069-K	SVI Exclusive	Power Station (for 4-Post Lift)
1-		BH-7515-75 (Call For Details)	FC5814-6	Standard Column
3-		Call For Details	—	Front Yoke Weld
4-		Call For Details	—	Front Yoke Assembly (Including Latches)
6-		Call For Details	—	Hex Head Cap Screw-High Strength Whiz Lock (1/2" - 13NC x 1-1/2" Flg.)
10-		Call For Details	—	Hex Jam Nut (1-1/2"-6NC)
11-		Call For Details	—	Hex Nut (1-1/2"-6NC)
13-		Call For Details	—	Retainer Bar
15-		Call For Details	—	Hex Head Cap Screw (1/4"-20NC X 2-1/4")
15-		Call For Details	—	NUT (1/4"-20NC)
18-		Call For Details	—	Left Fixed Runway Assembly-Fixed (000 & 006 Series) NOTE: Includes cylinder, cables and sheaves
18-		Call For Details	—	Left Hand Runway Assembly-Fixed (001 & 007 Series)
18-		Call For Details	—	Left Hand Runway Assembly-Fixed (010 & 016 Series)
18-		Call For Details	—	Left Hand Runway Assembly-Fixed (011 & 017 Series)
19-		Call For Details	—	Right Runway (000 & 006 Series)
19-		Call For Details	—	Right Runway (001 & 007 Series)
19-		Call For Details	—	Right Runway (010 & 016 Series)
19-		Call For Details	—	Right Runway (011 & 017 Series)
20-		Call For Details	—	Hex Head Cap Screw-Full Thread (5/16"-18NC x 1-1/2")
20-		Call For Details	—	Flanged Locknut (5/16"-18NC)
21-		Call For Details	—	Elbow
22-		Call For Details	—	Power Unit (1 Phase) *NOTE: Two different power units were used. Please verify your exact model number.
22-		Call For Details	—	Power Unit (3 Phase) *NOTE: Two different power units were used. Please verify your exact model number.
23-		BH-7527-02 (Call For Details)	FA7366	Control Box
23-		Call For Details	—	Capacitor Box
23-		Call For Details	—	Drum Switch
23-		Call For Details	—	Drum Switch Lever
23-		Call For Details	—	Pan Head Machine Screw-Planted (M5 x 45)
24-		BH-7531-81 (Call For Details)	FC5815	Power Unit Column
25-		Call For Details	—	Ramp Chock Assembly (Extended Length)
26-		Call For Details	—	Rear Yoke Assembly (Including Latches)
27-		Call For Details	—	Rear Yoke Weld
29-		Call For Details	—	Hex Nut (#10-24)
30-		Call For Details	—	Pan Head Machine-Large (#10-24 x 3/4")
32-		Call For Details	—	Cotter Pin (5/32" x 1" Lg.)
35-		Call For Details	—	Hex Jam Nut (1"-8NC)
36-		Call For Details	—	Hex Nut (1"-8NC)
37-		Call For Details	—	Anchor - Zinc Plated Steel Wedge 5/8" x 4-1/2" - Box of 25
37-		Call For Details	—	Flat Washer (1")

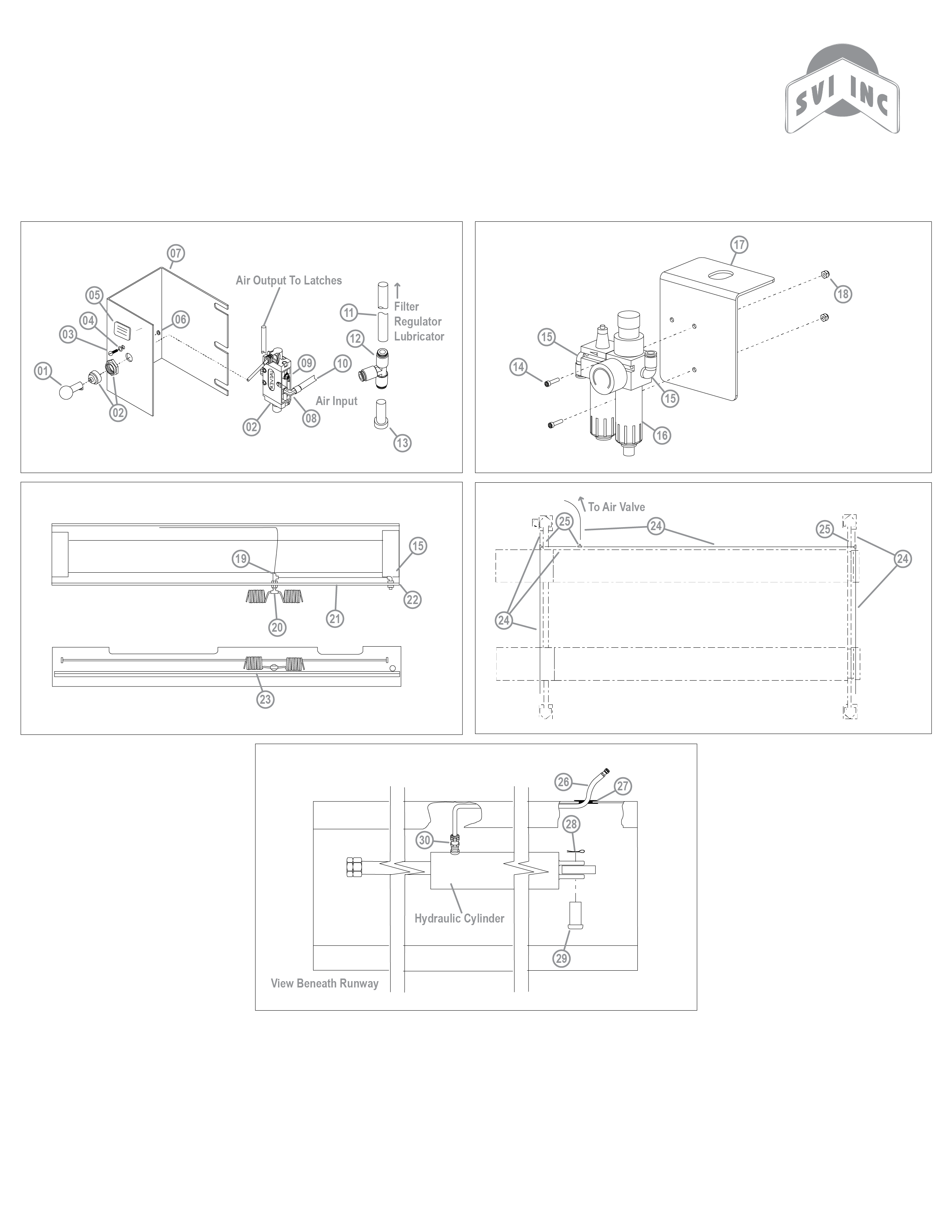

Air Lock Release Valve Detail

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
1-		BH-9786-29	T140119	Air Lock Handle
8-		BH-7544-14	T140074	Swivel Elbow
9-		BH-9784-41	T140075	Filter / Muffler
11-		BH-7507-02	FA2230-15	Tubing (40ft 3/8")
12-		BH-7507-04	FA2242-1	Union Tee
13-		BH-7507-07	FA2230-16	Plug (3/8")
2-		Call For Details	—	Control Assembly
3-		Call For Details	—	Pan Head Machine Screw (#8-32NC x 1-1/2")
4-		Call For Details	—	Flat Washer (#8 SAE)
5-		Call For Details	—	Nameplate
6-		Call For Details	—	Nylon Locknut (#8-32NC)
7-		Call For Details	—	Control Bracket
10-		Call For Details	—	Tubing (1/4")

Airline Detail

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
25-		BH-7526-88	FC5225-46	Union Tee
24-		Call For Details	—	Airline Tubing (50' roll)

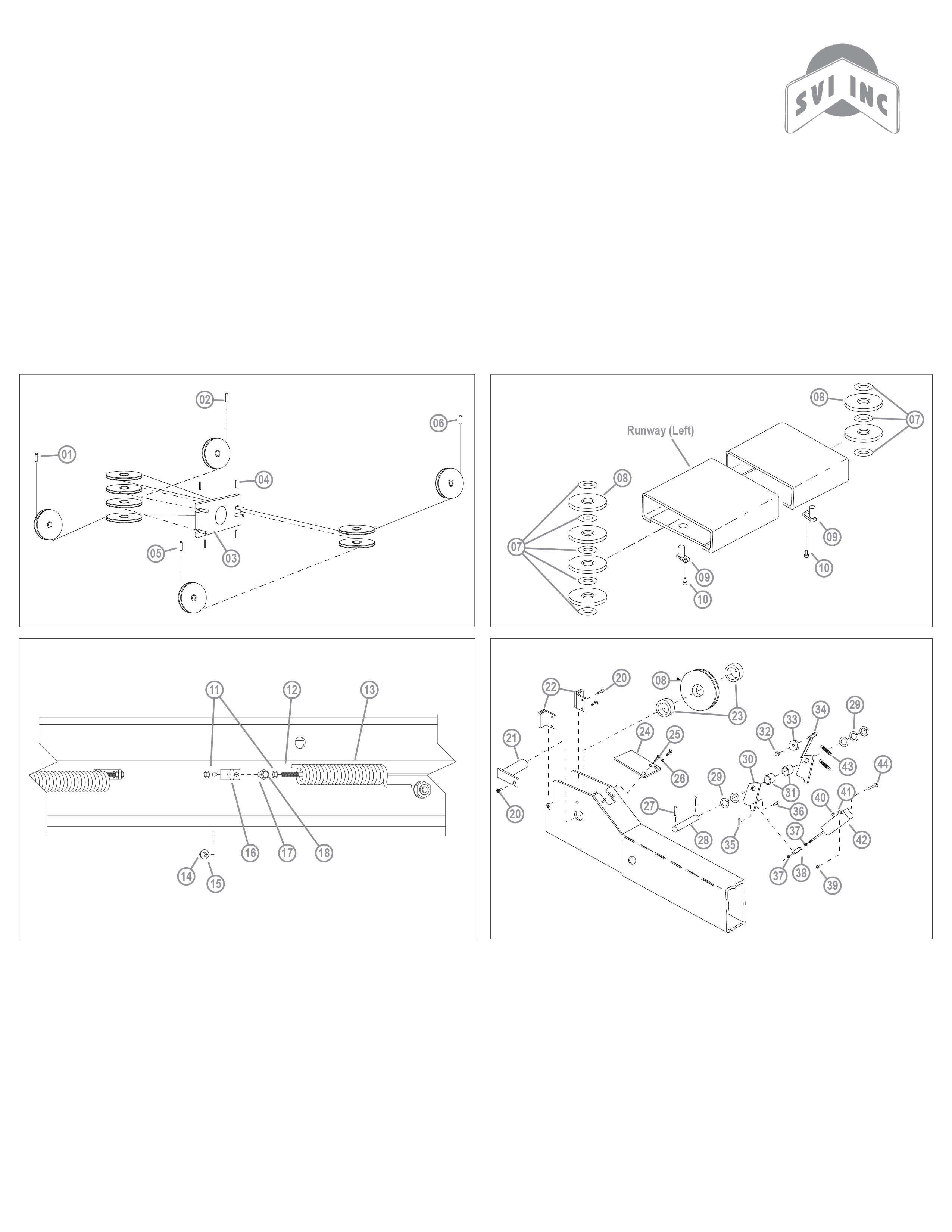

Cables

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
1-		BH-7531-54	FC5810-11	Cable(Front Left)
2-		BH-7531-52	FC5810-12	Cable(Front Right)
3-		BH-7531-64	FC5810-30	Cable Pull Bar
5-		BH-7531-61	FC5810-13	Cable 000/006/010/016 Series(Rear Left)
5-		BH-7531-83	FC5816-13	Cable 001/007/011/017 Series(Rear Left)
6-		BH-7531-63	FC5810-14	Cable 000/006/010/016 Series(Rear Right)
6-		BH-7531-82	FC5816-14	Cable 001/007/011/017 Series(Rear Right)
4-		Call For Details	—	Roll Pin (3/8" x 3-1/4")

FRL Detail

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
15-		BH-7524-29	FC147-7	Elbow
16-		BH-7545-97	S130080	Filter/Regulator/Lubricator
14-		Call For Details	—	Hex Socket Head Cap Screw (#10-24 x 3/4")
17-		Call For Details	—	Adapter Bracket
18-		Call For Details	—	Nylon Lock Nut (#10-24)

Hydraulic Hose Detail

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
26-		BH-7516-31	FC5225-16	Hydraulic Hose (000/006/010/016 Series)
26-		BH-7529-16	FC5426-4	Hydraulic Hose (001/007/011/017 Series)
27-		BH-7520-61	S130063	Runway Grommet
30-		BH-7507-47	FJ7224	Elbow
28-		Call For Details	—	Cotter Pin (3/16" x 3" lg.)
29-		Call For Details	—	Cylinder Pin

Internal Airline Parts

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
15-		BH-7524-29	FC147-7	Male Elbow
19-		BH-7513-07	FC5313-2	Tubing
20-		BH-7524-30	FC147-3	Run Tee (Male)
21-		BH-7524-34	FC147-6	Runway Tubing
22-		BH-7518-97	FC147-1	Female Bulkhead
23-		BH-7508-83	FC147-14	Recoil Hose
20-		Call For Details	—	Branch Tee (Male)
