Click on the part number for more information

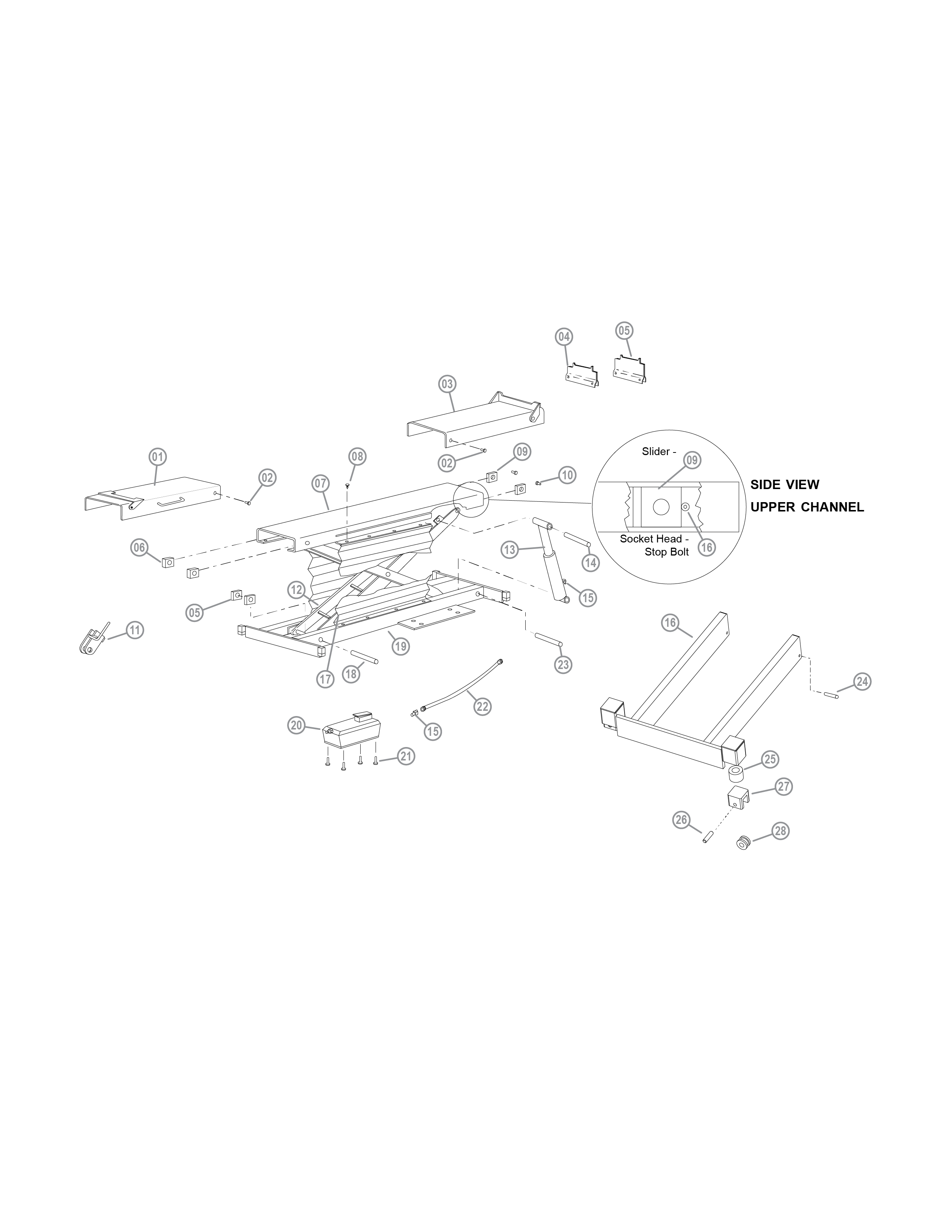

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
1- BH-7531-85 BH-7531-85 FC5818-24 Left Sliding Adapter
2- BH-7531-21 BH-7531-21 FC576 Stop Bolt
3- BH-7531-87 BH-7531-87 FC5818-37 Right Sliding Adapter
4- BH-7514-54 BH-7514-54 FC5108 Auxiliary Adapter
5- BH-7514-35 BH-7514-35 FC579 Auxiliary Adapter
6- BH-7525-85 BH-7525-85 FC5185-67 Slider
8- BH-7525-87 BH-7525-87 FC5185-69 Guard Retainer
9- BH-7525-86 BH-7525-86 FC5185-68 Slider
13- BH-7531-84 BH-7531-84 FC5818-18 Cylinder
15- BH-7516-24E BH-7516-24E FC5185-45 Elbow Adapter
17- BH-7525-27 BH-7525-27 FC5144-1 Guard
18- BH-7531-89S BH-7531-89S FC5818-29 Pin
20- BH-7514-51 BH-7514-51 FC5954 Pump
7- Call For Details — Upper Channel Assembly
10- Call For Details — Socket Hd. & LW (3/8"-16NC x 3/8" lg.)
11- Call For Details — Lock Dog
12- Call For Details — Link Weld Assembly
14- Call For Details — Upper Cylinder Pin
16- Call For Details — Telescopic End Section
19- Call For Details — Lower Channel Assembly
21- Call For Details — Self Tapping Screw (1/4"-20NC)
22- Call For Details — Hose
23- Call For Details — Lower Cylinder Pin
24- Call For Details — Spirol Pin (1/4" x 1" Lg.)
25- Call For Details — Spring
26- Call For Details — Axle
27- Call For Details — Axle Support
28- Call For Details — Roller
