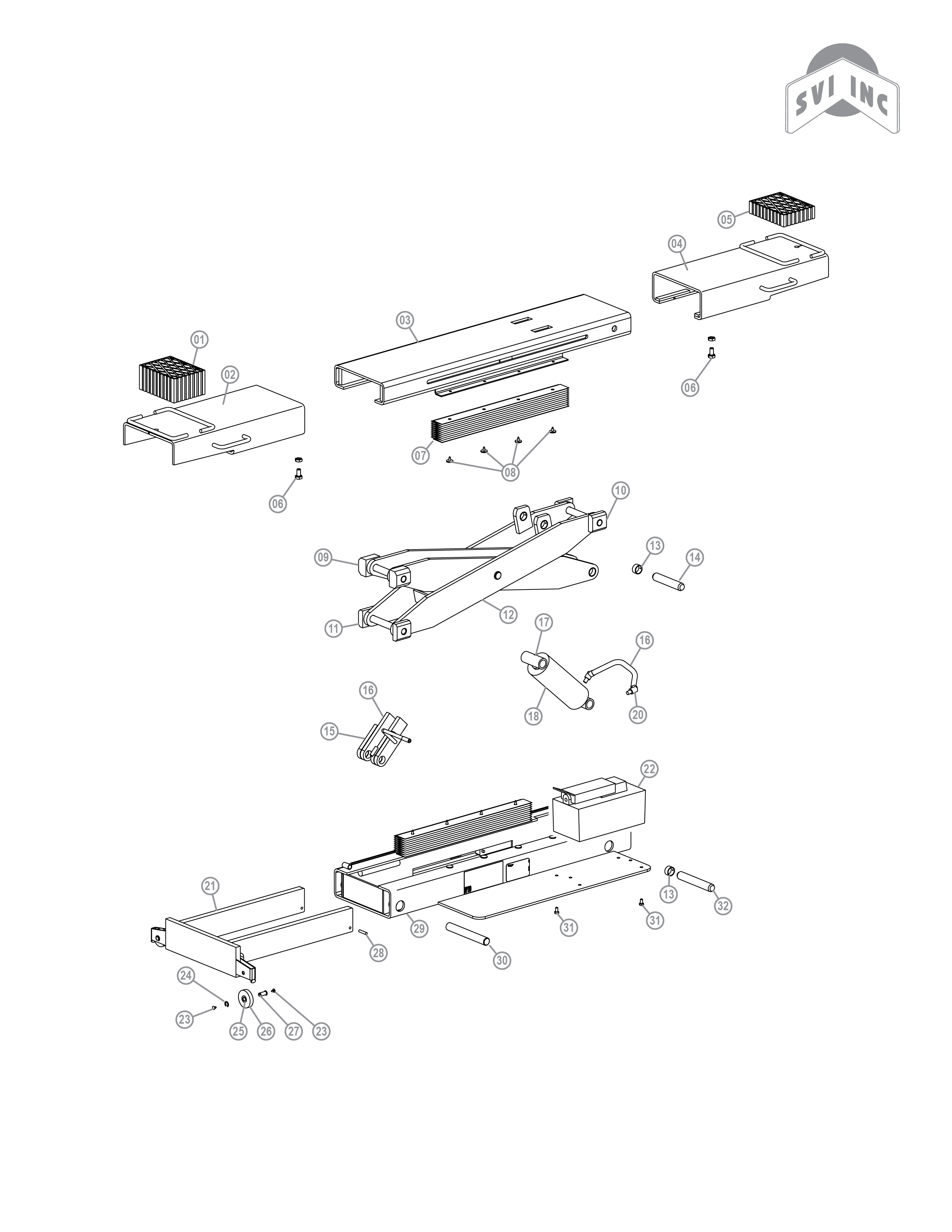

Click on the part number for more information

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
1- BH-9756-87 BH-9756-87 FJ2428 Auxilary Adapter (3" Tall Rubber)
5- BH-9756-86 BH-9756-86 FJ2427 Auxiliary Adapter (1-1/2" Tall Rubber)
6- BH-7531-21 BH-7531-21 FC576 Hex Head Cap Screw-Grade 2 Plated(3/8"-16NC x 5/8" Large)
7- BH-7525-27 BH-7525-27 FC5144-1 Bellows
8- BH-7525-87 BH-7525-87 FC5185-69 Pinetree Retainer
9- BH-7525-85 BH-7525-85 FC5185-67 Wide Slider
10- BH-7525-86 BH-7525-86 FC5185-68 Narrow Slider
11a- BH-9756-86-4 BH-9756-86-4 FJ2439 1-1/2" Rubber Adapter Pad (Set of 4)
11- BH-7525-86 BH-7525-86 FC5185-68 Narrow Tall Slider
12a- BH-9756-87-4 BH-9756-87-4 FJ2440 3" Rubber Adapter Pad (4 Pack)
13- BH-7530-78 BH-7530-78 FC5818-40 Sleeve Bearing
18- BH-7531-84 BH-7531-84 FC5818-18 Hydraulic Cylinder
19- BH-7516-70 BH-7516-70 FC5657-4 Hose
20- BH-7516-24E BH-7516-24E FC5185-45 Elbow Adapter
21- BH-7545-71 BH-7545-71 SB300046 Telescoping End Weld
22- BH-7544-98 BH-7544-98 FC5965Z Pump
23- BH-7544-75 BH-7544-75 SB700001 Bumper
24- BH-7544-74 BH-7544-74 SB700002 Wheel Clip
25- BH-7544-76A BH-7544-76A SB700003 Wheel Bearing Cylinder
26- BH-7544-73 BH-7544-73 SB700005 Urethane Wheel
27- BH-7544-76 BH-7544-76 SB700004 Wheel Pin
32- BH-7531-86 BH-7531-86 FC5818-32 Cylinder Pin (Lower)
2- Call For Details — Sliding Adapter (Left)
3- Call For Details — Top Channel Weldment
4- Call For Details — Sliding Adapter (Right)
12- Call For Details — Link Weld
14- Call For Details — Cylinder Pin (Upper)
15- Call For Details — Short Dog Weldment
16- Call For Details — Long Dog Weldment
17- Call For Details — Set Screw (1/4"-20NC)
28- Call For Details — Roll Pin (1/4" x 1"Large)
29- Call For Details — Bottom Channel Weldment
30- Call For Details — Pin
31- Call For Details — Hex Head Cap Screw (M8 1.25mm x 14mm Lg.)
