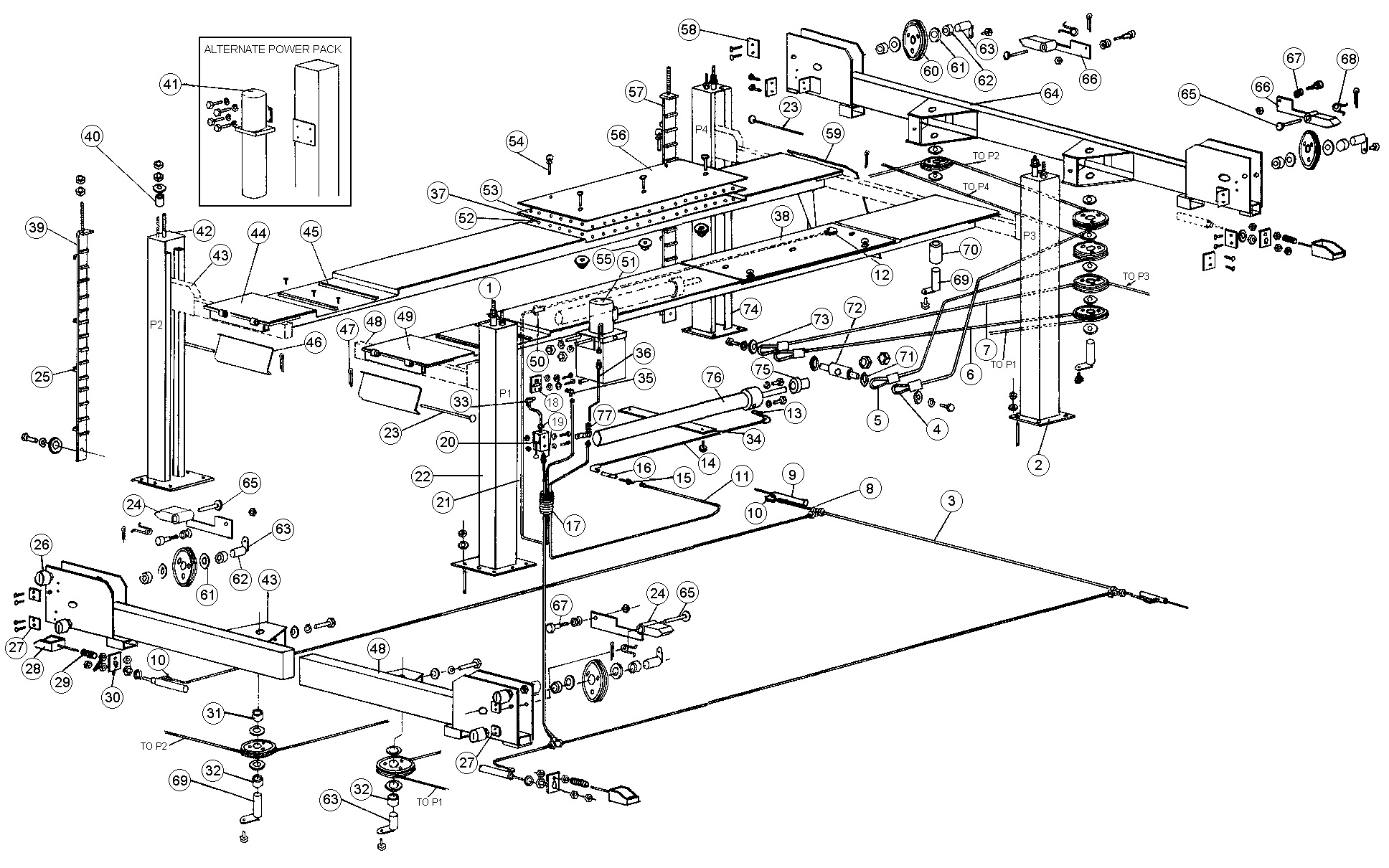

Click on the part number for more information

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
-- BH-7069-K BH-7069-K SVI Exclusive Power Station (for 4-Post Lift)
4- BH-7289-24 BH-7289-24 79581 Cable 384” Lg
5- BH-7289-26 BH-7289-26 79583 Cable 205” Lg
6- BH-7289-23 BH-7289-23 79580 Cable 320” Lg
7- BH-7289-25 BH-7289-25 79582 Cable 148” Lg
9- BH-7289-09 BH-7289-09 78830 Safety Release Air Cylinder
26- BH-7801-88 BH-7801-88 78625 Bearing Front Beam
27- BH-7289-00 BH-7289-00 78635 Front Wear Block
28- BH-7289-15 BH-7289-15 78850 Safety Lock Weldment Assy
29- BH-7288-98 BH-7288-98 78628 Safety Return Spring
31- BH-7289-12 BH-7289-12 78842 Pulley Spacer
32- BH-7289-11 BH-7289-11 78841 Pulley Spacer
58- BH-7289-08 BH-7289-08 78825 Wear Block
60- BH-7285-11 BH-7285-11 28032 Cable Pulley Assembly
60a- BH-7285-11B BH-7285-11B 28032x Cable Sheave/Pulley Bushing 1.753" OD
61- BH-7285-12 BH-7285-12 28006 Nylon Thrust Washer
62- BH-7288-99 BH-7288-99 78630 Spacer for Pulley
63- BH-7289-13 BH-7289-13 78843 Short Pulley Pin
67- BH-7289-92 BH-7289-92 99061 Cable Roller
69- BH-7289-14 BH-7289-14 78844 Pulley Pin Weldment
1- BH-7293-51
(Call For Details) 		68047 Instruction Plate
2- BH-7289-94
(Call For Details) 		99099 Post Assembly P3
3- BH-7293-52
(Call For Details) 		96020 60’, 1/4 Poly Tube
8- BH-7293-06
(Call For Details) 		68101 1/4 Poly Tee Fitting
10- BH-7293-04
(Call For Details) 		68117 90° Elbow Fitting 1/8 NPT
11- BH-7293-02
(Call For Details) 		68113 Hyd Line Fitting 1/4 ID
12- BH-7286-03
(Call For Details) 		27056 90° Fitting 1/4 NPT-3/8 Pipe
13- Call For Details — Orifice/Fitting
14- BH-7293-05
(Call For Details) 		78004 Steel Hyd Line 3/8 JIC X 68”
15- BH-7293-01
(Call For Details) 		68119 Fitting Adptr 1/4 NPT-1/4 JIC
16- BH-7293-03
(Call For Details) 		78470 Connector
17- BH-7293-19
(Call For Details) 		68118 Spring Guard Plastic
18- BH-7288-45
(Call For Details) 		68160 Water Trap/Oiler Set 4 Post
19- BH-7293-53
(Call For Details) 		68110 Fitting 1/8 NPT-1/4 Poly Tube
20- BH-7293-18
(Call For Details) 		68111 Fitting Air Valve
21- BH-7292-98
(Call For Details) 		68112 Fitting Air Line 1/4 ID
22- BH-7288-81
(Call For Details) 		78190 P1 Power Post Assembly
23- BH-7288-91
(Call For Details) 		78550 Cross Shaft Pin
24- BH-7293-54
(Call For Details) 		78680 Dead Drop Lock Front Assy
25- BH-7288-88
(Call For Details) 		78356 Sponge Pad Backing
30- BH-7289-10
(Call For Details) 		78840 Safety Release Pull Tab
33- BH-7293-17
(Call For Details) 		68104 90° Elbow 1/4 NPT-1/4 Poly
34- BH-7288-89
(Call For Details) 		78475 Retaining Strap for Cylinder
35- BH-7293-14
(Call For Details) 		68109 90° Elbow 1/4 NPT-1/4 JIC
36- BH-7293-15
(Call For Details) 		68115 Steel Hyd Line 3/8 JIC
37- BH-7293-55
(Call For Details) 		99009 Replaceable Wear Plate
38- BH-7293-56
(Call For Details) 		78463 3/8” Tube X 119” Lg
39- BH-7288-87
(Call For Details) 		78350 Front Leveling Ladder
40- BH-7289-93
(Call For Details) 		99087 Tube Cable Spacer
41- BH-7291-59
(Call For Details) 		48200 Power Unit 220V 1PH 60CY
42- BH-7288-79
(Call For Details) 		78145 P2 Post Assembly
43- BH-7293-57
(Call For Details) 		99650 RF Cross Member Assembly
44- BH-7293-49
(Call For Details) 		78002 RH Ramp Assembly
45- Call For Details — Plate Locator
46- BH-7288-90
(Call For Details) 		78500 Front Wheel Stop Weldment
47- BH-7292-88
(Call For Details) 		28498 3/32” Dia 1” Lg Cotter Pin
48- BH-7289-98
(Call For Details) 		99600 CrossMember LF Open Beam
49- BH-7293-50
(Call For Details) 		78001 LH Ramp Assembly
50- BH-7293-59
(Call For Details) 		9000.059 Street Elbow
51- BH-7293-60
(Call For Details) 		98200 Hyd Power Unit Assy 220V
52- BH-7289-90
(Call For Details) 		99020 Chrome Ball 12000 9/16”
53- Call For Details — Rear SP Race Plate
54- BH-7288-09
(Call For Details) 		58077 Quick Release Lock Pin
55- BH-7293-67
(Call For Details) 		78003 Slip Plate Nut/Washer
56- Call For Details — Slip Plate Top FP 58
57- BH-7288-86
(Call For Details) 		78300 Rear Leveling Ladder
59- BH-7287-78
(Call For Details) 		46 Drive Through Ramps
64- BH-7290-00
(Call For Details) 		99800 Rear Traverse Beam Assembly
65- BH-7292-22
(Call For Details) 		78846 Dead Drop Pin Assembly
66- BH-7289-07
(Call For Details) 		78820 Dead Drop Lock Assembly
68- Call For Details — Dead Lock Spring
70- BH-7289-06
(Call For Details) 		78811 Pulley Spacer Tube
71- BH-7292-27
(Call For Details) 		78935 Washer Cable Retainer Inner
72- BH-7289-20
(Call For Details) 		78932 Cylinder Trunion
73- BH-7292-26
(Call For Details) 		78930 Washer Cable Retainer Outer
74- BH-7293-61
(Call For Details) 		99150 P4 Post Assembly
75- BH-7289-22
(Call For Details) 		78940 Trunion Spacer for Cylinder
76- BH-7290-06
(Call For Details) 		99950 Hydraulic Cylinder
77- BH-7293-62
(Call For Details) 		68120 Fitting Hose Tube
