Click on the part number for more information

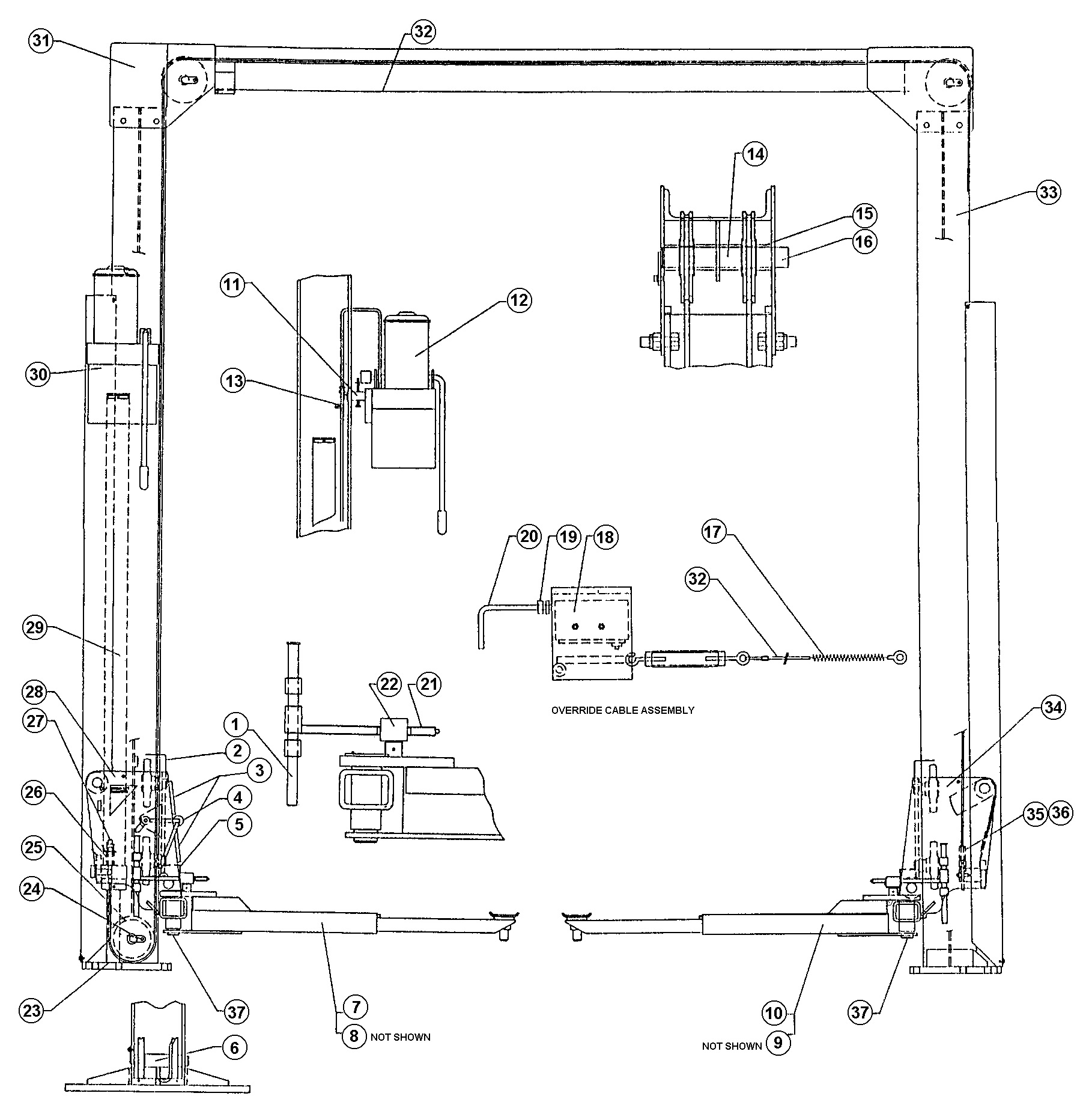

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
-- BH-7070-K BH-7070-K SVI Exclusive Power Station (for 2-Post Lift)
2- BH-7286-95 BH-7286-95 28178 Top Guard
5- BH-7286-96 BH-7286-96 28179 Bottom Roller Guard
16- BH-7287-44 BH-7287-44 29092 Pivot Pin Top Beam Pulley
17- BH-7285-84 BH-7285-84 28053 Spring
18- BH-7290-08 BH-7290-08 28144 Microswitch
24- BH-7286-61 BH-7286-61 28065 Pivot Pin
25- BH-7285-11 BH-7285-11 28032 Cable Pulley Assembly
25a- BH-7285-11B BH-7285-11B 28032x Cable Sheave/Pulley Bushing 1.753" OD
27- BH-7285-53 BH-7285-53 25109 Cable Assembly
35- BH-7292-87 BH-7292-87 28110 Clevis Pin
37- BH-7286-66 BH-7286-66 28088 Pivot Pin Assy
1- BH-7286-23
(Call For Details) 		27825 Weldment Release Shaft
3- BH-7287-00
(Call For Details) 		28189 Door Guard 10 LG Rubber
4- BH-7285-79
(Call For Details) 		26189 Door Guard 5 LG Rubber
6- BH-7286-46
(Call For Details) 		28031 Spacer Pulley Power Column
7- BH-7287-67
(Call For Details) 		31650 LH Rear Arm 59 LG
8- BH-7287-69
(Call For Details) 		31680 LH Front Asymmetrical Arm
9- BH-7287-70
(Call For Details) 		31690 RH Front Asymmetrical Arm
10- BH-7287-68
(Call For Details) 		31665 RH Rear Arm 59 LG
11- BH-7292-78
(Call For Details) 		27160 Spacer Power Pack
12- BH-7292-79
(Call For Details) 		29200 Power Pack
13- BH-7286-75
(Call For Details) 		28108 Tube Clip
14- BH-7287-44A
(Call For Details) 		29094 Spacer 3-1/2 Lg
15- BH-7292-80
(Call For Details) 		29095 Spacer 1-1/8 Lg
19- BH-7287-04
(Call For Details) 		28199 Liquittite Connector
20- BH-7292-81
(Call For Details) 		29096 Electrical Wire
21- BH-7286-21
(Call For Details) 		27800 Locking Bracket Assembly
22- BH-7286-24
(Call For Details) 		27850 Swivel Bracket Assembly
23- BH-7292-82
(Call For Details) 		25002 Power Column (28 ACF)
23- BH-7292-83
(Call For Details) 		29017 Power Column (29 ACF)
26- BH-7286-65
(Call For Details) 		28087 Cable Spacer
28- BH-7286-33
(Call For Details) 		28004 Power Carriage Assembly
29- BH-7285-50
(Call For Details) 		25003 Hydraulic Cylinder Assembly
30- BH-7286-09
(Call For Details) 		27150 Long Column Guard
31- BH-7292-84
(Call For Details) 		25801 Top Beam Assembly
32- BH-7292-85
(Call For Details) 		25301 Override Cable Assembly
33- BH-7292-86
(Call For Details) 		25035 Slave Column (28 ACF)
33- Call For Details — Slave Column (29 ACF)
34- BH-7287-34
(Call For Details) 		29025 Slave Carriage Assembly
36- BH-7292-88
(Call For Details) 		28498 Cotter Pin
