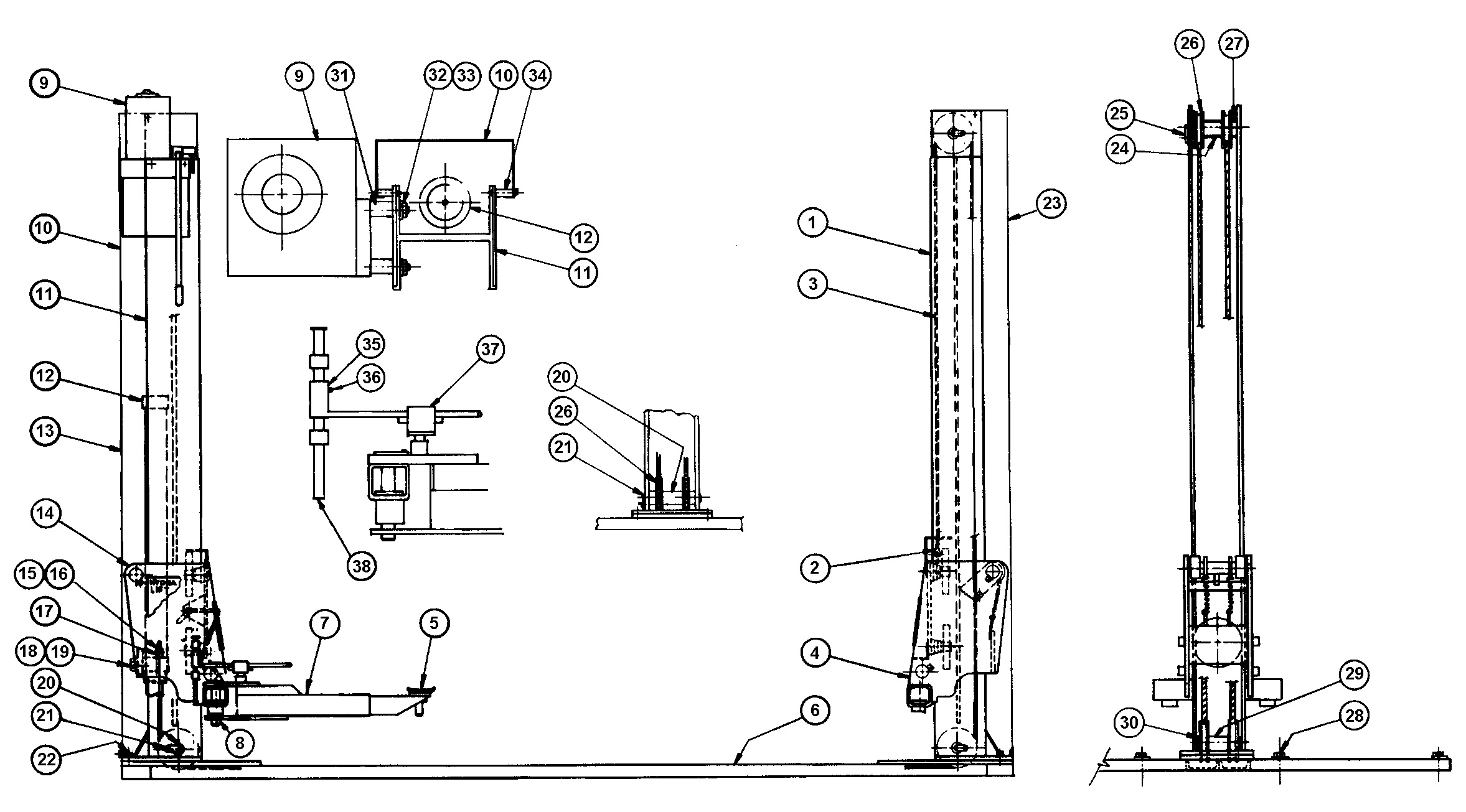

ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
ITEM IMAGE PART NO OEM Number(s) DESCRIPTION
3- BH-7285-03 BH-7285-03 28109 Cable Assembly
5- BH-7287-02 BH-7287-02 28191 Low Profile Pad
8- BH-7286-66 BH-7286-66 28088 Pivot Pin Lift Arm
21- BH-7286-61 BH-7286-61 28065 Pivot Pin
25- BH-7286-61 BH-7286-61 28065 Pivot Pin
26- BH-7285-11 BH-7285-11 28032 Sheave
1- BH-7286-57
(Call For Details) 		28060 Slave Column
1- BH-7292-58
(Call For Details) 		27060 Slave Column (27BP)
2- BH-7292-59
(Call For Details) 		28110 Clevis Pin-Cable
4- BH-7286-51
(Call For Details) 		28049 Slave Carriage Assembly
6- BH-7286-63
(Call For Details) 		28076 Base Weldment
7- BH-7286-81
(Call For Details) 		28134 Arm Assembly
7- BH-7286-81
(Call For Details) 		28134 Arm Assy Right (1 only 27BP)
7- BH-7286-82
(Call For Details) 		28135 Arm Assy Left (1 only 27BP)
9- BH-7292-60
(Call For Details) 		28200 Power Pack
10- BH-7286-09
(Call For Details) 		27150 Shroud
11- BH-7286-50
(Call For Details) 		28038 Power Carriage Assembly
11- BH-7292-91
(Call For Details) 		27038 Power Carriage Assembly (27BP)
12- Call For Details — Hydraulic Ram Assembly 1-Stage
12- BH-7285-45
(Call For Details) 		24003 Cylinder Assembly (27BP)
14- BH-7286-33
(Call For Details) 		28004 Power Carriage Assembly
14- BH-7292-62
(Call For Details) 		27003 Power Carriage Assembly (27BP)
15- Call For Details — 5/8” ID Flat Washer SAE
16- Call For Details — Cable Nut 5/8 UNF
17- BH-7286-65
(Call For Details) 		28087 Cable Spacer Tube
18- Call For Details — 1/8 NC X 1-3/4 Hex Bolt
18- Call For Details — 3/4” UNC x 1-1/2” HB (27BP)
19- Call For Details — I ID Lock Washer
20- BH-7286-46
(Call For Details) 		28031 Power Column Pulley Spacer
22- Call For Details — 5/8-11 x 1-1/2” Hex Bolt
22- Call For Details — 5/8” UNC x 2” HB (27BP)
23- BH-7286-09
(Call For Details) 		27150 Shroud
24- BH-7287-44A
(Call For Details) 		28033 Spacer - Slave Column Only
27- BH-7286-77
(Call For Details) 		28114 Spacer - Outer-Slave Top Only
28- BH-7286-78
(Call For Details) 		28115 Lag Bolts
28- Call For Details — 3/4” x 5-1/2” Lag Bolt (27BP)
29- BH-7287-44A
(Call For Details) 		28033 Spacer - Slave Column Only
30- BH-7286-79
(Call For Details) 		28117 Spacer - Slave - Outer Bottom
31- BH-7292-64
(Call For Details) 		27160 Spacer
32- Call For Details — 5/8 UNC Hex Nut-14 on 27BP
33- Call For Details — 5/8” ID Lock Washer
34- BH-7292-65
(Call For Details) 		27151 Spacer (Shroud)
35- BH-7286-21
(Call For Details) 		27800 Locking Bracket
36- BH-7292-66
(Call For Details) 		27810 Set Screw
37- BH-7286-24
(Call For Details) 		27850 Swivel Bracket
38- Call For Details — Release Shaft
