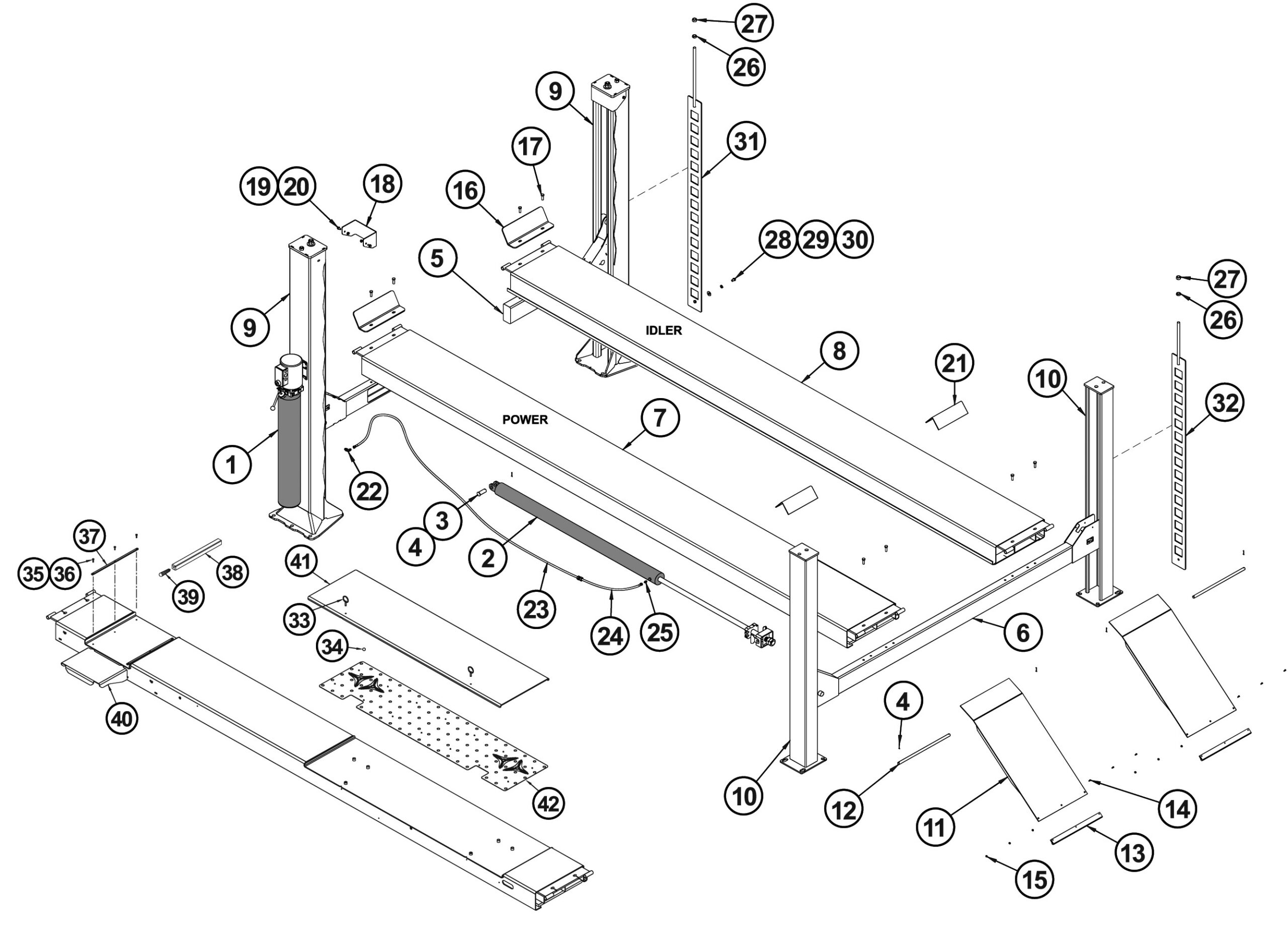

Overall Breakdown

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
---		BH-7069-K	SVI Exclusive	Power Station (for 4-Post Lift)
2-		BH-7235-550	40611	Hydraulic Cylinder
3-		BH-7234-402	40082	Clevis Pin
7-		BH-7525-69	40681	Flat Deck Power Runway Weld (4015EFO)
16-		BH-7233-175	40266	Wheel Stop
23-		BH-7231-13	40349	Hydraulic Hose
24-		BH-7231-1000	39101-048	Hydraulic Hose Extension - 4 ft.
1-		Call For Details	—	Power Unit 1 Phase, 60Hz, 208-230VAC
1-		Call For Details	—	Power Unit 3 Phase, 230/460VAC
4-		Call For Details	—	Cotter Pin
5-		Call For Details	—	Front Power Cross Beam Assembly
5-		Call For Details	—	Front Idler Cross Beam Assembly
6-		Call For Details	—	Rear Cross Beam Assembly
7-		Call For Details	—	Flat Deck Power Runway Weld (4015XFO)
7-		Call For Details	—	Alignment Power Runway Weld (4015XAO)
7-		Call For Details	—	Alignment Power Runway Weld (4015EAO)
8-		Call For Details	—	Flat Deck Idler Runway Weld (4015XFO)
8-		Call For Details	—	Flat Deck Idler Runway Weld (4015EFO)
8-		Call For Details	—	Alignment Idler Runway Weld (4015XAO)
8-		Call For Details	—	Alignment Idler Runway Weld (4015EAO)
9-		Call For Details	—	Front Column Assembly
10-		Call For Details	—	Rear Column Assembly
11-		Call For Details	—	Entrance Ramp
12-		BH-7235-570 (Call For Details)	40165	Ramp Hinge Pin
13-		BH-7235-569 (Call For Details)	40168	Ramp Slide
14-		Call For Details	—	1/4"-20NC x 3/4" Long Pan Head Screw
15-		Call For Details	—	1/4"-20NC Hex Flange Nut
17-		Call For Details	—	M12 x 35 mm Lg Hex Flg. HD Capscrew
18-		Call For Details	—	Column Shroud
19-		Call For Details	—	3/8"-16NC x 3/4 Hex Flange Head Capscrew
20-		Call For Details	—	3/8"-16NC Hex Flange Nut
21-		Call For Details	—	Wheel Chock
22-		BH-7233-1135 (Call For Details)	16167	90° Adapter Elbow
24-		BH-7235-571 (Call For Details)	39101-024	Hydraulic Hose Extension - 2 ft.
25-		Call For Details	—	45° Elbow
26-		Call For Details	—	3/4"-10NC Hex Jam Nut
27-		Call For Details	—	3/4"-10NC Hex Nut
28-		Call For Details	—	1/2"-13NC x 3/4" Hex Head Cap Screw
29-		Call For Details	—	1/2" Lock Washer
30-		Call For Details	—	1/2" Flat Washer
31-		Call For Details	—	Ladder Weld (Open End)
32-		Call For Details	—	Ladder Weld (Closed End)
33-		Call For Details	—	Pin Assembly
34-		BH-7233-263 (Call For Details)	40211	3/4" Dia. Ball
35-		Call For Details	—	Socket Head Cap Screw
36-		Call For Details	—	#10-24 Hex Lock Nut
37-		Call For Details	—	Guide Bar
38-		Call For Details	—	Drop-In Spacer
39-		Call For Details	—	Handle
40-		Call For Details	—	Work Step
41-		Call For Details	—	Rear Slip Plate Weldment
42-		Call For Details	—	Ball Retainer Assembly

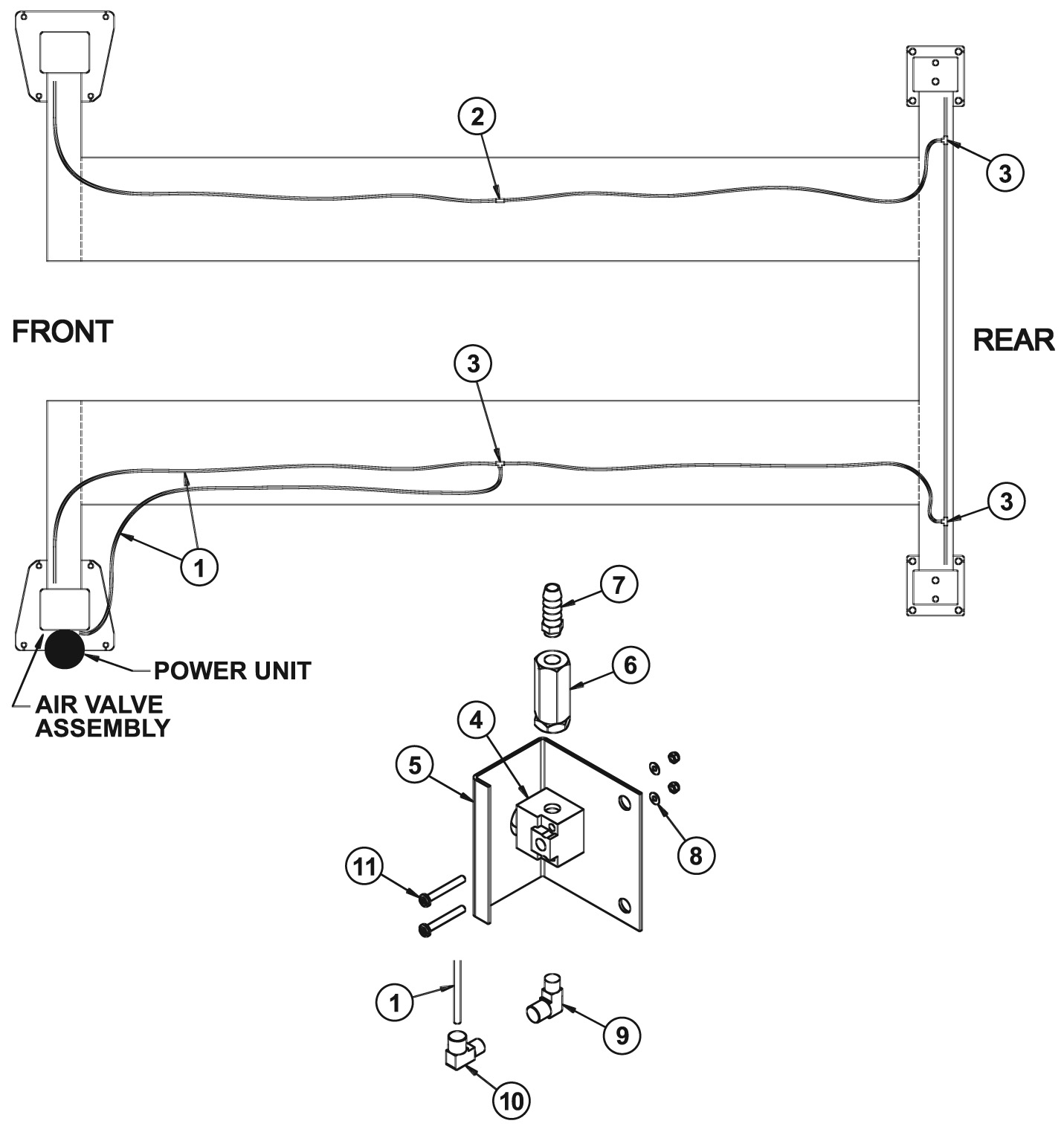

Air Lock Release

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
4-		BH-7228-73	37016	Lock Release Air Valve Switch
5-		BH-7229-87	37015	Valve Bracket
7-		BH-7229-89	37021	Hose Barb
9-		BH-7229-88	37020	90° Elbow
10-		BH-7228-78	B37019	Push Lock 90° Elbow
1-		BH-7233-1152 (Call For Details)	B00901	4mm dia. Plastic Air Line
2-		Call For Details	—	4mm Straight Union
3-		BH-7228-77B (Call For Details)	B37032	4mm Union Tee
6-		Call For Details	—	Hex Jam Nut
8-		Call For Details	—	Lock Washer
11-		Call For Details	—	Pan Hd. Screw
12-		BH-7233-1162 (Call For Details)	40091	In-Line Air Filter

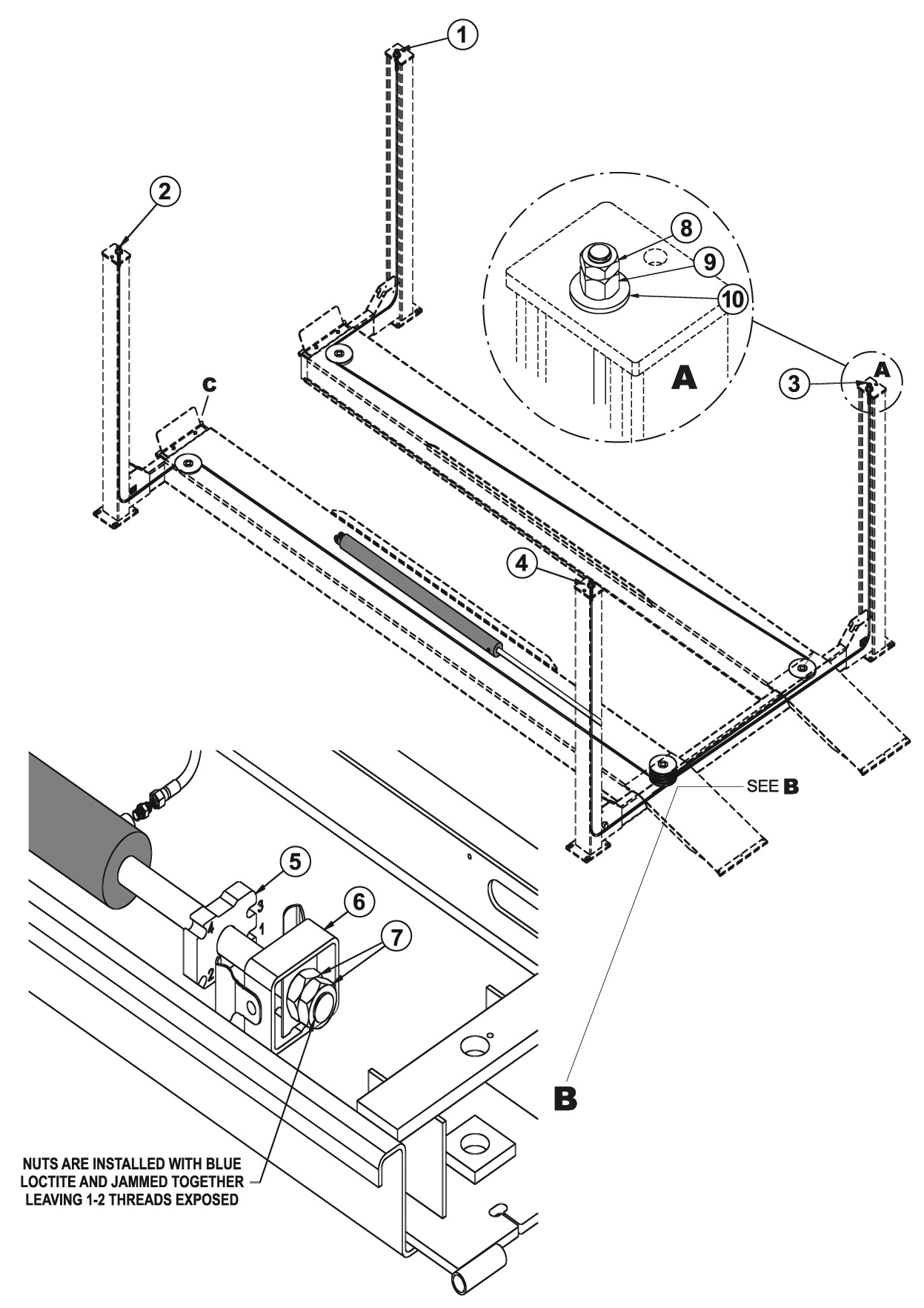

Cables

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
1-		BH-7234-130	40672-X1-0	Right Front Cable # 1 (4015X)
1-		BH-7234-131	40672-E1-0	Right Front Cable # 1 (4015E)
2-		BH-7234-132	40672-X2-0	Left Front Cable # 2 (4015X)
2-		BH-7234-133	40672-E2-0	Left Front Cable # 2 (4015E)
3-		BH-7234-134	40672-3	Right Rear Cable # 3
4-		BH-7234-135	40672-4	Left Rear Cable # 4
5-		Call For Details	—	Cable Pull Bar
6-		Call For Details	—	Cable Retainer Weld
7-		Call For Details	—	1-3/8-12NF Jam Nut
8-		Call For Details	—	7/8-9NC Hex Jam Nut
9-		Call For Details	—	7/8-9NC Hex Nut
10-		Call For Details	—	7/8 Flat Washer

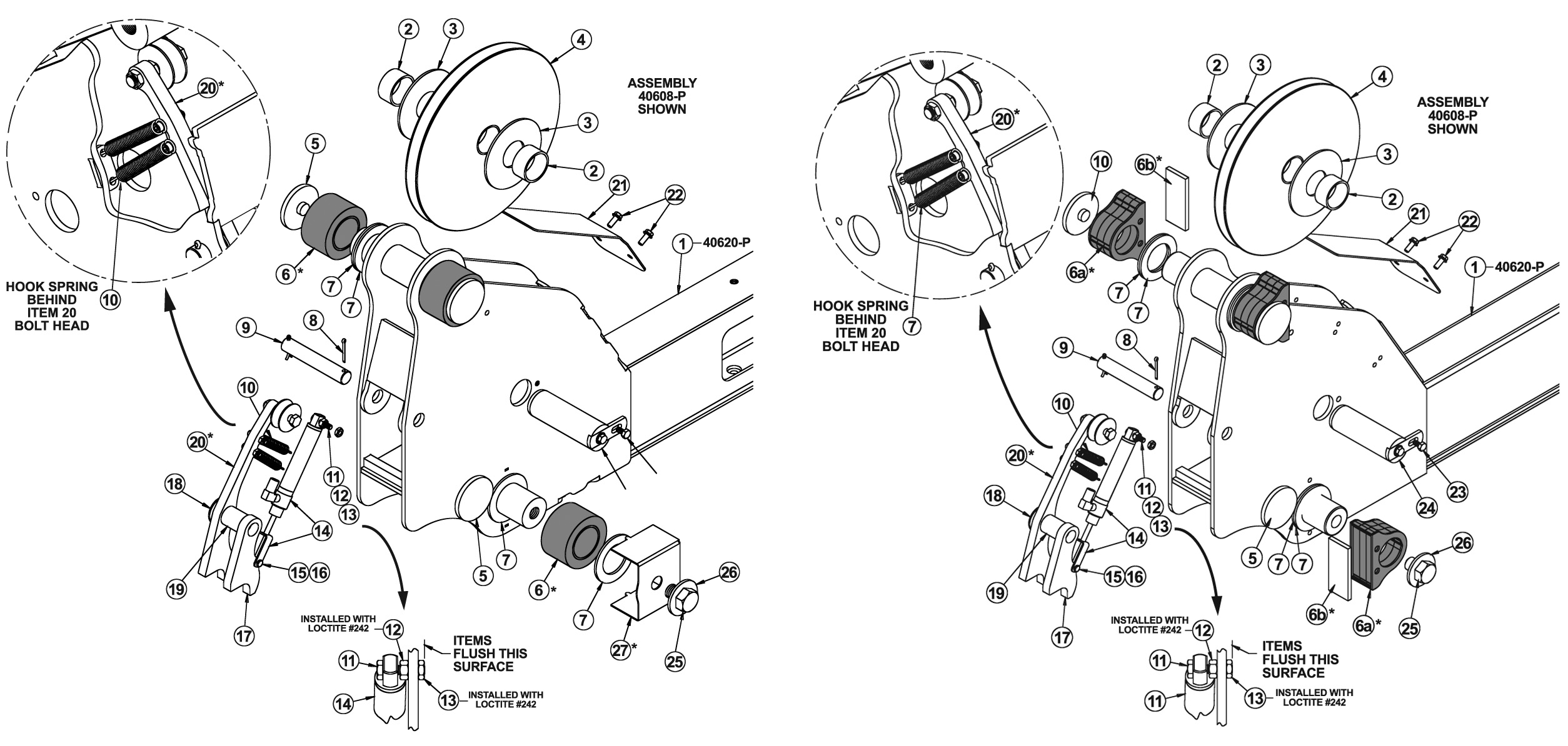

Front Cross Beam

Click on the part number for more information

ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ITEM	IMAGE	PART NO	OEM Number(s)	DESCRIPTION
ALT*-		BH-7233-85K	40430W-KIT	Slider Block Conversion Kit (Includes 8 each of 6a Block Holder and 6b Slider Block)
KIT-		BH-7233-85K	40430W-KIT	Slider Block Conversion Kit for 4015; Includes (8) Block Holders with Slider Blocks
---		BH-7233-85	40430W	Block Holder (1)
---		BH-7233-86	40430W-3	Slider Block (1)
2-		BH-7233-188	40438-X	Sheave Spacer Bushing (Cross Beam)
3-		BH-7232-76	40053	1/8" Thick Bearing
4-		BH-7234-419	B40650	Sheave
6*-		BH-7233-67	40430	Roller Wheel Assembly
6a*-		BH-7233-85	40430W	Block Holder
6b*-		BH-7233-86	40430W-3	Slider Block
7-		BH-7233-66	40426	Thrust Bearing
10-		BH-7234-399	40139	Extension Spring
14-		BH-7234-410	40141	Air Cylinder Assembly
20*-		BH-7233-87	40447	Slack Lock Pawl Assembly
24-		BH-7234-404	B40116	Sheave Pin (Cross Beam)
24-		BH-7234-404G	B40116-x	Greaseable Sheave Pin
27*-		BH-7233-213	40435	Roller Cover
1-		Call For Details	—	Cross Beam Weld (Power Side)
1-		Call For Details	—	Cross Beam Weld (Idler Side)
5-		Call For Details	—	Wear Button
8-		Call For Details	—	1/8" x 1-1/2" Lg. Cotter Pin
9-		Call For Details	—	Lock Pivot Pin
11-		Call For Details	—	1/4-28NF x 1-1/16" Lg. Hex Head Bolt
12-		Call For Details	—	1/4-28NF Hex Nut
13-		Call For Details	—	1/4-28NF Hex Jam Nut
15-		Call For Details	—	Clevis Pin
16-		Call For Details	—	Hair Pin Cotter Pin
17-		BH-7235-572 (Call For Details)	40625	Primary Lock Pawl
18-		Call For Details	—	3/4" Washer (1.5 O.D. x .13 Thick Nominal)
19-		BH-7235-567 (Call For Details)	40132	Spacer Bushing
20*-		Call For Details	—	Slack Lock Assembly
21-		BH-7235-568 (Call For Details)	40626	Metal Sheave Guard (Front)
22-		BH-7233-1150 (Call For Details)	40120	1/4-20NC x 1/2" Lg. Self Tapping Screw
23-		Call For Details	—	M8 x 16mm Lg. Hex Locking Flange Head Cap Screw
25-		Call For Details	—	3/4-10NC x 1" Lg. Hex Head Bolt
26-		Call For Details	—	3/4" Plain Washer (13/16 I.D. x 2" O.D.)
